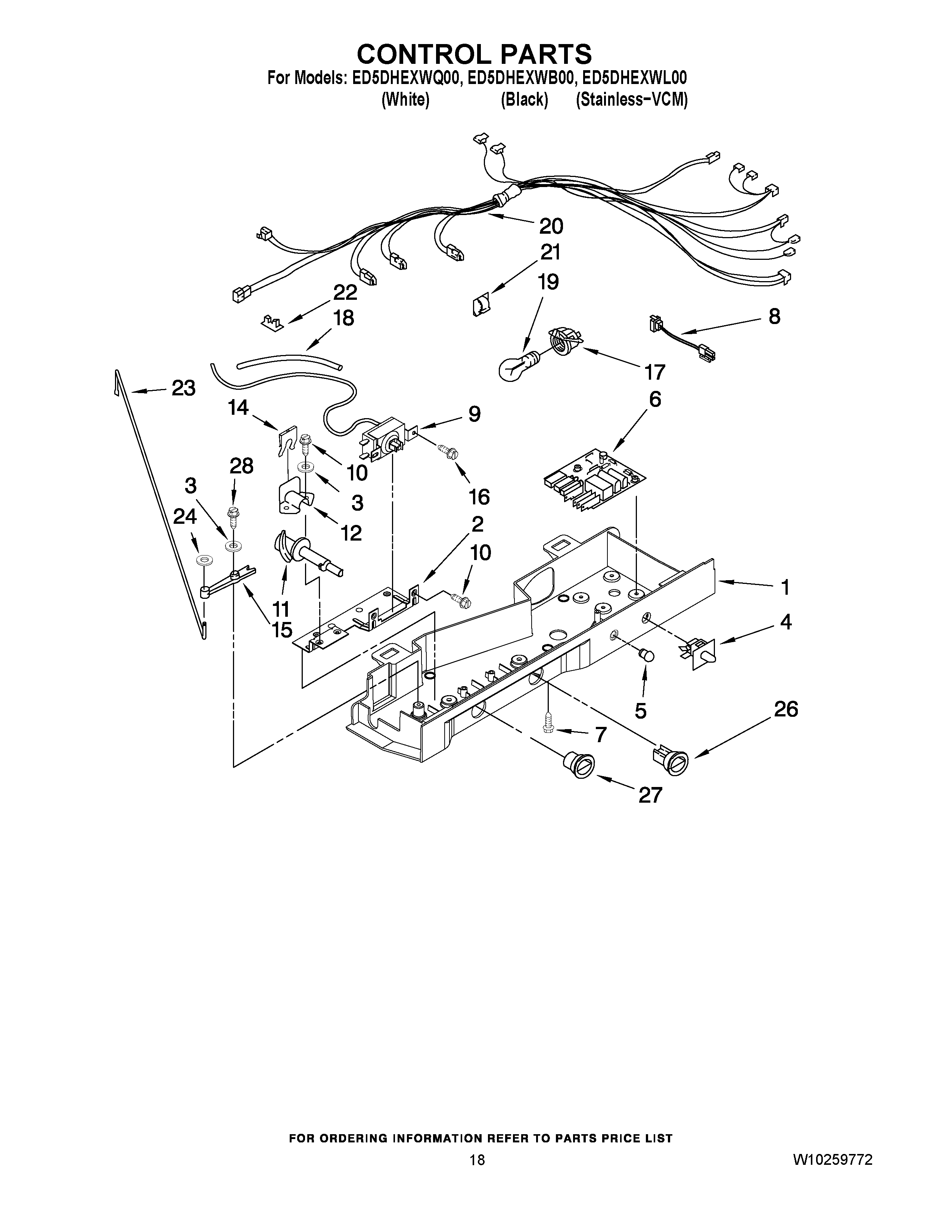

ED5DHEXWB00 11 – CONTROL PARTS

Products

Position	Product
1	W10159858 Whirlpool Refrigerator Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	489203 Whirlpool Refrigerator Washer
4	WP2149705 Whirlpool Refrigerator Door Switch
5	COVER, LIGHT LENS
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	W10853646 Whirlpool Indicator Light
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP3196557 Whirlpool Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	WP965173 Whirlpool Dishwasher Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	WP2196003 Whirlpool Refrigerator Bar Riser
19	RANGE ONLY 40W 120V APPL BULB
20	2311632 Whirlpool Refrigerator Wire Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2311631 Whirlpool Refrigerator Rod
24	Fastener, Push-On
26	W10723843 Whirlpool Refrigerator Thermostat Knob
27	2311615 Whirlpool Refrigerator Knob
28	627068 Whirlpool Refrigerator Screw
