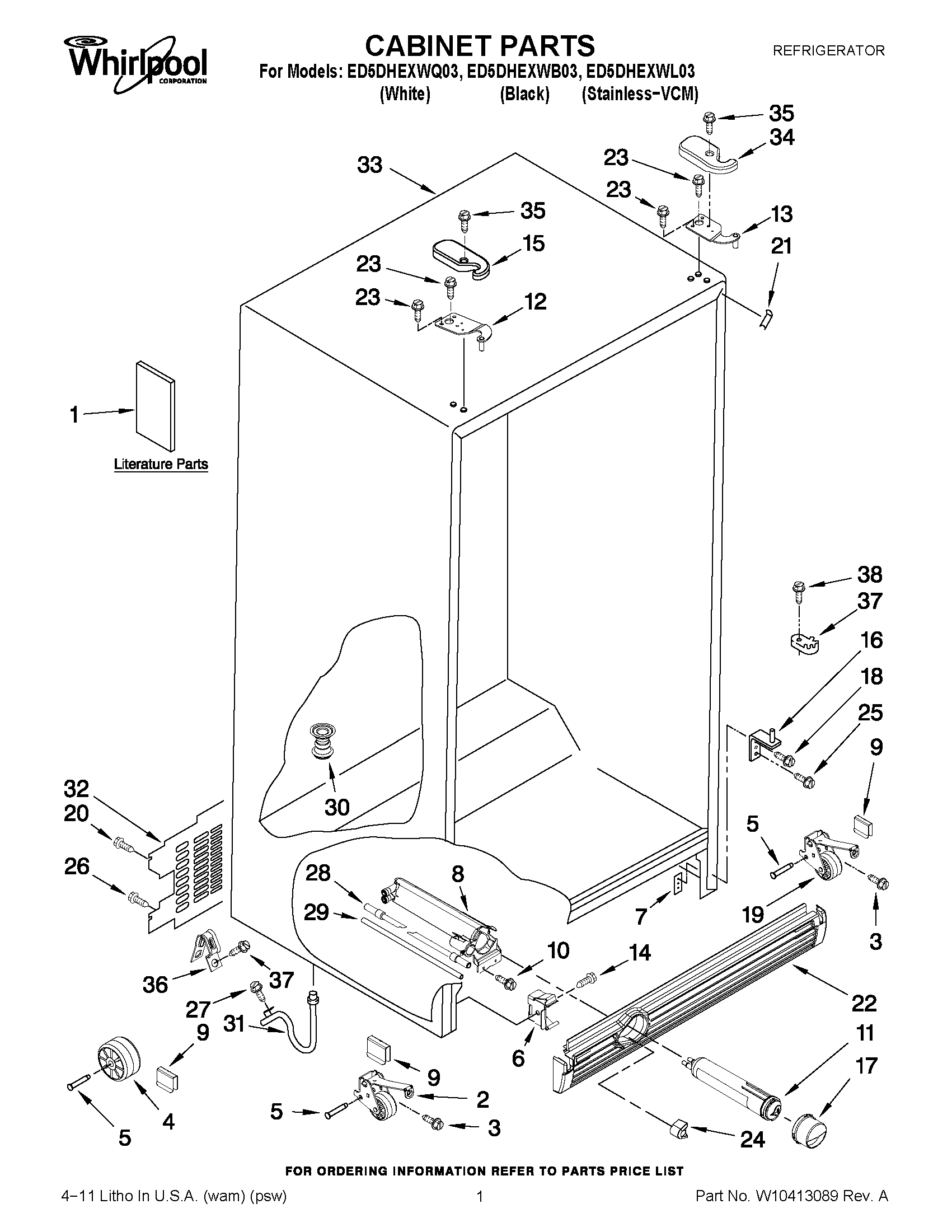

ED5DHEXWB03 01 – CABINET PARTS

ED5DHEXWB03 01 – CABINET PARTS

Written by

in

ED5DHEXWB03 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	INSTRUCTION SHEET (DOOR REMOVAL)
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	Energy Label
2	WPW10304660 Whirlpool Wheel Assembly
3	WP489427 Whirlpool Refrigerator Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2174706 Whirlpool Refrigerator Pin Hitch
10	WP489500 Whirlpool Refrigerator Screw
11	FILTER 3-SINGLE TEAL
12	HINGE TOP (FC)
13	HINGE TOP (RC)
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407W Whirlpool Refrigerator Cover
15	WP2203407B Whirlpool Refrigerator Cover
16	HINGE BOTTOM
17	WP2260518W Whirlpool Refrigerator Filter Cap
17	WP2260518B Whirlpool Water Filter Cap
18	WP489497 Whirlpool Screw
19	WPW10304659 Whirlpool Wheel Assembly
21	WPW10283959 Whirlpool Refrigerator Filler
21	W11252732 Whirlpool Refrigerator Filler
22	WPW10311033 Whirlpool Refrigerator Grille
22	WPW10311032 Whirlpool Refrigerator Grille
24	2260503W Whirlpool Refrigerator Button
24	WP2260503B Whirlpool Refrigerator Button
25	W10856122 Whirlpool Refrigerator Screw
26	WP488488 Whirlpool Refrigerator Screw
27	WP489464 Whirlpool Refrigerator Screw
28	TUBE, FILTER INLET
29	WPW10350006 Whirlpool Refrigerator Water Tube
30	W11566763 Whirlpool Fitting
31	W11512417 Whirlpool Drain Connector
32	WP2188755 Whirlpool Rear Panel
33	CABINET (NOT A SERVICEABLE PART)
34	WP2203408B Whirlpool Refrigerator Cover
34	WP2203408W Whirlpool Refrigerator Cover
35	WP8281227 Whirlpool Screw
36	549193 Whirlpool Refrigerator Power Clamp
37	WPW10329686 Whirlpool Door Cam Black
38	WP489483 Whirlpool Screw
