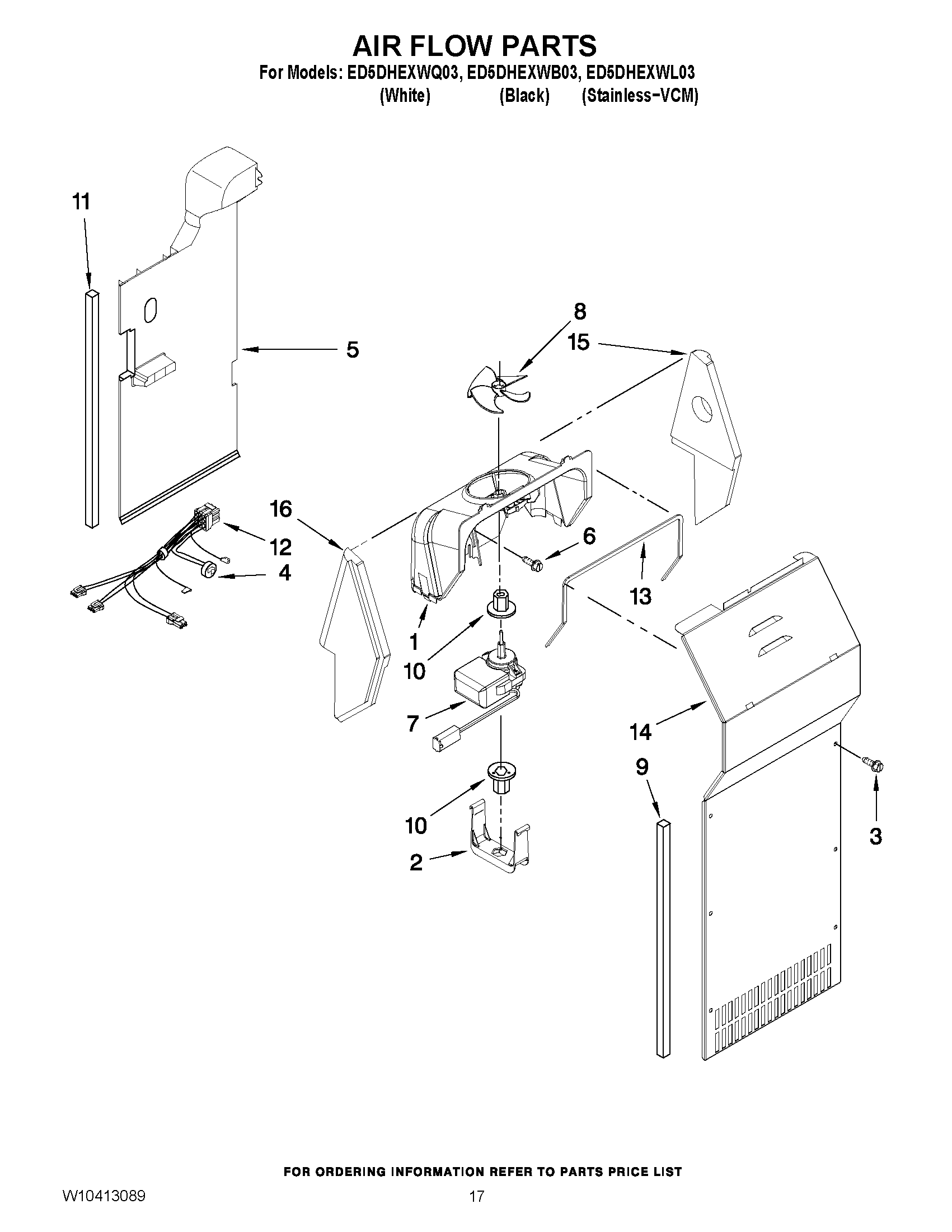

ED5DHEXWL03 10 – AIR FLOW PARTS

ED5DHEXWL03 10 – AIR FLOW PARTS

Written by

in

ED5DHEXWL03 10 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
34389654 Whirlpool Screw
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5W10756902 Whirlpool Refrigerator Air Duct
6WP489478 Whirlpool Refrigerator Screw
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
114388500 Whirlpool Refrigerator Gasket
12W11084324 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14Cover, Evaporator
154388358 Whirlpool Refrigerator Support Bracket
