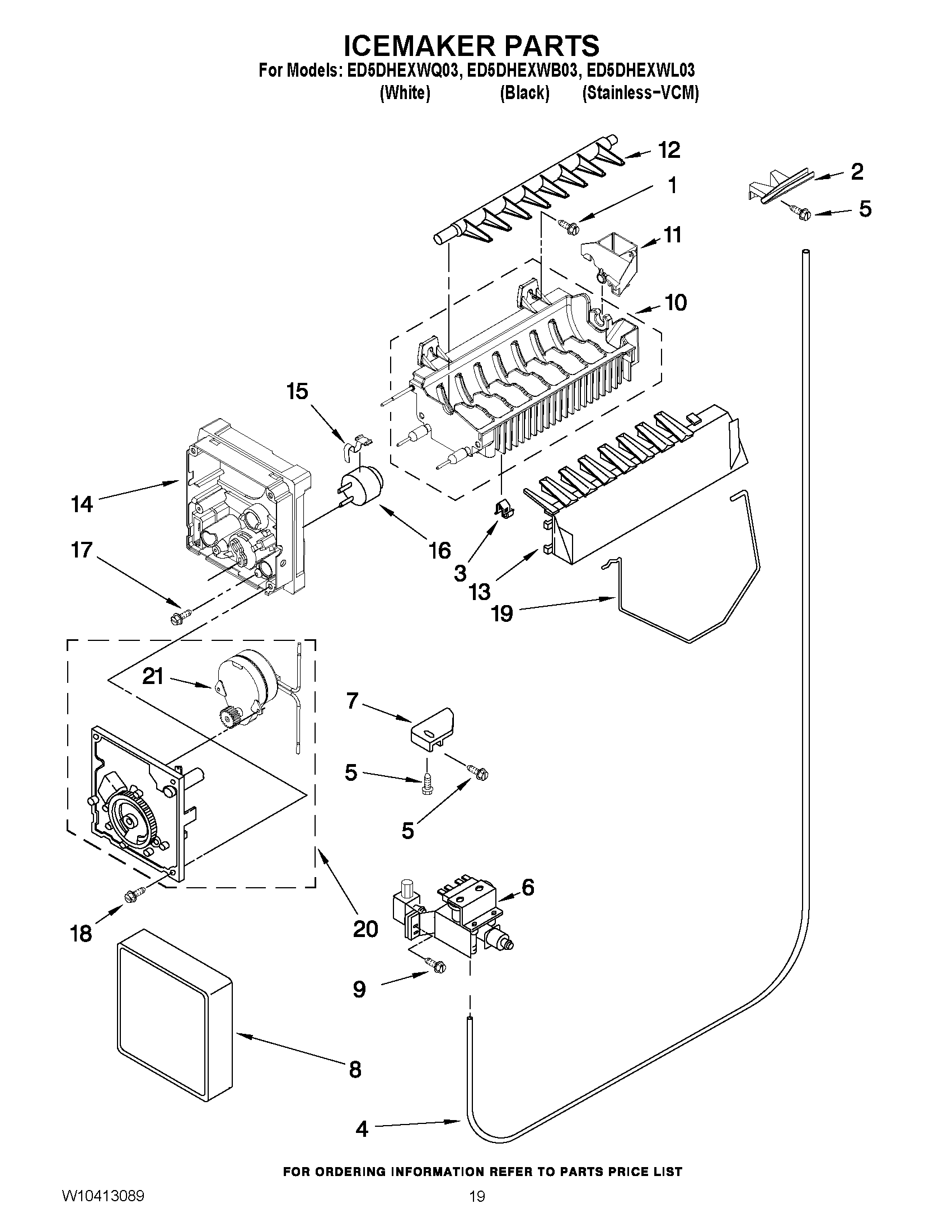

ED5DHEXWL03 12 – ICEMAKER PARTSadmin2025-04-26T11:08:16+00:00ED5DHEXWL03 12 – ICEMAKER PARTS ProductsPositionProduct1489136 Whirlpool Refrigerator Screw2W11505385 Whirlpool Refrigerator Chute3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5WP489478 Whirlpool Refrigerator Screw6W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit7W11500948 Whirlpool Refrigerator Bracket8WPW10289690 Whirlpool Ice Maker Cover9WPW10141625 Whirlpool Refrigerator Screw Assembly10WPW10190929 Whirlpool Refrigerator Ice Maker Mold11W10122561 Whirlpool Refrigerator Cup Fill12WP627843 Whirlpool Refrigerator Ejector Arm13WPW10122563 Whirlpool Refrigerator Stripper Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP627985 Whirlpool Icemaker Cycling Thermostat178533917 Whirlpool Refrigerator Screw18WP681249 Whirlpool Screw Assembly19W11342242 Whirlpool Refrigerator Ice Level Arm208201515 Whirlpool Refrigerator Motor and Gear Module Kit21CABINET (NOT A SERVICEABLE PART)100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
