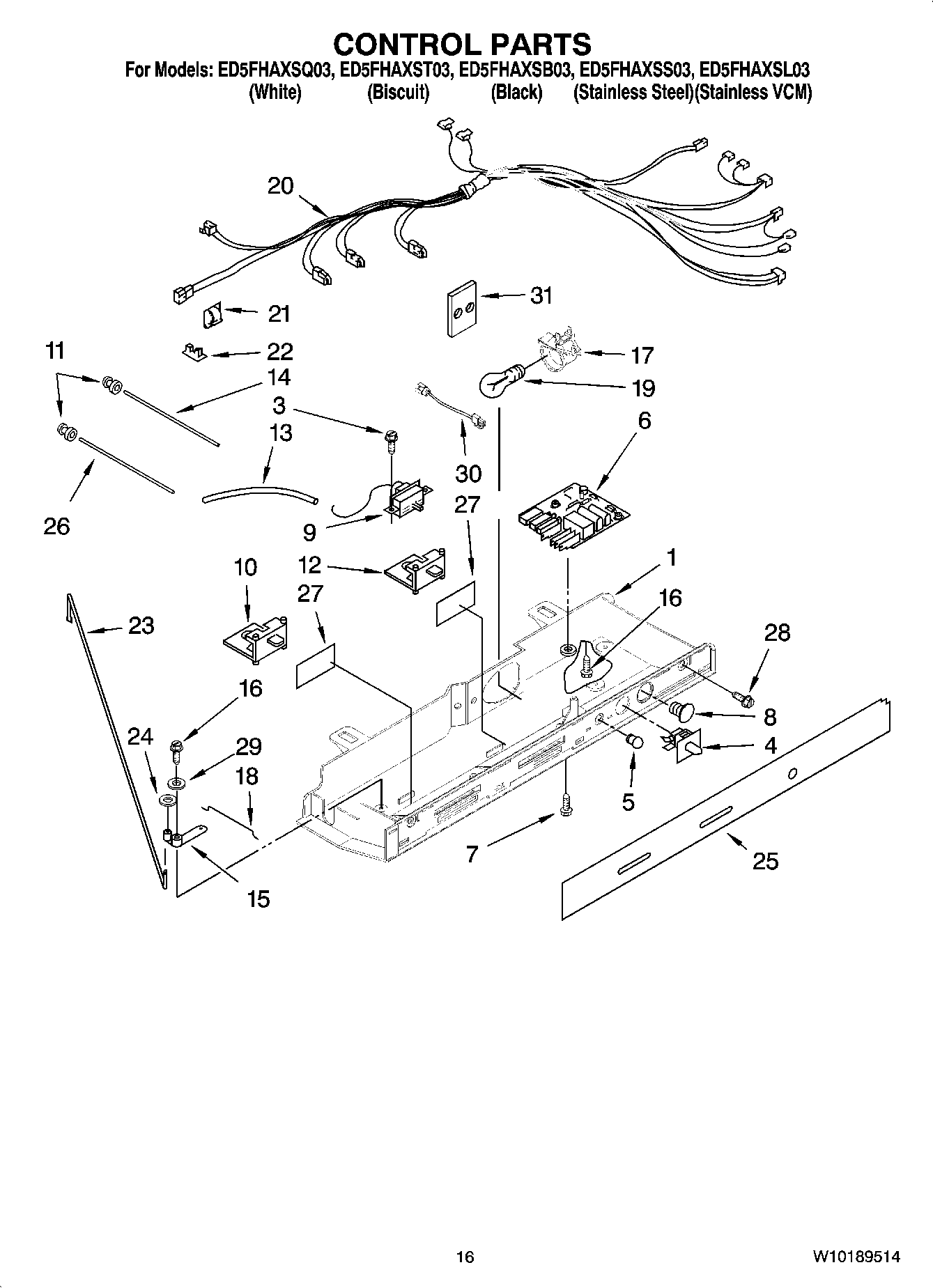

ED5FHAXSB03 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	COVER, LIGHT LENS
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2315562 Whirlpool Refrigerator Thermostat
10	2181741 Whirlpool Refrigerator Slide
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
13	WP2196003 Whirlpool Refrigerator Bar Riser
14	Fiber Optic
15	2161306 Whirlpool Refrigerator Arm Pivot
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	2161307 Whirlpool Refrigerator Rod
19	RANGE ONLY 40W 120V APPL BULB
20	2311632 Whirlpool Refrigerator Wire Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2161308 Whirlpool Refrigerator Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
29	489203 Whirlpool Refrigerator Washer
30	W10853646 Whirlpool Indicator Light
31	2172931 Whirlpool Refrigerator Shield
