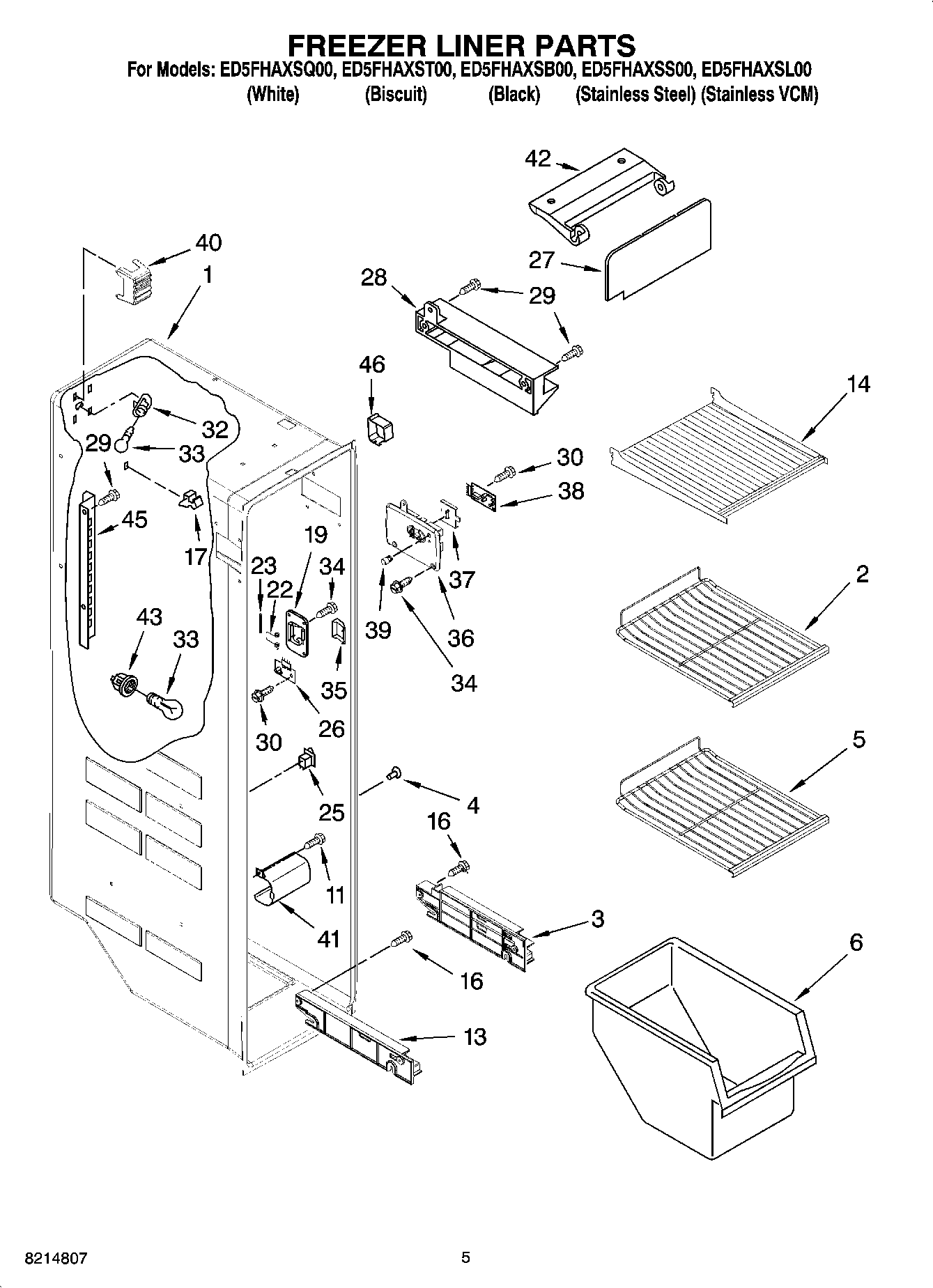

ED5FHAXSL00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Shelf, Slide Out Upper
3	2301291 Whirlpool Refrigerator Track
3	2301292 Whirlpool Refrigerator Track
4	WP941839 Whirlpool Refrigerator Button Plug
5	WPW10317556 Whirlpool Refrigerator Wire Shelf
6	WP2182971 Whirlpool Refrigerator Freezer Bin
11	W10142289 Whirlpool Air Conditioner Screw
13	Shelf Track (Right Side)
13	Shelf Track (Left Side)
14	Shelf (2)
16	W10759522 Whirlpool Screw
17	2215823 Whirlpool Refrigerator Clip
19	WP2198587 Whirlpool Refrigerator Cover
22	WP2198635 Whirlpool Refrigerator Spring
23	WP2198634 Whirlpool Door Pin
25	W11457217 Whirlpool Refrigerator Rocker Switch Combination
26	W10757851-includeCORE Whirlpool Electronic Control+Core
27	WP2255720 Whirlpool Refrigerator Ice Maker Door
28	Slide, Ice Maker
29	WP489478 Whirlpool Refrigerator Screw
30	2006254 Whirlpool Refrigerator Screw
32	4387478 Whirlpool Refrigerator Light Socket
33	RANGE ONLY 40W 120V APPL BULB
34	WPW10142283 Whirlpool Refrigerator Screw
35	WP2198633 Whirlpool Refrigerator Flipper
36	Cover, Receiver
37	2315398 Whirlpool Refrigerator Slide
39	WP2198643 Whirlpool Refrigerator Lens
40	Light Shield
41	Light Lens
42	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
43	SOCKET
45	Ladder (Left Side)
45	Ladder (Right Side)
46	Shield, Wiring
