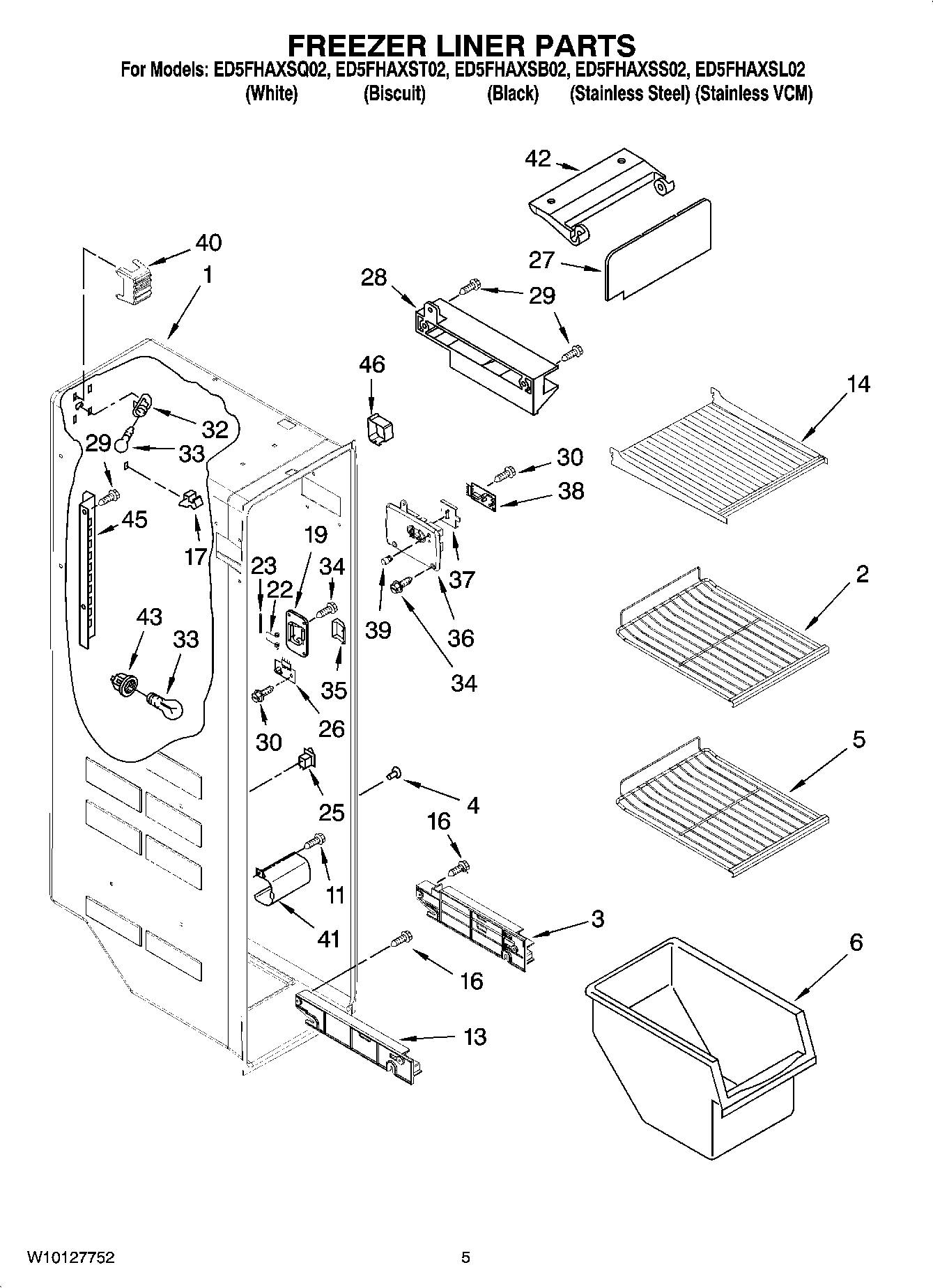

ED5FHAXSL02 04 – FREEZER LINER PARTS
Written by
in
ED5FHAXSL02 04 – FREEZER LINER PARTS
Products
Position
Product
1
Liner (Not A Seviceable Part)
2
Shelf, Slide Out Upper
3
2301291 Whirlpool Refrigerator Track
3
2301292 Whirlpool Refrigerator Track
4
WP941839 Whirlpool Refrigerator Button Plug
5
WPW10317556 Whirlpool Refrigerator Wire Shelf
6
WP2182971 Whirlpool Refrigerator Freezer Bin
11
W10142289 Whirlpool Air Conditioner Screw
13
Shelf Track (Right Side)
13
Shelf Track (Left Side)
14
Shelf (2)
16
W10759522 Whirlpool Screw
17
2215823 Whirlpool Refrigerator Clip
19
WP2198587 Whirlpool Refrigerator Cover
22
WP2198635 Whirlpool Refrigerator Spring
23
WP2198634 Whirlpool Door Pin
25
W11457217 Whirlpool Refrigerator Rocker Switch Combination
26
W10757851-includeCORE Whirlpool Electronic Control+Core
27
WP2255720 Whirlpool Refrigerator Ice Maker Door
28
Slide, Ice Maker
29
WP489478 Whirlpool Refrigerator Screw
30
2006254 Whirlpool Refrigerator Screw
32
4387478 Whirlpool Refrigerator Light Socket
33
RANGE ONLY 40W 120V APPL BULB
34
WPW10142283 Whirlpool Refrigerator Screw
35
WP2198633 Whirlpool Refrigerator Flipper
36
Cover, Receiver
37
2315398 Whirlpool Refrigerator Slide
39
WP2198643 Whirlpool Refrigerator Lens
40
Light Shield
41
Light Lens
42
WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
43
SOCKET
45
Ladder (Left Side)
45
Ladder (Right Side)
46
2303234 Whirlpool Refrigerator Shield
←
