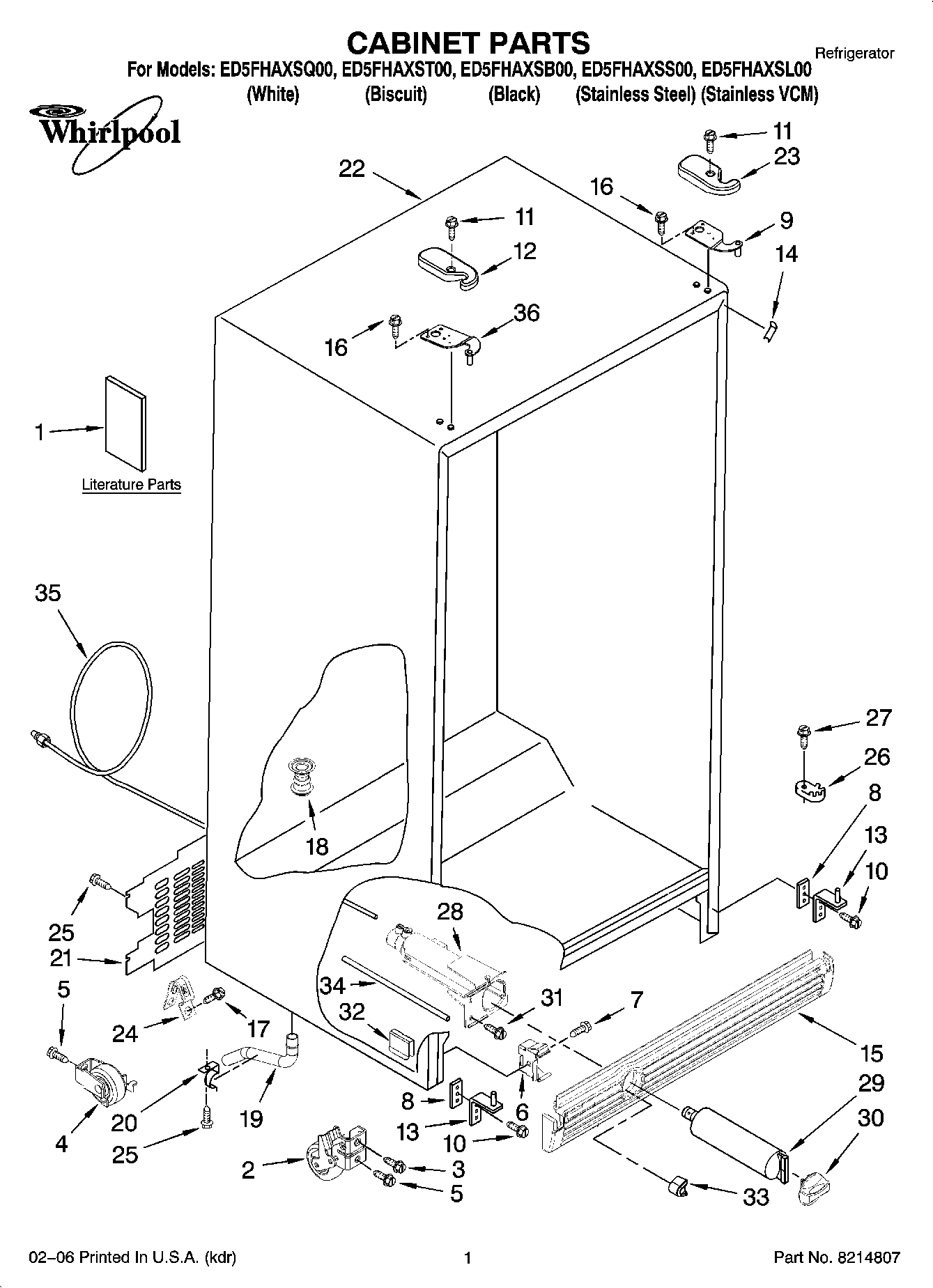

ED5FHAXSQ00 01 – CABINET PARTS

ED5FHAXSQ00 01 – CABINET PARTS

Written by

in

ED5FHAXSQ00 01 – CABINET PARTS

Products

PositionProduct
1Modular Icemaker Service Sheet
1Following May Be Purchased
1Energy Guide
1Owner`s Manual
1Service & Wiring Sheet
1DO-IT-YOURSELF REPAIR MANUALS
1DO-IT-YOURSELF MANUAL, ICEMAKER
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10WP489497 Whirlpool Screw
11WP8281227 Whirlpool Screw
12WP2203407W Whirlpool Refrigerator Cover
12WP2203407B Whirlpool Refrigerator Cover
122203407T Whirlpool Refrigerator Cover
138201707 Whirlpool Door Hinge
14Filler, Wrapper (Biscuit)
14Filler, Wrapper (Black)
14Filler, Wrapper (White)
15Grille (Biscuit)
15WPW10311032 Whirlpool Refrigerator Grille
15WPW10311033 Whirlpool Refrigerator Grille
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21WP2188755 Whirlpool Rear Panel
22Cabinet, (Not A Serviceable Part)
23Hinge Cover (Biscuit)
23WP2203408W Whirlpool Refrigerator Cover
23WP2203408B Whirlpool Refrigerator Cover
24549193 Whirlpool Refrigerator Power Clamp
26WPW10329686 Whirlpool Door Cam Black
27WP489483 Whirlpool Screw
28WPW10121138 Whirlpool Refrigerator Water Filter Housing
29FILTER 3-SINGLE TEAL
30Cap, Water Filter (Biscuit)
30WP2260518B Whirlpool Water Filter Cap
30WP2260518W Whirlpool Refrigerator Filter Cap
31WP489500 Whirlpool Refrigerator Screw
32Block, Housing Support
33WP2260503B Whirlpool Refrigerator Button
332260503W Whirlpool Refrigerator Button
34WPW10350006 Whirlpool Refrigerator Water Tube
35WP2304697 Whirlpool Refrigerator Water Tube
36WP2203770 Whirlpool Refrigerator Door Hinge
