ED5FHAXSQ00 11 – UNIT PARTS

ED5FHAXSQ00 11 – UNIT PARTS

Written by

in

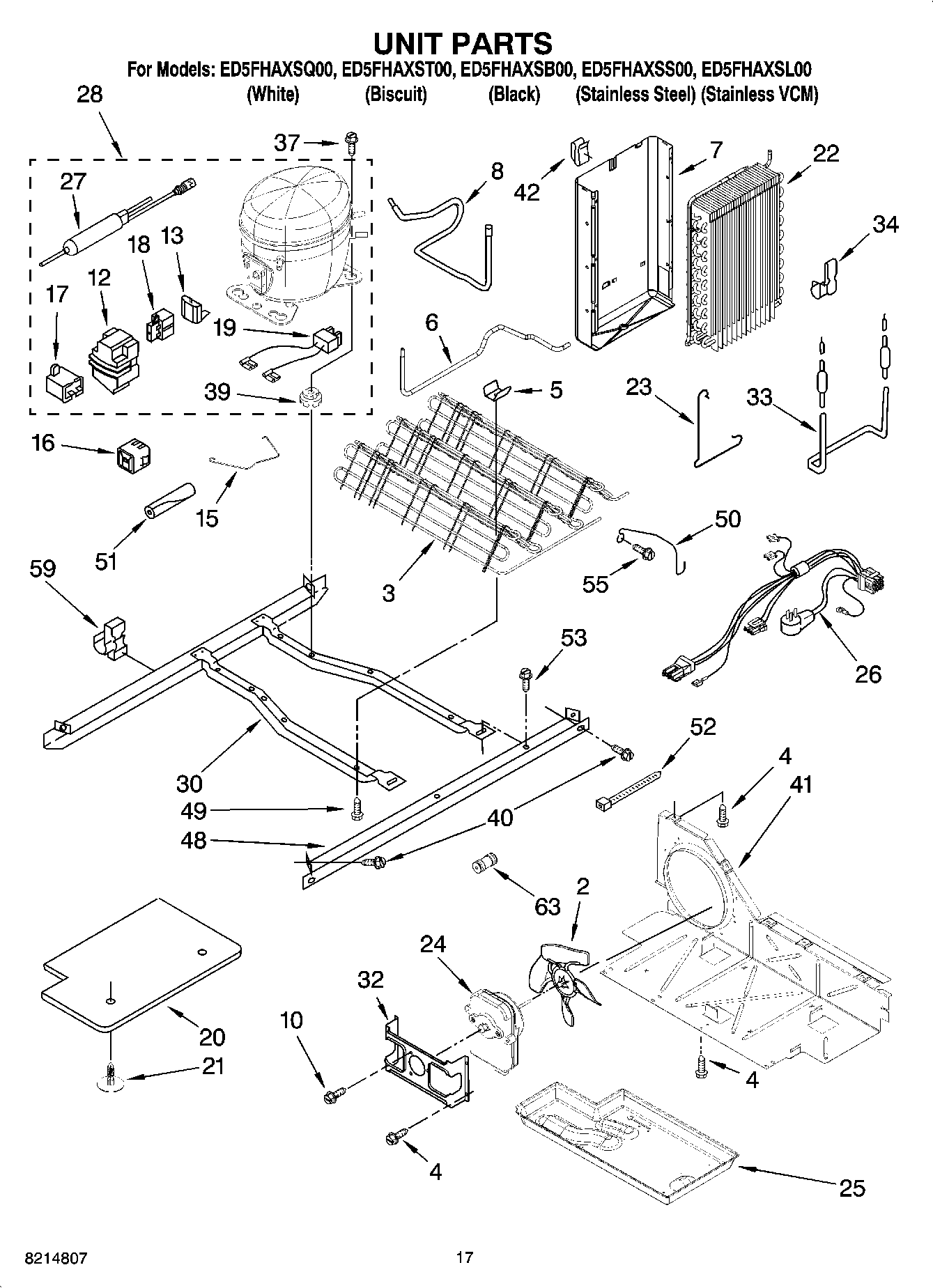

ED5FHAXSQ00 11 – UNIT PARTS

Products

PositionProduct
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
62261599 Whirlpool Refrigerator Tube
7Heat Shield
8WP2205765 Whirlpool Refrigerator Tube
10WP8533993 Whirlpool Refrigerator Screw
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2154697 Whirlpool Refrigerator Overload
15Clip, Retaining
16WP2319792 Whirlpool Refrigerator Start Device
17WPW10662129 Whirlpool Refrigerator Run Capacitor
18W10920279 Whirlpool Refrigerator Start Relay
19WP2172890 Whirlpool Refrigerator Wire
20Unit Cover, Bottom
21489396 Whirlpool Refrigerator Clip
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Unit, Harness
27W10843121 Whirlpool Refrigerator Tube
28W10309994 Whirlpool Refrigerator Compressor
302304904 Whirlpool Frame Assembly
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323198 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
39876811 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
482305374 Whirlpool Refrigerator Unit Rail
49W11544659 Whirlpool Refrigerator Screw
502260517 Whirlpool Fan Guard
51SLEEVE
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
59Clip, Wire & Tube
63Following Parts Not Illustrated
63VALVE, ACCESS (5/8“)
63876764 Whirlpool Refrigerator Primary Valve
63and Optional Parts Not Included
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63WP4373559 Whirlpool Fitting
63VALVE, ACCESS (1/2“)
63978026 Whirlpool Refrigerator Primary Valve
63R
