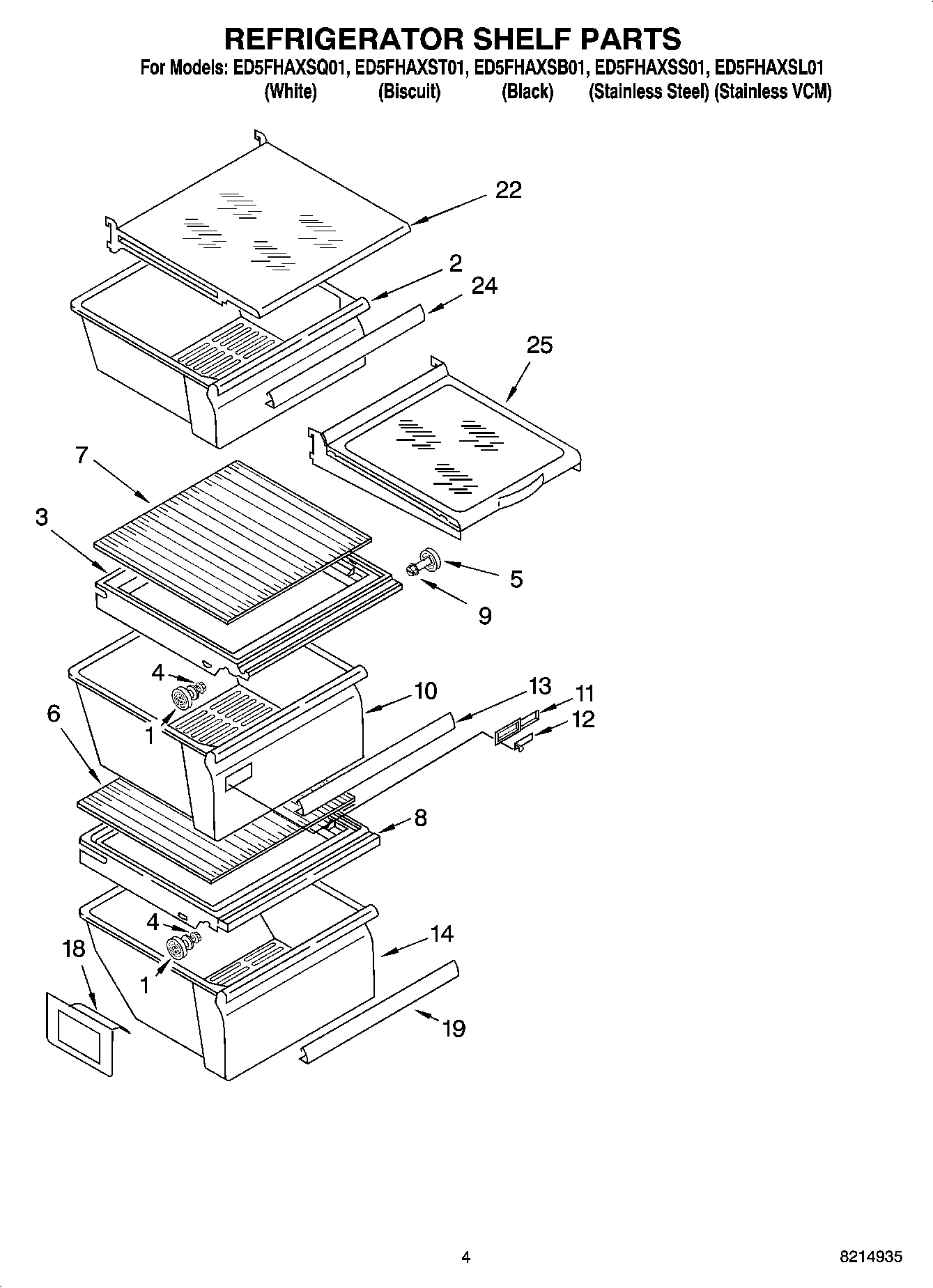

ED5FHAXSQ01 03 – REFRIGERATOR SHELF PARTS

ED5FHAXSQ01 03 – REFRIGERATOR SHELF PARTS

Written by

in

ED5FHAXSQ01 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1W11223328 Whirlpool Refrigerator Shelf Stud
2W11497323 Whirlpool Snack Pan
3W10508993 Whirlpool Refrigerator Cover Pan
4WP3-24004-109 Whirlpool Refrigerator Screw
5WP2196483 Whirlpool Refrigerator Shelf Stud
7W10864399 Whirlpool Glass Shelf
9WP3400806 Whirlpool Screw
10PAN-CRISPR
11WP2179343 Whirlpool Refrigerator Control Body
12WP2179342 Whirlpool Refrigerator Slide
14WP2188664 Whirlpool Dishwasher Meat Crisper Pan
182179350 Whirlpool Refrigerator Deflector
19WP2179234 Whirlpool Refrigerator Pan Trim
22Shelf, Snack Bin
24WP2179243 Whirlpool Refrigerator Pan Trim
25Shelf, Cantilever (2)
