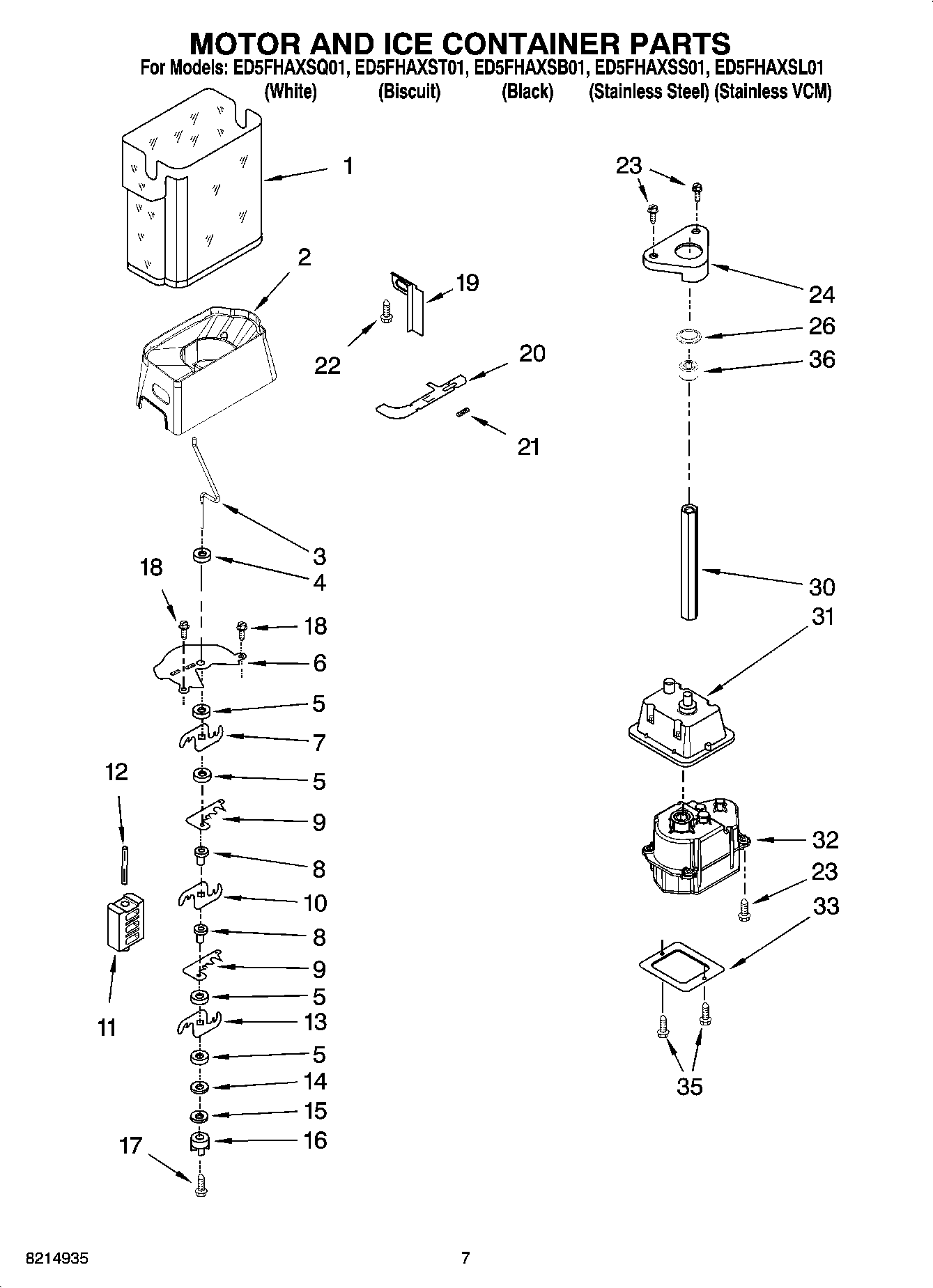

ED5FHAXSQ01 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	WP2198573 Whirlpool Refrigerator Ice Bin
2	Crusher Bin
3	W10852517 Whirlpool Refrigerator Ice Auger
4	Washer
5	WP1119007 Whirlpool Refrigerator Spacer
6	Cover, Crusher
7	W10278733 Whirlpool Refrigerator Blade
8	WP1119005 Whirlpool Refrigerator Spacer
9	Blade, Fixed
10	W10278732 Whirlpool Refrigerator Blade
11	Block, Blade
12	489229 Whirlpool Refrigerator Roll Pin
13	W10278731 Whirlpool Refrigerator Blade
14	WP489235 Whirlpool Refrigerator Washer
15	WP2198661 Whirlpool Refrigerator Washer
16	W11629923 Whirlpool Coupling
17	WP8281164 Whirlpool Refrigerator Screw
18	WP3400065 Whirlpool Refrigerator Screw
19	WP2315403 Whirlpool Refrigerator Bin Button
20	Latch, Bin
21	WP2198608 Whirlpool Refrigerator Spring
22	2198671 Whirlpool Refrigerator Screw
23	WP8281163 Whirlpool Refrigerator Screw
24	WP2188919 Whirlpool Refrigerator Holder
26	WP2198628 Whirlpool Door Seal
30	WP2188917 Whirlpool Drive Shaft
31	Enclosure, Motor
32	W10822635 Whirlpool Refrigerator Ice Maker Dispenser Auger Drive Motor
33	Cover
35	WP489478 Whirlpool Refrigerator Screw
36	WP2315559 Whirlpool Motor Coupling
100	Ice Container (Complete)
