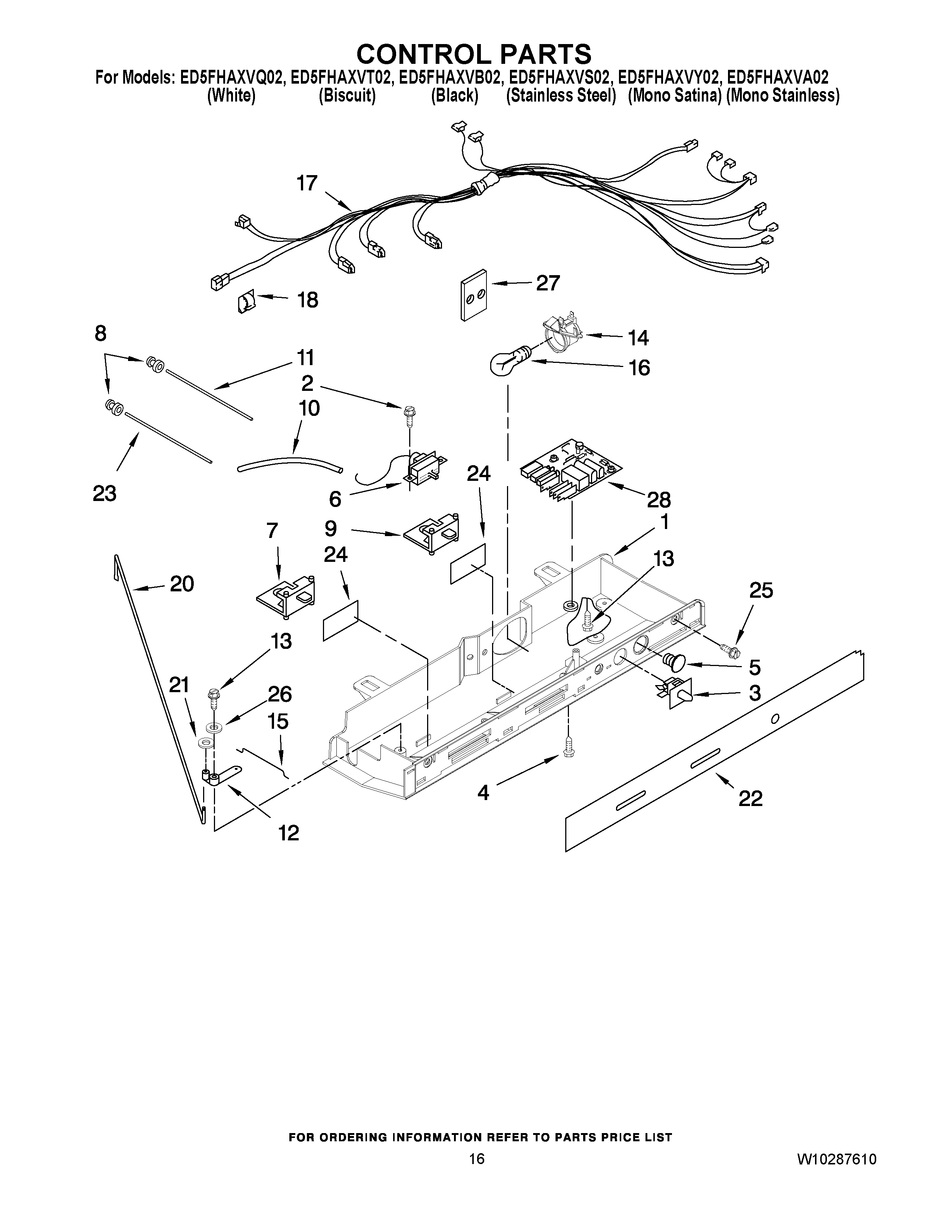

ED5FHAXVA02 10 – CONTROL PARTSadmin2025-04-26T11:08:47+00:00ED5FHAXVA02 10 – CONTROL PARTS ProductsPositionProduct1Control Box22006254 Whirlpool Refrigerator Screw3WP2149705 Whirlpool Refrigerator Door Switch4489392 Whirlpool Refrigerator Screw5940014 Whirlpool Refrigerator Primary Button Plug6WP2315562 Whirlpool Refrigerator Thermostat72181741 Whirlpool Refrigerator Slide8Grommet, Light Fiber92161466 Whirlpool Refrigerator Slide10WP2196003 Whirlpool Refrigerator Bar Riser11Fiber Optic122161306 Whirlpool Refrigerator Arm Pivot13627068 Whirlpool Refrigerator Screw144387478 Whirlpool Refrigerator Light Socket152161307 Whirlpool Refrigerator Rod16RANGE ONLY 40W 120V APPL BULB17Control Box Harness18WP1115374 Whirlpool Refrigerator Clip202161308 Whirlpool Refrigerator Rod21Fastener, Push-On22Escutcheon, Control Box23Light Bar (FC)24Window26489203 Whirlpool Refrigerator Washer272172931 Whirlpool Refrigerator Shield284388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
