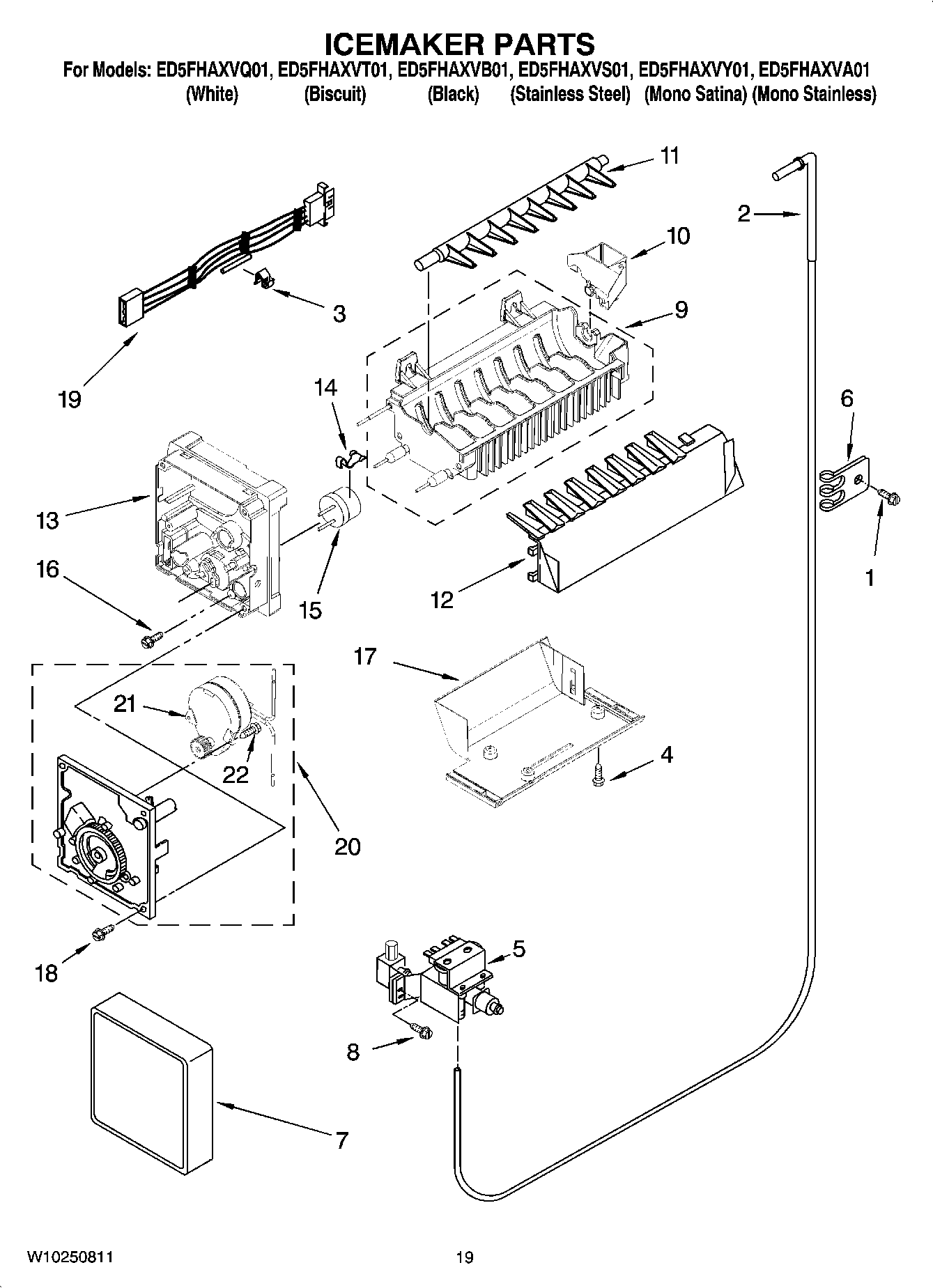

ED5FHAXVB01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
PAINT, BULK (1 QT. GRAPHITE)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
350942 Whirlpool Spray Paint
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Torx Key
WPL ARI33287A4
WPL ARI33286A7
4210463RW Whirlpool Refrigerator Coil Brush
WPL ARI33288A2
212643 Whirlpool Refrigerator Permagum Sealer
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
2Fitting, Water Tube
3WP628379 Whirlpool Refrigerator Clip
4WP489478 Whirlpool Refrigerator Screw
5W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
6WP488366 Whirlpool Refrigerator Clamp
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10WPW10272168 Whirlpool Refrigerator Water Fill Cup
11WP627843 Whirlpool Refrigerator Ejector Arm
12W10297244 Whirlpool Refrigerator Arm Strip
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17BRACKET, ICEMAKER MOUNTING
18WP681249 Whirlpool Screw Assembly
19WP2187467 Whirlpool Refrigerator Wire Harness
218201515 Whirlpool Refrigerator Motor and Gear Module Kit
22489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
