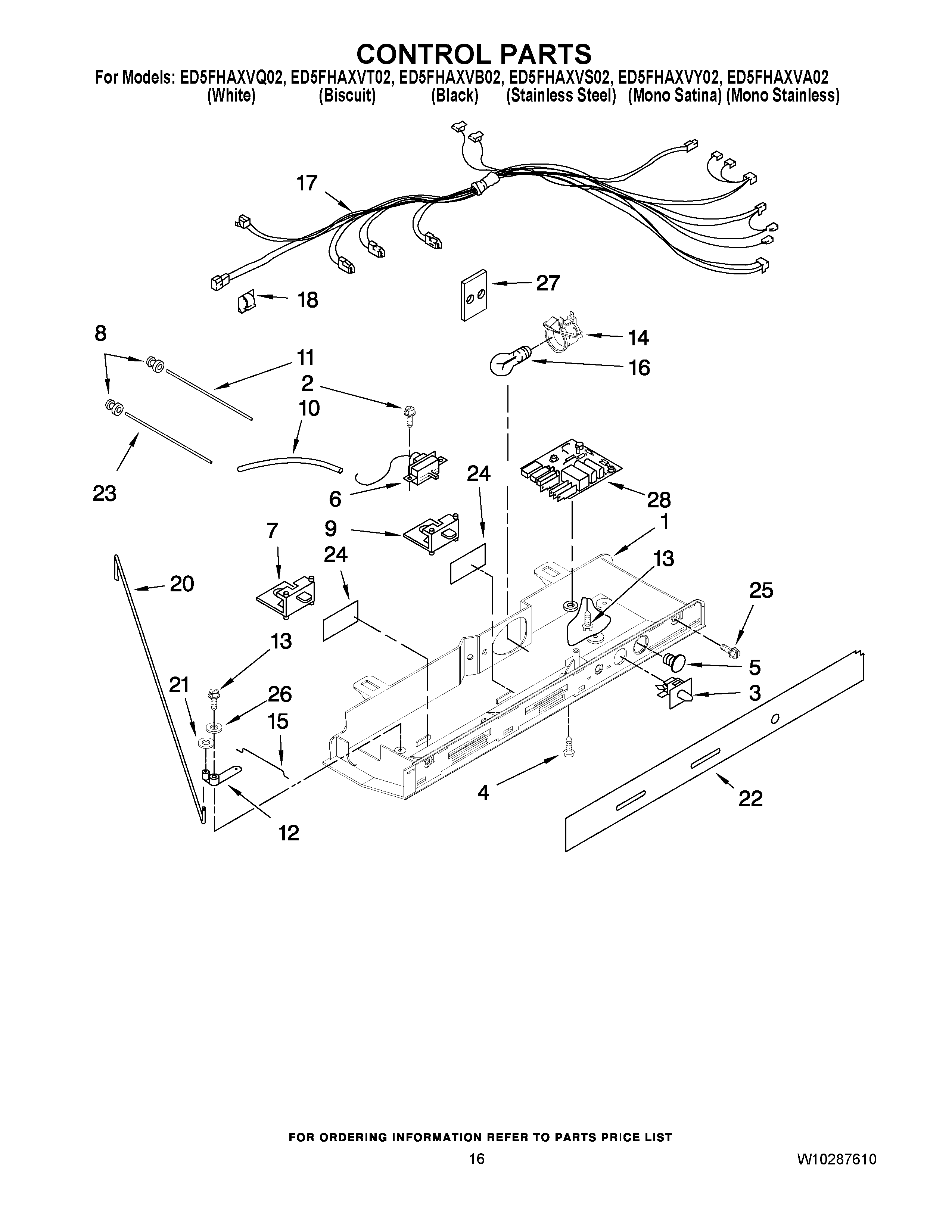

ED5FHAXVB02 10 – CONTROL PARTS

ED5FHAXVB02 10 – CONTROL PARTS

Written by

in

ED5FHAXVB02 10 – CONTROL PARTS

Products

PositionProduct
1Control Box
22006254 Whirlpool Refrigerator Screw
3WP2149705 Whirlpool Refrigerator Door Switch
4489392 Whirlpool Refrigerator Screw
5940014 Whirlpool Refrigerator Primary Button Plug
6WP2315562 Whirlpool Refrigerator Thermostat
72181741 Whirlpool Refrigerator Slide
8Grommet, Light Fiber
92161466 Whirlpool Refrigerator Slide
10WP2196003 Whirlpool Refrigerator Bar Riser
11Fiber Optic
122161306 Whirlpool Refrigerator Arm Pivot
13627068 Whirlpool Refrigerator Screw
144387478 Whirlpool Refrigerator Light Socket
152161307 Whirlpool Refrigerator Rod
16RANGE ONLY 40W 120V APPL BULB
17Control Box Harness
18WP1115374 Whirlpool Refrigerator Clip
202161308 Whirlpool Refrigerator Rod
21Fastener, Push-On
22Escutcheon, Control Box
23Light Bar (FC)
24Window
26489203 Whirlpool Refrigerator Washer
272172931 Whirlpool Refrigerator Shield
284388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
