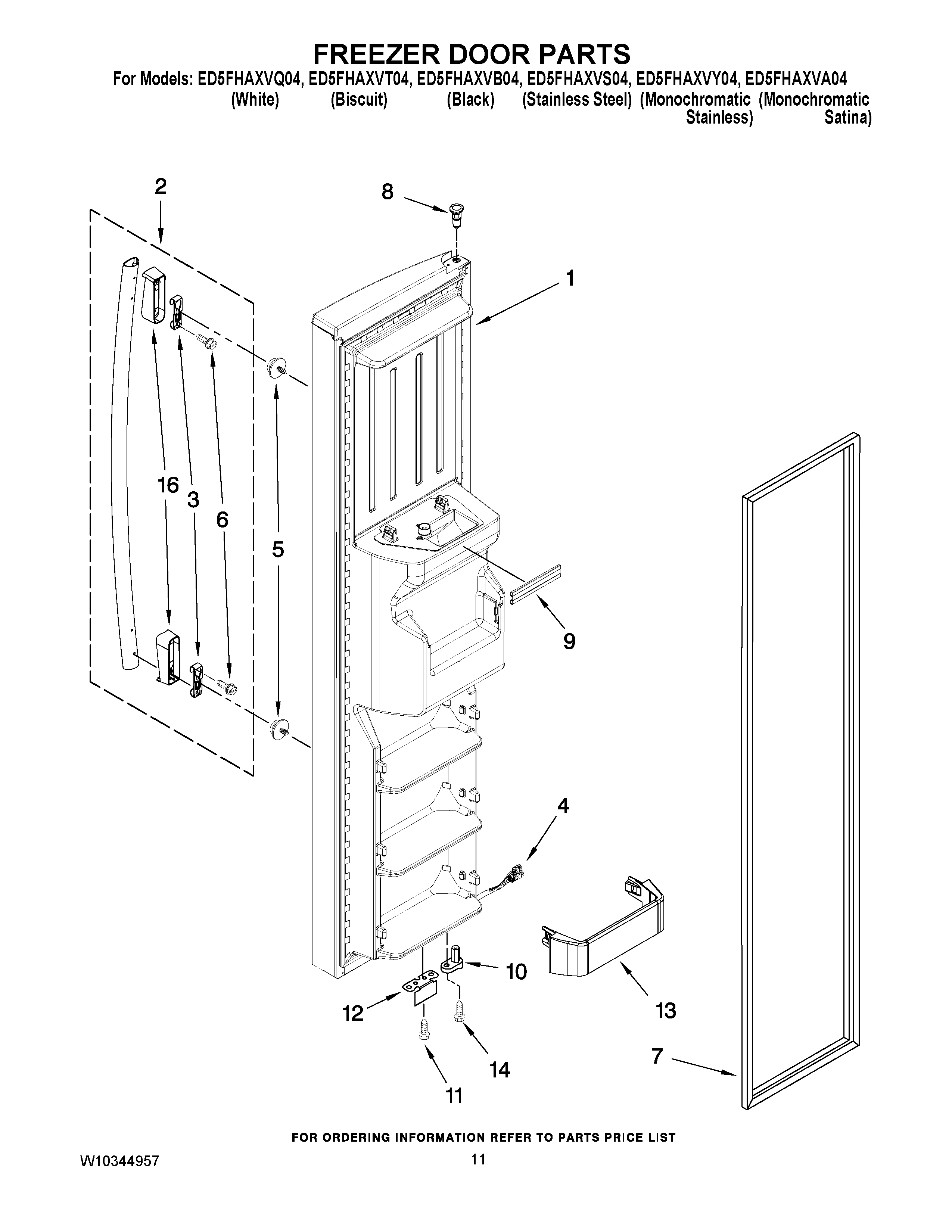

ED5FHAXVB04 07 – FREEZER DOOR PARTS

ED5FHAXVB04 07 – FREEZER DOOR PARTS

Written by

in

ED5FHAXVB04 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Stainless)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
2WPW10257120 Whirlpool Refrigerator Handle
2W10210944A Whirlpool Refrigerator Handle M
2W10210942A Whirlpool Refrigerator Handle
2W10210943A Whirlpool Refrigerator Handle
3WP2255411 Whirlpool Refrigerator Clip
4WPW10193328 Whirlpool Refrigerator Wire Harness
5WPW10288153 Whirlpool Refrigerator Screw
6W10267047 Whirlpool Screw
7W10136735 Whirlpool Refrigerator Door Gasket
72159082 Whirlpool Freezer Door Gasket Black
72159074 Whirlpool Door Gasket Seal
8Thimble, Top (For Stainless Steel Models)
8WP2182181 Whirlpool Refrigerator Thimble
9WPW10307490 Whirlpool Door Trim Assembly
10Door Closer, Upper Cam
11WP489483 Whirlpool Screw
122323534 Whirlpool Refrigerator Bracket
12Bracket, Door Stop (Black)
13WP2309718 Whirlpool Refrigerator Door Trim
14WP3400012 Whirlpool Refrigerator Screw
16Handle, Endcap (Biscuit)
16Handle, Endcap (Black)
16W10127813 Whirlpool Refrigerator Handle Endcap
16Handle, Endcap (Stainless, All)
