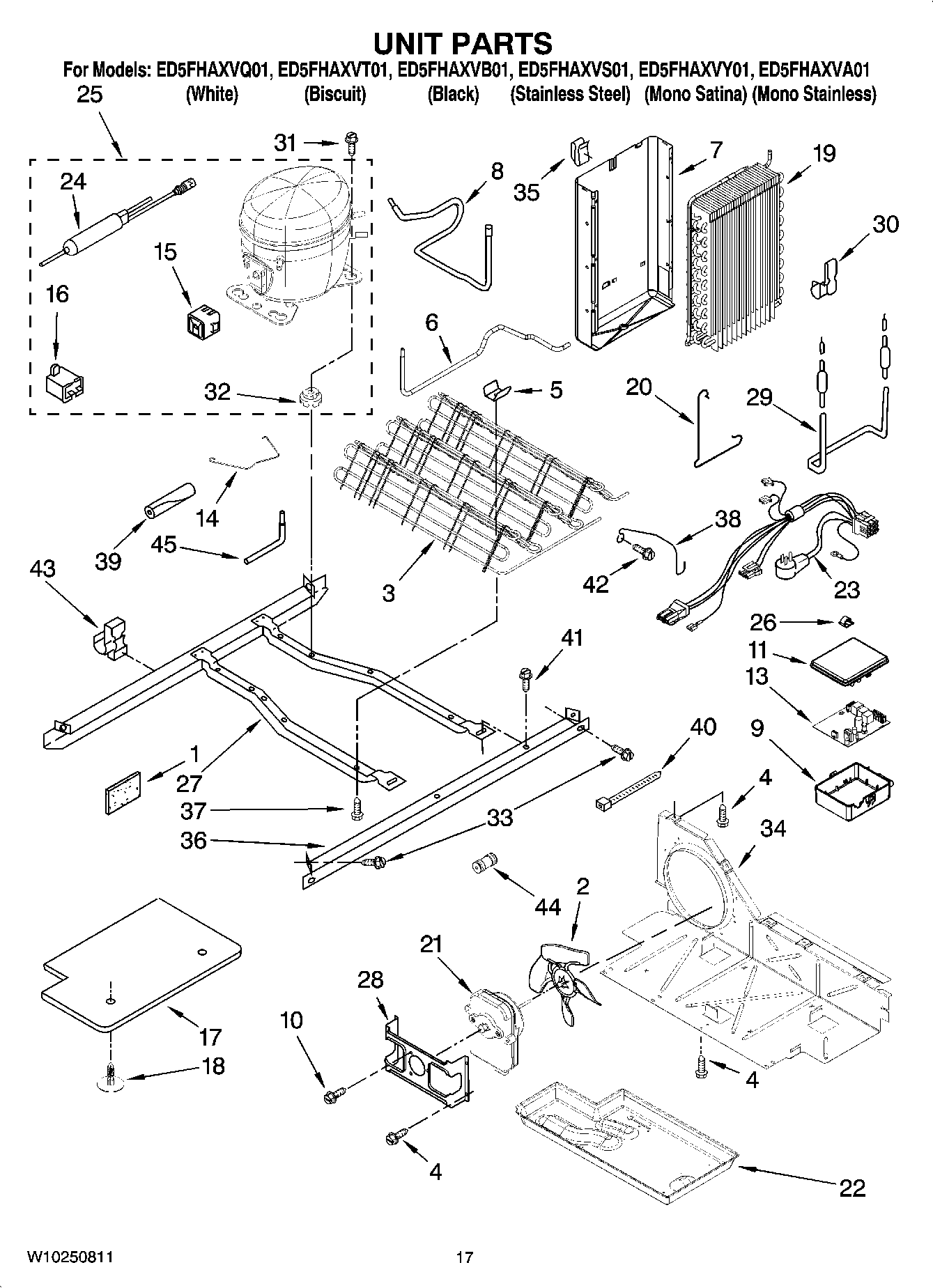

ED5FHAXVQ01 11 – UNIT PARTS

Products

PositionProduct
978026 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 oz. (R-134A)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (5/8“)
Following Parts Not Illustrated and Optional Parts Not Included
1W11553819 Whirlpool Refrigerator Insulation
2W10156818 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6Tube, Condenser to Heat Loop
7Heat Shield
8W10528574 Whirlpool Refrigerator Tube
92326982 Whirlpool Refrigerator Control Box
10WP8533993 Whirlpool Refrigerator Screw
11Box Cover
13Elec. Control
142223314 Whirlpool Refrigerator Clip
15WPW10189190 Whirlpool Start Device
16WPW10662129 Whirlpool Refrigerator Run Capacitor
17Unit Cover, Bottom
18489396 Whirlpool Refrigerator Clip
19WP2188823 Whirlpool Refrigerator Evaporator
20Clamp
21WP2188874 Whirlpool Refrigerator Condenser Motor
22WPW10614158 Whirlpool Refrigerator Evaporator Tray
23Harness, Unit
24WPW10143759 Whirlpool Dryer Filter
25W10233961 Whirlpool Refrigerator Compressor
26WP1115374 Whirlpool Refrigerator Clip
272304904 Whirlpool Frame Assembly
28WP2181929 Whirlpool Refrigerator Bracket
29WP2323198 Whirlpool Refrigerator Heater
30W11623163 Whirlpool Refrigerator Clip
32876811 Whirlpool Grommet
33489340 Whirlpool Refrigerator Screw
34W10896764 Whirlpool Refrigerator Air Baffle
35Clip, Heat Shield
362305374 Whirlpool Refrigerator Unit Rail
37W11544659 Whirlpool Refrigerator Screw
38W11661170 Whirlpool Clip
39SLEEVE
40WPW10339879 Whirlpool Wire Tie
41WP489427 Whirlpool Refrigerator Screw
42WP489478 Whirlpool Refrigerator Screw
43W10169512 Whirlpool Clip
44WPW10334458 Whirlpool Refrigerator Connector
45Tube, Process
