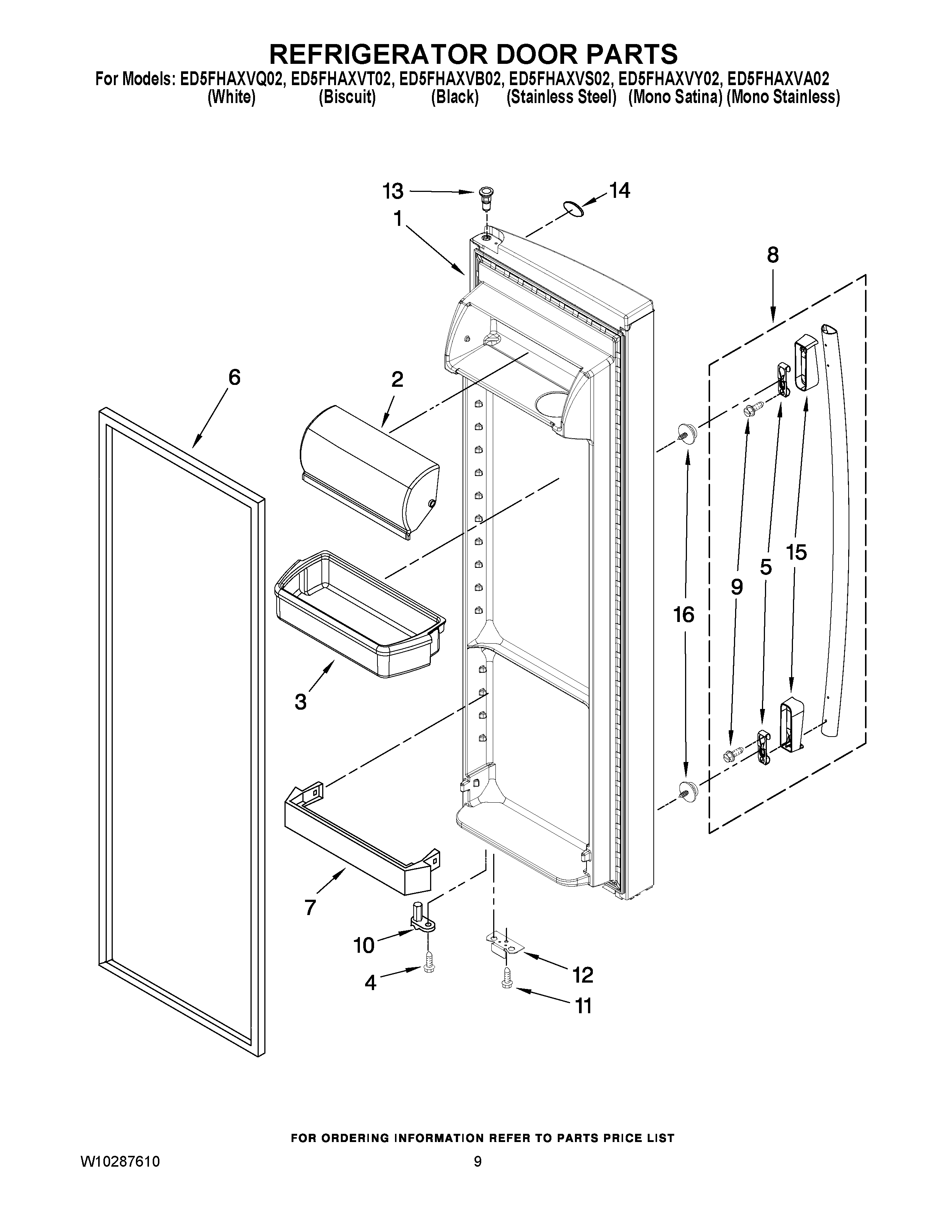

ED5FHAXVQ02 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Mono Stainless)
1	Refrigerator Door (Includes Item 6) (Mono Satina)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Black)
1	Refrigerator Door (Includes Item 6) (Stainless Steel)
1	Refrigerator Door (Includes Item 6) (Biscuit)
2	WP2256101 Whirlpool Dairy Door
3	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
4	WP3400012 Whirlpool Refrigerator Screw
5	WP2255411 Whirlpool Refrigerator Clip
6	2159083 Whirlpool Gasket Door
6	2159075 Whirlpool Door Gasket Seal
6	WPW10136734 Whirlpool Refrigerator Door Gasket
7	WP2156022 Whirlpool Refrigerator Door Trim
8	W10210942A Whirlpool Refrigerator Handle
8	W10210943A Whirlpool Refrigerator Handle
8	WPW10257120 Whirlpool Refrigerator Handle
8	W10210944A Whirlpool Refrigerator Handle M
9	W10267047 Whirlpool Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	2323534 Whirlpool Refrigerator Bracket
12	Bracket, Door Stop (Black)
13	2323581 Whirlpool Refrigerator Tube Cover
14	WP2213265 Whirlpool Refrigerator Nameplate
15	Handle, Endcap (Stainless, All)
15	Handle, Endcap (Biscuit)
15	W10127813 Whirlpool Refrigerator Handle Endcap
15	Handle, Endcap (Black)
16	WPW10288153 Whirlpool Refrigerator Screw
