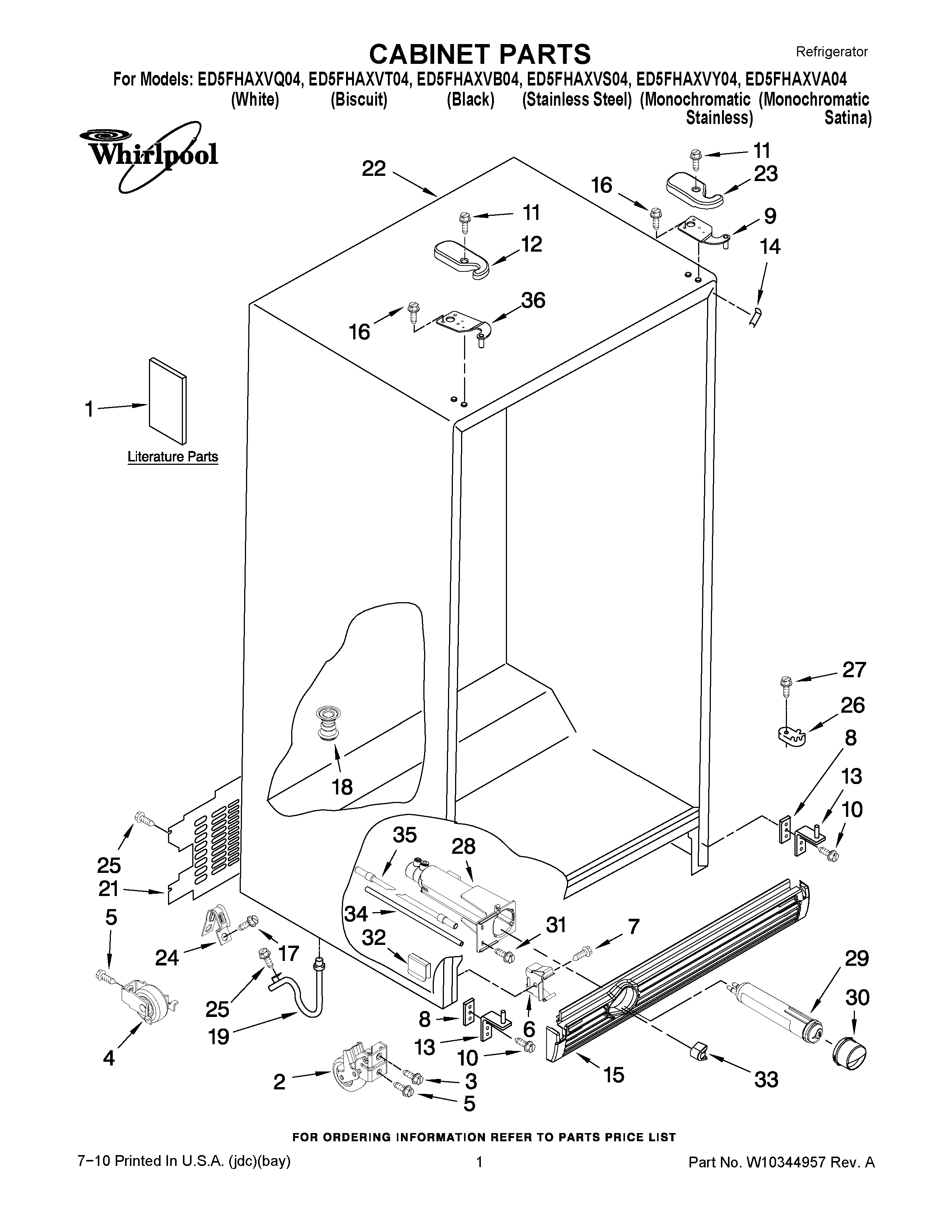

ED5FHAXVQ04 01 – CABINET PARTSadmin2025-04-26T11:08:10+00:00ED5FHAXVQ04 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Service & Wiring Sheet |
| 1 | Modular Icemaker Service Sheet |
| 1 | OWNER S MANUAL |
| 1 | INSTRUCTION SHEET, DOOR REMOVAL |
| 1 | ENERGY GUIDE |
| 2 | Front Roller (2) |
| 3 | W10850698 Whirlpool Refrigerator Screw |
| 4 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 5 | WP489427 Whirlpool Refrigerator Screw |
| 6 | WP2155013 Whirlpool Refrigerator Clip |
| 7 | WP489478 Whirlpool Refrigerator Screw |
| 8 | WP2181911 Whirlpool Refrigerator Shim |
| 9 | WP2203771 Whirlpool Refrigerator Door Hinge |
| 10 | WP489497 Whirlpool Screw |
| 11 | WP8281227 Whirlpool Screw |
| 12 | HINGE COVER, FC APOLLO GREY |
| 12 | HINGE COVER (FC) (BISCUIT) |
| 12 | HINGE COVER (FC) (WHITE) |
| 12 | HINGE COVER (FC) (BLACK) |
| 13 | 2303141 Whirlpool Refrigerator Door Hinge |
| 13 | W10138965 Whirlpool Refrigerator Door Hinge |
| 14 | Filler, Wrapper (Apollo Grey) |
| 14 | Filler, Wrapper (Biscuit) |
| 14 | Filler, Wrapper (Black) |
| 14 | Filler, Wrapper (White) |
| 15 | WPW10311032 Whirlpool Refrigerator Grille |
| 15 | WPW10184888 Whirlpool Refrigerator Grille |
| 15 | WPW10184890 Whirlpool Refrigerator Grille |
| 15 | Grille (Biscuit) |
| 17 | WP489464 Whirlpool Refrigerator Screw |
| 18 | W11566763 Whirlpool Fitting |
| 19 | W11512417 Whirlpool Drain Connector |
| 21 | Unit Cover, Bottom |
| 22 | CABINET (NOT A SERVICEABLE PART) |
| 23 | HINGE COVER (RC) (WHITE) |
| 23 | HINGE COVER (RC) (BLACK) |
| 23 | HINGE COVER (RC) (BISCUIT) |
| 23 | HINGE COVER, RC (APOLLO GREY) |
| 24 | 549193 Whirlpool Refrigerator Power Clamp |
| 26 | WP2223751 Whirlpool Refrigerator Door Cam |
| 26 | WPW10329686 Whirlpool Door Cam Black |
| 27 | WP489483 Whirlpool Screw |
| 28 | WPW10121138 Whirlpool Refrigerator Water Filter Housing |
| 29 | FILTER 3-SINGLE TEAL |
| 30 | Cap, Water Filter (Biscuit) |
| 30 | WP2260518W Whirlpool Refrigerator Filter Cap |
| 30 | WP2260518MG Whirlpool Water Filter Cap |
| 30 | WP2260518B Whirlpool Water Filter Cap |
| 31 | WP489500 Whirlpool Refrigerator Screw |
| 32 | Block, Housing Support |
| 33 | WP2260503B Whirlpool Refrigerator Button |
| 33 | 2260503MG Whirlpool Refrigerator Button |
| 33 | 2260503W Whirlpool Refrigerator Button |
| 34 | WPW10350006 Whirlpool Refrigerator Water Tube |
| 35 | TUBE, FILTER INLET |
| 36 | WP2203770 Whirlpool Refrigerator Door Hinge |
