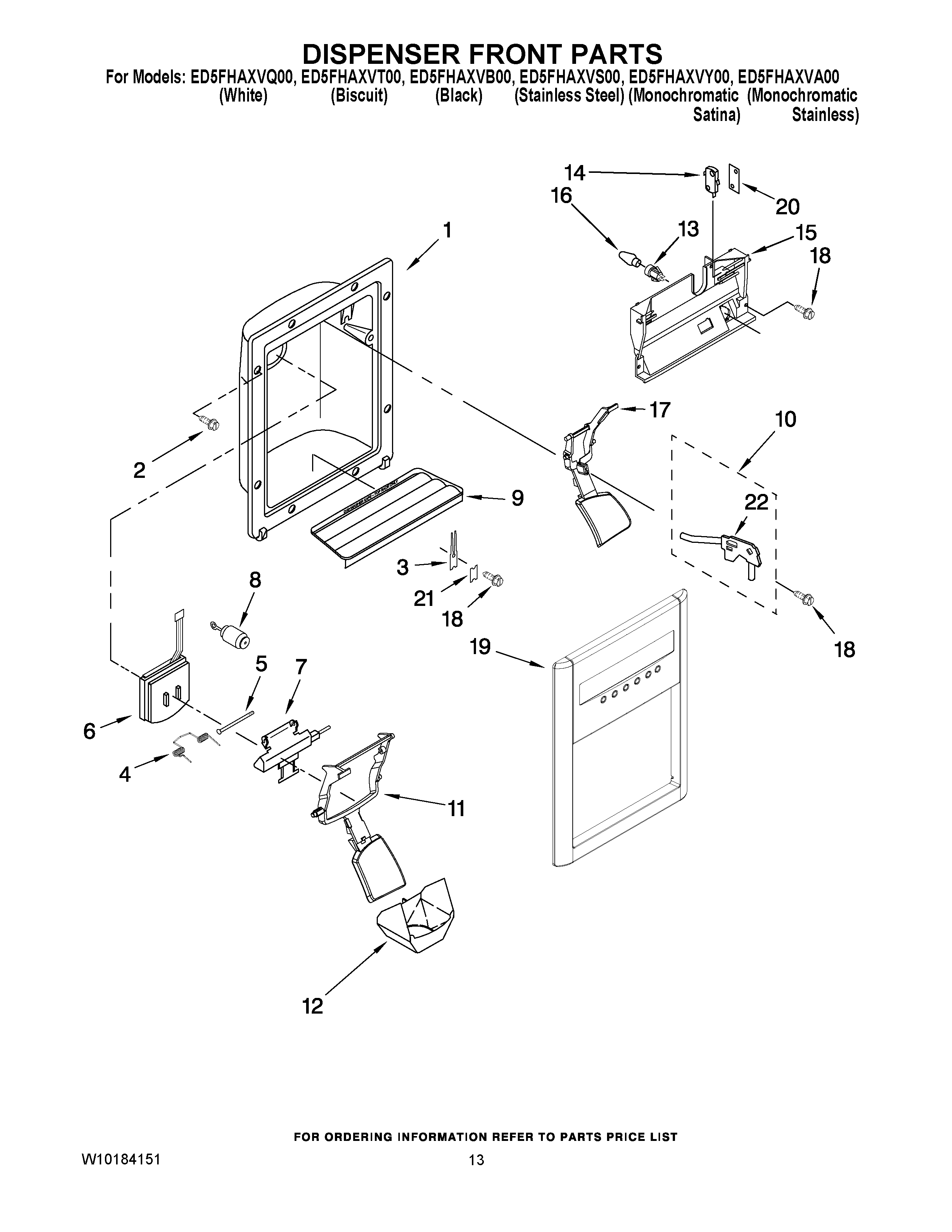

ED5FHAXVT00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670T Whirlpool Refrigerator Grille
9	WP2206670B Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	WPW10152853 Whirlpool Refrigerator Dispenser Arm
11	W10155161 Whirlpool Refrigerator Dispenser Arm
11	WPW10152854 Whirlpool Refrigerator Dispenser Arm
11	W10152855 Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2180200 Whirlpool Refrigerator Socket
14	WP2162361 Whirlpool Switch
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP22002263 Whirlpool Dryer 10W Light Bulb
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
17	Lever, Water Dispenser (Apollo Grey)
17	W10152860 Whirlpool Refrigerator Dispenser Arm
17	WPW10152859 Whirlpool Refrigerator Dispenser Arm
18	WP3400906 Whirlpool Refrigerator Screw
19	Front Cover Assembly (White)
19	Front Cover Assembly (Black)
19	Front Cover Assembly (Biscuit)
19	Front Cover Assembly (Stainless, Mono Satina (SS))
19	Front Cover Assembly (Mono Stain (NO))
20	Spacer, Switch (2)
21	WP2195051 Whirlpool Refrigerator Clip
22	WP2304673 Whirlpool Refrigerator Bracket
