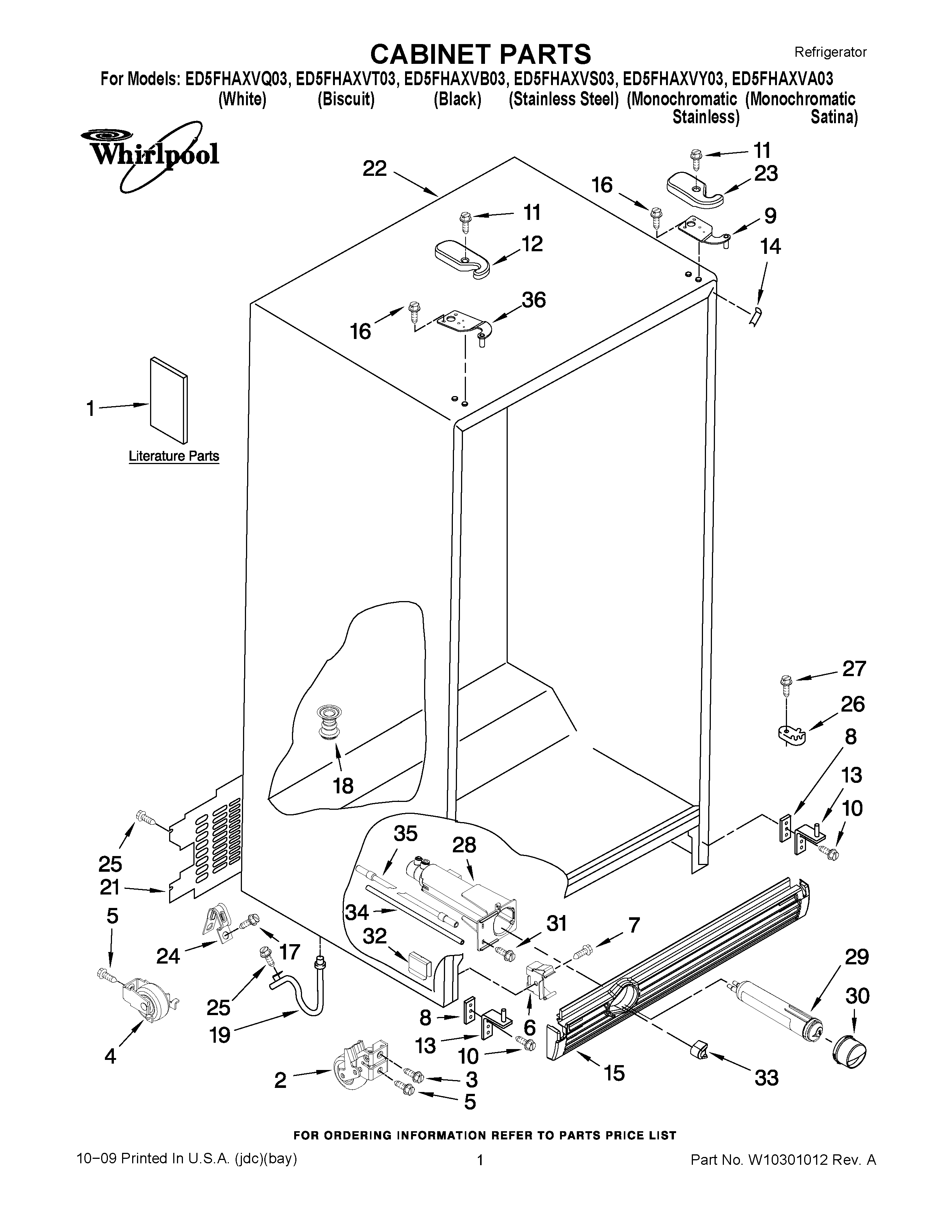

ED5FHAXVT03 01 – CABINET PARTS

Products

Position	Product
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Modular Icemaker Service Sheet
1	OWNER S MANUAL
1	Energy Guide
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP489497 Whirlpool Screw
11	WP8281227 Whirlpool Screw
12	Hinge Cover (FC) (Apollo Grey)
12	Hinge Cover (FC) (White)
12	Hinge Cover (FC) (Biscuit)
12	Hinge Cover (FC) (Black)
13	W10138965 Whirlpool Refrigerator Door Hinge
13	2303141 Whirlpool Refrigerator Door Hinge
14	Filler, Wrapper (Apollo Grey)
14	Filler, Wrapper (Biscuit)
14	Filler, Wrapper (Black)
14	Filler, Wrapper (White)
15	WPW10311032 Whirlpool Refrigerator Grille
15	WPW10184888 Whirlpool Refrigerator Grille
15	WPW10184890 Whirlpool Refrigerator Grille
15	Grille (Biscuit)
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	W11512417 Whirlpool Drain Connector
21	Unit Cover, Bottom
22	CABINET (NOT A SERVICEABLE PART)
23	Hinge Cover (RC) (Apollo Grey)
23	Hinge Cover (RC) (Biscuit)
23	Hinge Cover (RC) (Black)
23	Hinge Cover (RC) (White)
24	549193 Whirlpool Refrigerator Power Clamp
26	WP2223751 Whirlpool Refrigerator Door Cam
26	WPW10329686 Whirlpool Door Cam Black
27	WP489483 Whirlpool Screw
28	WPW10121138 Whirlpool Refrigerator Water Filter Housing
29	FILTER 3-SINGLE TEAL
30	WP2260518B Whirlpool Water Filter Cap
30	WP2260518MG Whirlpool Water Filter Cap
30	Cap, Water Filter (Biscuit)
30	WP2260518W Whirlpool Refrigerator Filter Cap
31	WP489500 Whirlpool Refrigerator Screw
32	Block, Housing Support
33	2260503MG Whirlpool Refrigerator Button
33	WP2260503B Whirlpool Refrigerator Button
33	2260503W Whirlpool Refrigerator Button
34	WPW10350006 Whirlpool Refrigerator Water Tube
35	TUBE, FILTER INLET
36	WP2203770 Whirlpool Refrigerator Door Hinge
