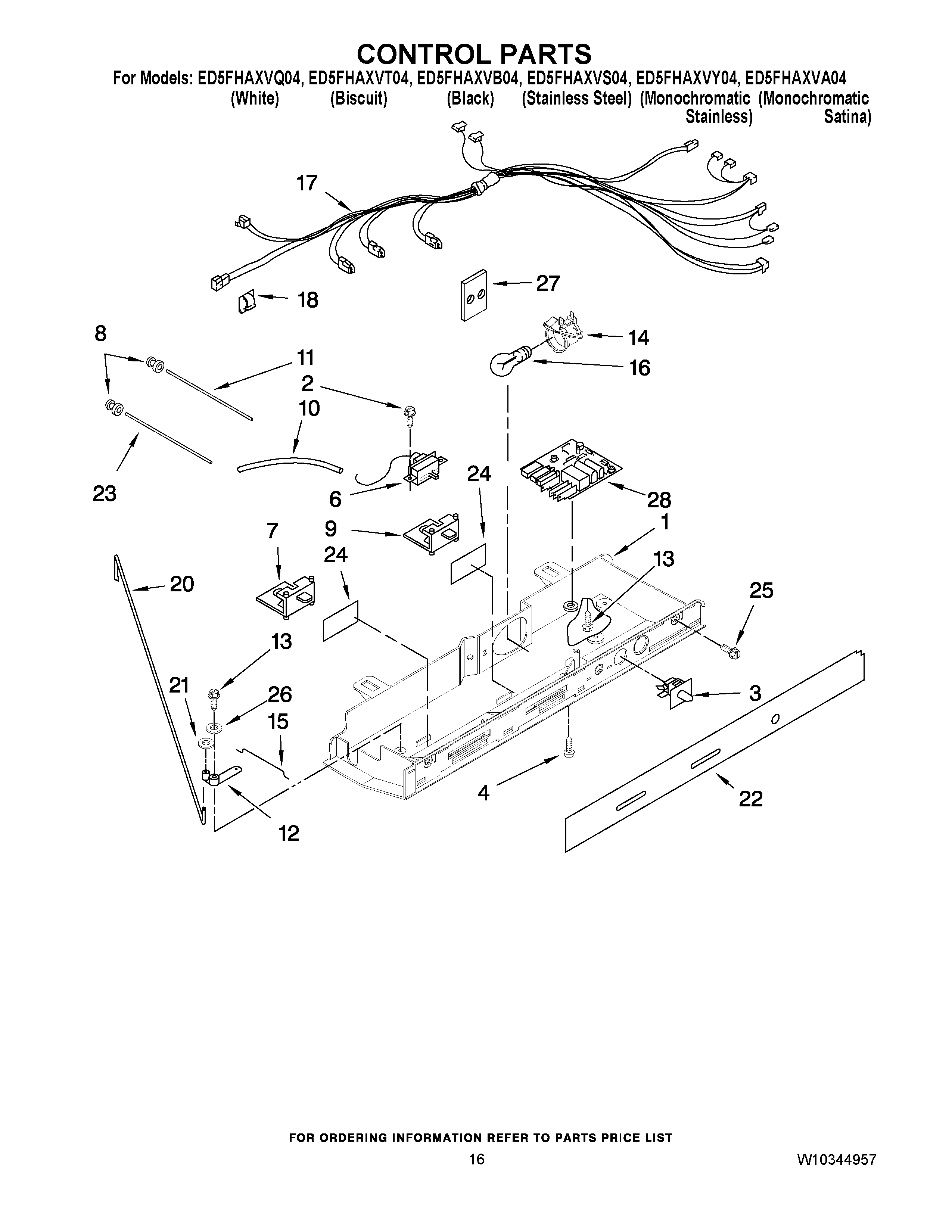

ED5FHAXVY04 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	2006254 Whirlpool Refrigerator Screw
3	WP2149705 Whirlpool Refrigerator Door Switch
4	489392 Whirlpool Refrigerator Screw
6	WP2315562 Whirlpool Refrigerator Thermostat
7	2181741 Whirlpool Refrigerator Slide
8	Grommet, Light Fiber
9	2161466 Whirlpool Refrigerator Slide
10	WP2196003 Whirlpool Refrigerator Bar Riser
11	Fiber Optic
12	2161306 Whirlpool Refrigerator Arm Pivot
13	627068 Whirlpool Refrigerator Screw
14	4387478 Whirlpool Refrigerator Light Socket
15	2161307 Whirlpool Refrigerator Rod
16	W11679940 Whirlpool Refrigerator Light Bulb Assembly
17	Control Box Harness
18	WP1115374 Whirlpool Refrigerator Clip
20	2161308 Whirlpool Refrigerator Rod
21	Fastener, Push-On
22	ESCUTCHEON, CONTROL BOX
23	Light Bar (FC)
24	Window
26	489203 Whirlpool Refrigerator Washer
27	2172931 Whirlpool Refrigerator Shield
28	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
