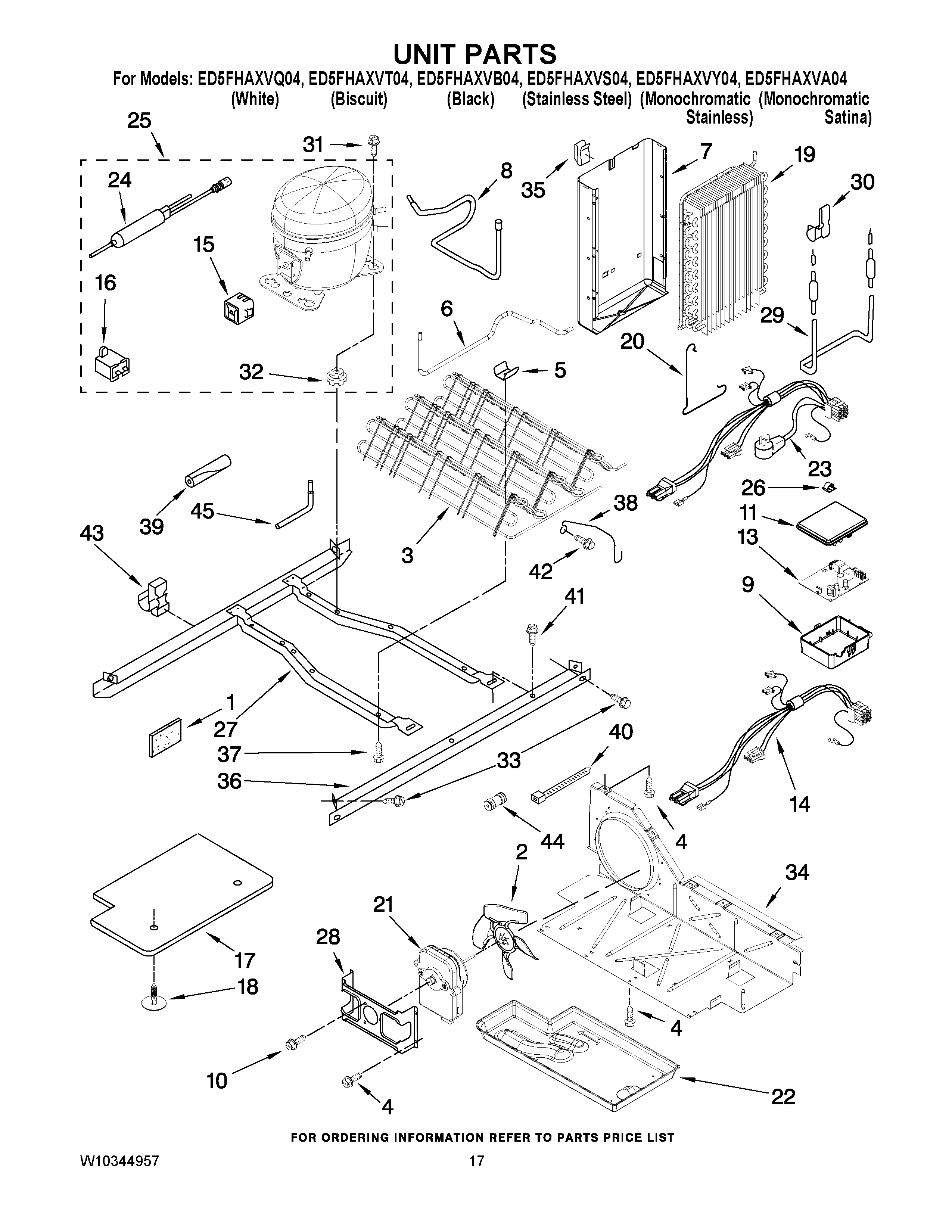

ED5FHAXVY04 11 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W11553819 Whirlpool Refrigerator Insulation
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	Tube, Condenser to Heat Loop
7	Heat Shield
8	W10528574 Whirlpool Refrigerator Tube
9	2326982 Whirlpool Refrigerator Control Box
10	WP8533993 Whirlpool Refrigerator Screw
11	Box Cover
13	ELEC CONTROL
14	WIRE ASSY, LV
15	WPW10189190 Whirlpool Start Device
16	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	Unit Cover, Bottom
18	489396 Whirlpool Refrigerator Clip
19	WP2188823 Whirlpool Refrigerator Evaporator
20	Clamp
21	WP2188874 Whirlpool Refrigerator Condenser Motor
22	WPW10614158 Whirlpool Refrigerator Evaporator Tray
23	2310425 Whirlpool Refrigerator Wire Harness
24	WPW10143759 Whirlpool Dryer Filter
25	W10233961 Whirlpool Refrigerator Compressor
26	WP1115374 Whirlpool Refrigerator Clip
27	2304904 Whirlpool Frame Assembly
28	WP2181929 Whirlpool Refrigerator Bracket
29	WP2323198 Whirlpool Refrigerator Heater
30	W11623163 Whirlpool Refrigerator Clip
31	876811 Whirlpool Grommet
32	W11661108 Whirlpool Grommet
33	489340 Whirlpool Refrigerator Screw
34	W10896764 Whirlpool Refrigerator Air Baffle
35	Clip, Heat Shield
36	2305374 Whirlpool Refrigerator Unit Rail
37	W11544659 Whirlpool Refrigerator Screw
38	W11661170 Whirlpool Clip
39	SLEEVE
40	WPW10339879 Whirlpool Wire Tie
41	WP489427 Whirlpool Refrigerator Screw
42	WP489478 Whirlpool Refrigerator Screw
43	W10169512 Whirlpool Clip
44	UNION
45	Tube, Process
