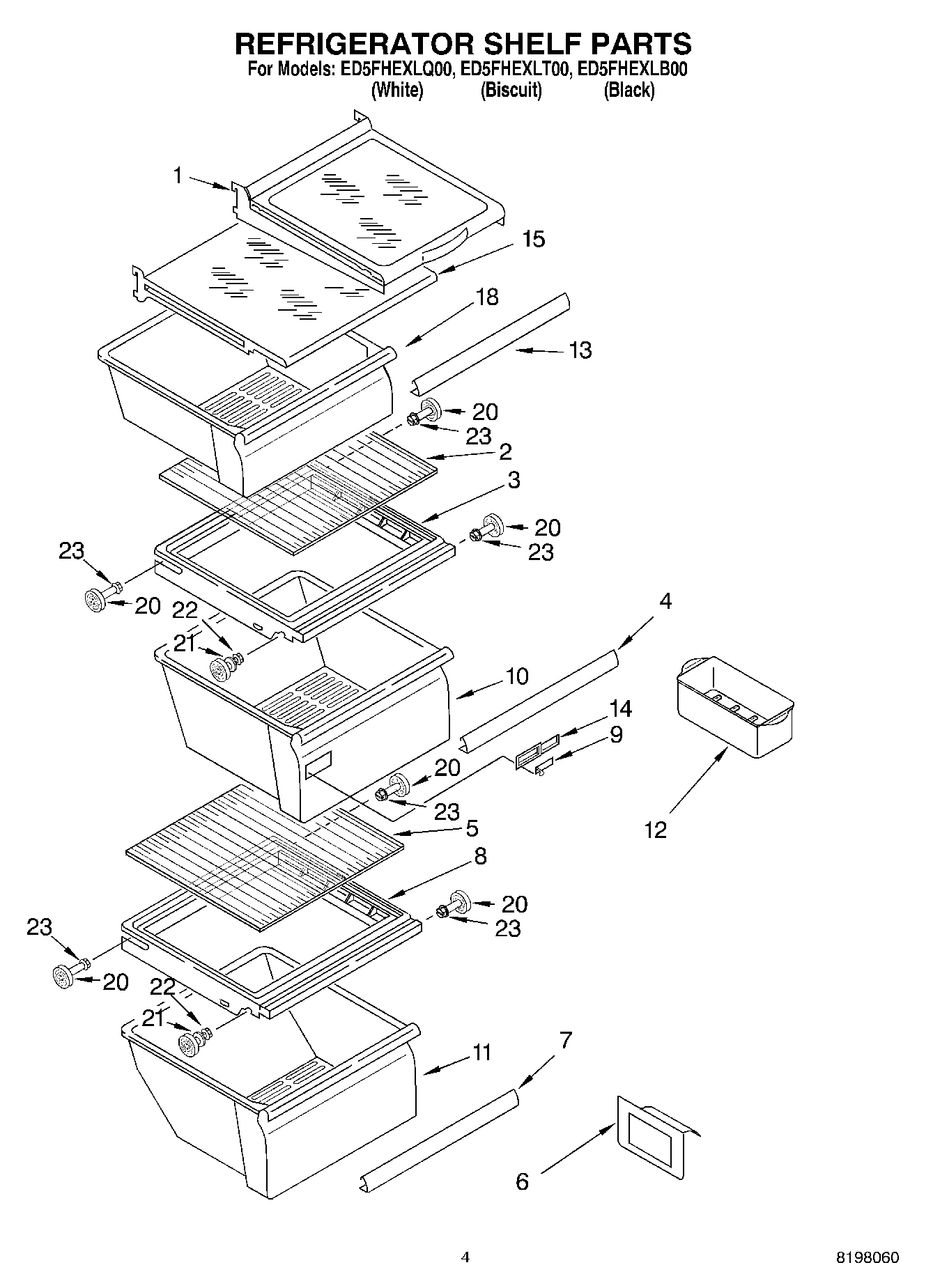

ED5FHEXLQ00 03 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Cantilever (2)
2	W10864399 Whirlpool Glass Shelf
3	W10508993 Whirlpool Refrigerator Cover Pan
6	2179350 Whirlpool Refrigerator Deflector
7	WP2179234 Whirlpool Refrigerator Pan Trim
8	Cover, Meat Pan
9	WP2179342 Whirlpool Refrigerator Slide
10	PAN-CRISPR
11	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
12	W10136387A Whirlpool Refrigerator Egg Container
13	WP2179243 Whirlpool Refrigerator Pan Trim
14	WP2179343 Whirlpool Refrigerator Control Body
15	Shelf, Snack Bin
18	W11497323 Whirlpool Snack Pan
20	WP2196483 Whirlpool Refrigerator Shelf Stud
21	W11223328 Whirlpool Refrigerator Shelf Stud
22	WP3-24004-109 Whirlpool Refrigerator Screw
23	WP3400806 Whirlpool Screw
