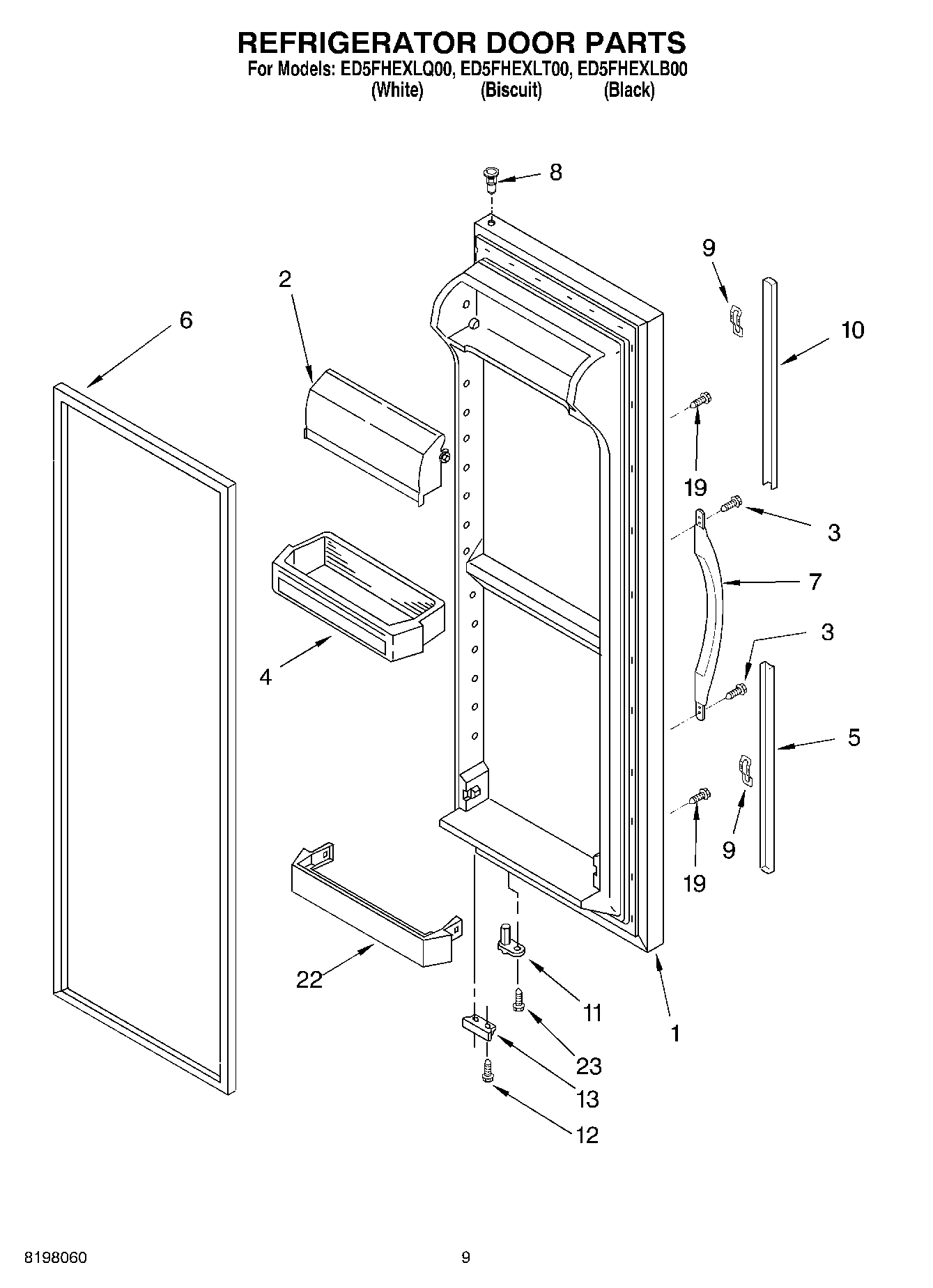

ED5FHEXLQ00 06 – REFRIGERATOR DOOR

ED5FHEXLQ00 06 – REFRIGERATOR DOOR

Written by

in

ED5FHEXLQ00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Biscuit)
1Refrigerator Door (Includes Item 6) (Black)
1Refrigerator Door (Includes Item 6) (White)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2203828 Whirlpool Door Shelf Bin
5Extension, Bottom (White)
5WP2194969B Whirlpool Refrigerator Handle Trim
5Extension, Bottom (Biscuit)
62159083 Whirlpool Gasket Door
62159075 Whirlpool Door Gasket Seal
7Handle, Center (White)
7WP2186649B Whirlpool Refrigerator Handle
7Handle, Center (Biscuit)
8WP2182181 Whirlpool Refrigerator Thimble
9WP2195327 Whirlpool Refrigerator Clip
10Extension, Top (Biscuit)
10Extension, Top (Black)
10WP2194973W Whirlpool Door Trim
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
19WP3400852 Whirlpool Refrigerator Screw
22WP2156022 Whirlpool Refrigerator Door Trim
23WP3400012 Whirlpool Refrigerator Screw
