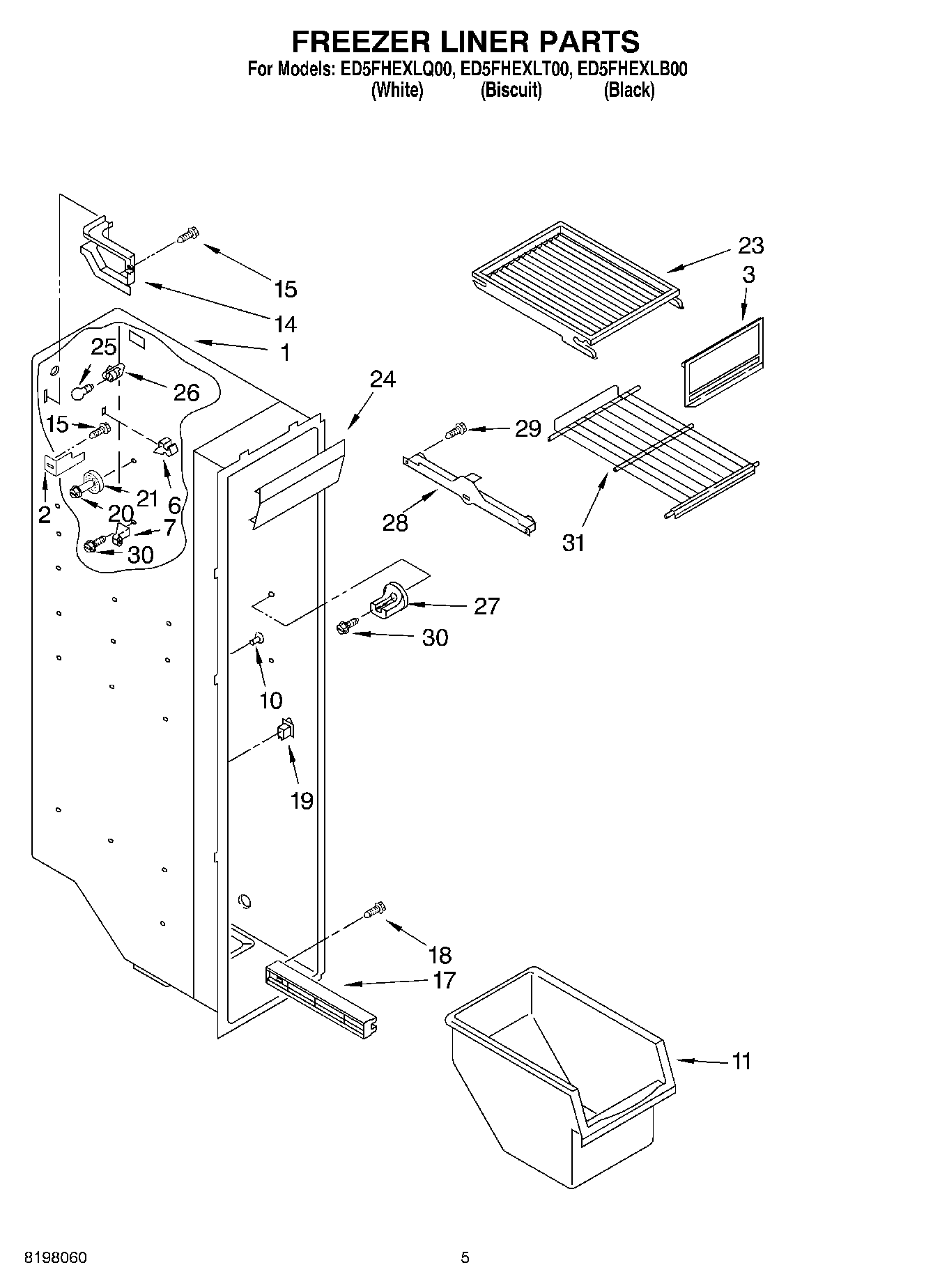

ED5FHEXLT00 04 – FREEZER LINER

ED5FHEXLT00 04 – FREEZER LINER

Written by

in

ED5FHEXLT00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Bracket, Fill Tube
3Door, Ice Compartment
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
10Grommet
11WP2182971 Whirlpool Refrigerator Freezer Bin
14Cover, Wiring
15SCREW
17Slide, Basket (Left Side (2))
17Slide, Basket (Right Side (2))
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP3400806 Whirlpool Screw
21WP2196483 Whirlpool Refrigerator Shelf Stud
23Shelf, Top Compartment
242171705 Whirlpool Refrigerator Light Lens
25RANGE ONLY 40W 120V APPL BULB
264387478 Whirlpool Refrigerator Light Socket
27Stud, Rear
28W10845585 Whirlpool Refrigerator Track
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
30W10142289 Whirlpool Air Conditioner Screw
31WP2174267 Whirlpool Refrigerator Wire Shelf
31Shelf (2)
