ED5FHEXLT00 10 – AIR FLOW

ED5FHEXLT00 10 – AIR FLOW

Written by

in

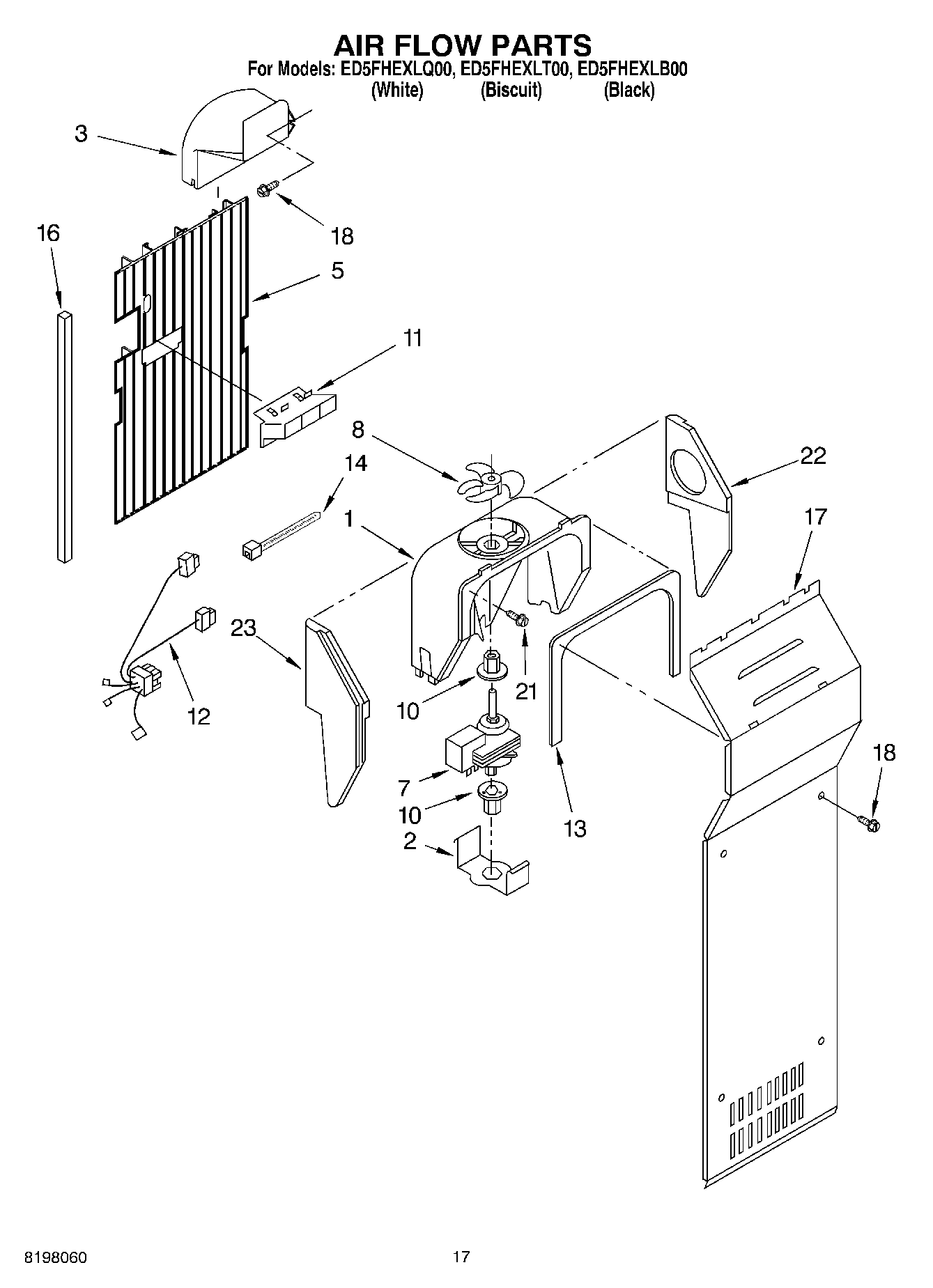

ED5FHEXLT00 10 – AIR FLOW

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Air Scoop
5Air Duct Freezer
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
10WP2176759 Whirlpool Refrigerator Grommet
112182146 Whirlpool Refrigerator Duct
12W11234406 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
164388500 Whirlpool Refrigerator Gasket
17Cover, Evaporator
18SCREW
21WP489478 Whirlpool Refrigerator Screw
224388358 Whirlpool Refrigerator Support Bracket
