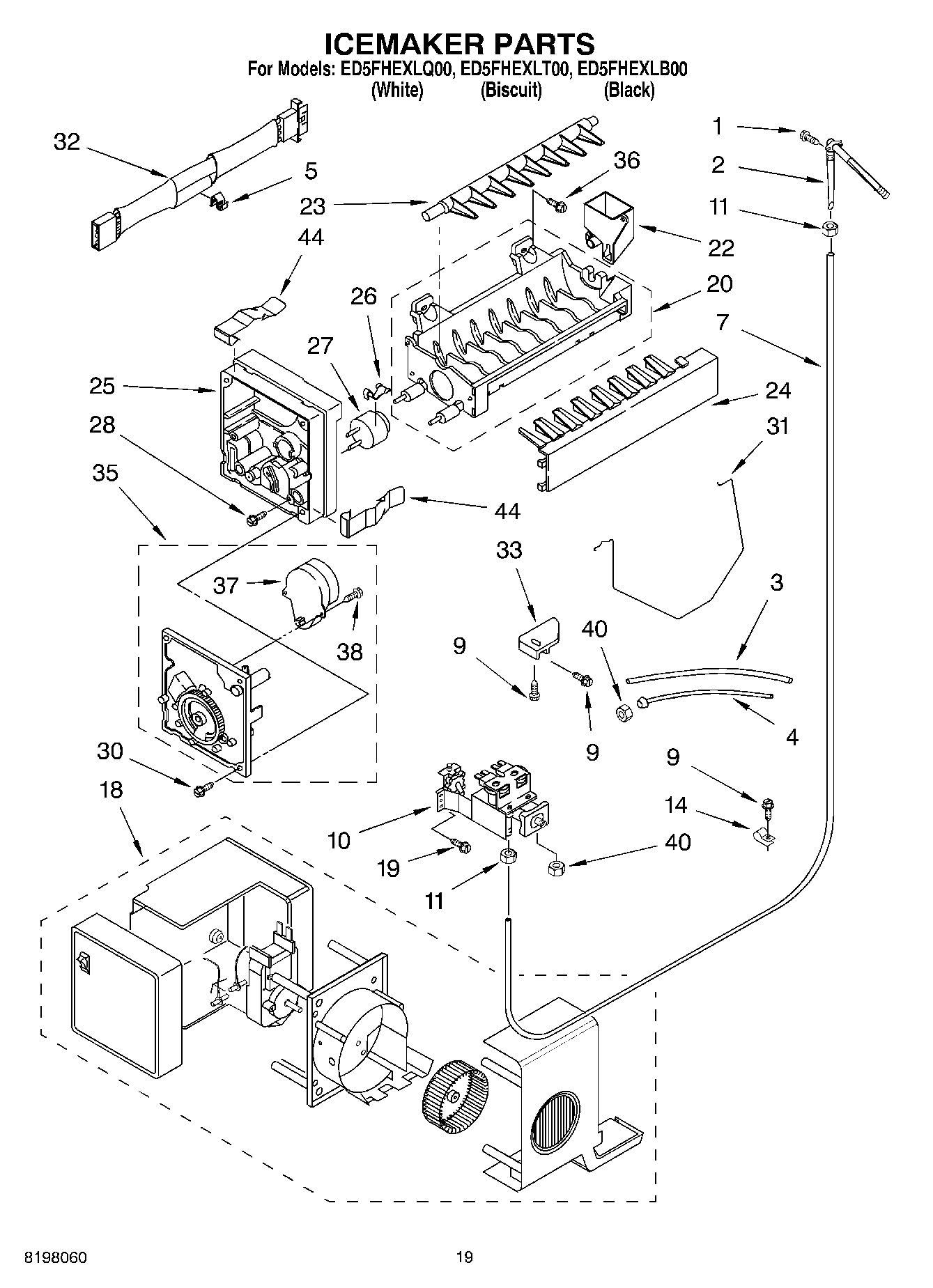

ED5FHEXLT00 12 – ICE MAKER, OPTIONAL

ED5FHEXLT00 12 – ICE MAKER, OPTIONAL

Written by

in

ED5FHEXLT00 12 – ICE MAKER, OPTIONAL

Products

Position	Product
2	WP2196157 Whirlpool Fill Tube
3	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
4	W11496481 Whirlpool Refrigerator Water Tube
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
11	WP627018 Whirlpool Refrigerator Nut
14	WP488366 Whirlpool Refrigerator Clamp
18	Acceler-Ice Assy.
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
27	Cement Alumilastic)
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
36	WP488163 Whirlpool Refrigerator Screw
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
44	Clip, Icemaker
100	212643 Whirlpool Refrigerator Permagum Sealer
100	285006 Whirlpool Spray
100	72032 Whirlpool Touch Up Paint Black
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
100	350930 Whirlpool White Spray Paint
100	833938 Whirlpool Refrigerator Terminal
100	Almond (Uncut)
100	WP72107 Whirlpool Touchup
100	WPW10312300 Whirlpool Refrigerator Ice Container
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	350956 Whirlpool Spray Assembly
100	350942 Whirlpool Spray Paint
100	4392899 Whirlpool Biscuit Touch-Up Paint
100	4392901 Whirlpool Biscuit Spray Paint
100	876370 Whirlpool Refrigerator Insulation
100	WP503695 Whirlpool Refrigerator Sealer
100	WP505587 Whirlpool Refrigerator Sealer
100	WP542638 Whirlpool Refrigerator Grease
100	Torx Key
100	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
100	TAPE, VINYL (3/4 X 108“)
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	Enamel, Black (1 Qt. Uncut)
100	WPL 799833
100	WPL 876029
100	511873 Whirlpool Refrigerator Paint
100	606755 Whirlpool Refrigerator Bag
