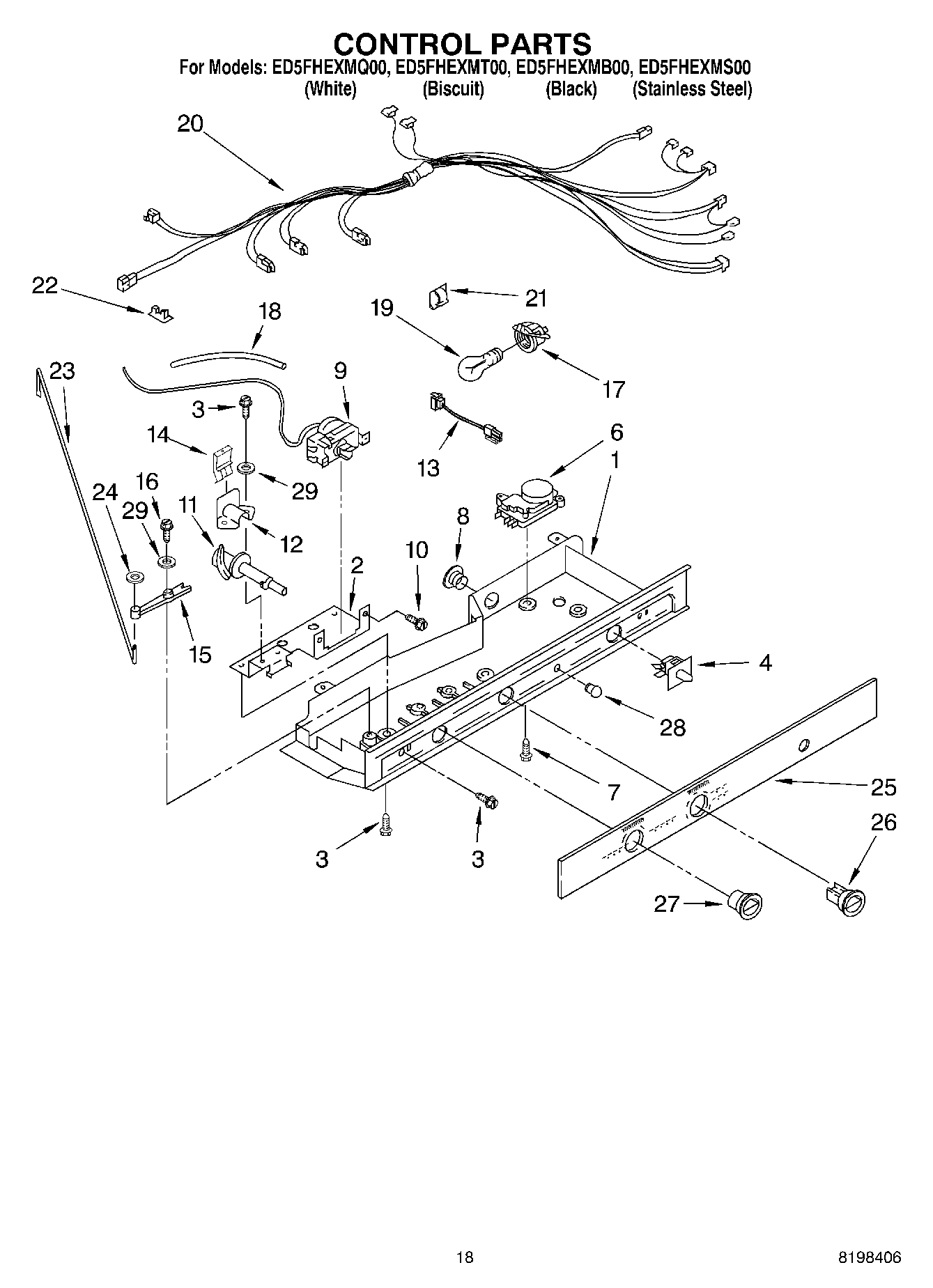

ED5FHEXMQ00 11 – CONTROL PARTS
Written by
in
ED5FHEXMQ00 11 – CONTROL PARTS
Products
Position
Product
1
Control Box
2
Mounting Bracket
3
WP3196557 Whirlpool Screw
4
WP2149705 Whirlpool Refrigerator Door Switch
6
WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7
489392 Whirlpool Refrigerator Screw
8
940014 Whirlpool Refrigerator Primary Button Plug
9
WP2198202 Whirlpool Refrigerator Temperature Thermostat
10
WP965173 Whirlpool Dishwasher Screw
11
WP2182195 Whirlpool Refrigerator Cam
12
1110560 Whirlpool Refrigerator Bearing
13
W10853646 Whirlpool Indicator Light
14
WP2196062 Whirlpool Refrigerator Clip
15
Pivot Arm
16
627068 Whirlpool Refrigerator Screw
17
4387478 Whirlpool Refrigerator Light Socket
18
WP2196003 Whirlpool Refrigerator Bar Riser
19
RANGE ONLY 40W 120V APPL BULB
20
2311632 Whirlpool Refrigerator Wire Harness
21
WP1115374 Whirlpool Refrigerator Clip
22
CLIP, WIRING
23
Connecting Rod
24
Fastener, Push-On
25
Escutcheon, Control Box
26
2182111 Whirlpool Refrigerator Thermal Knob
27
Knob, Air Control
28
COVER, LIGHT LENS
29
489203 Whirlpool Refrigerator Washer
←
