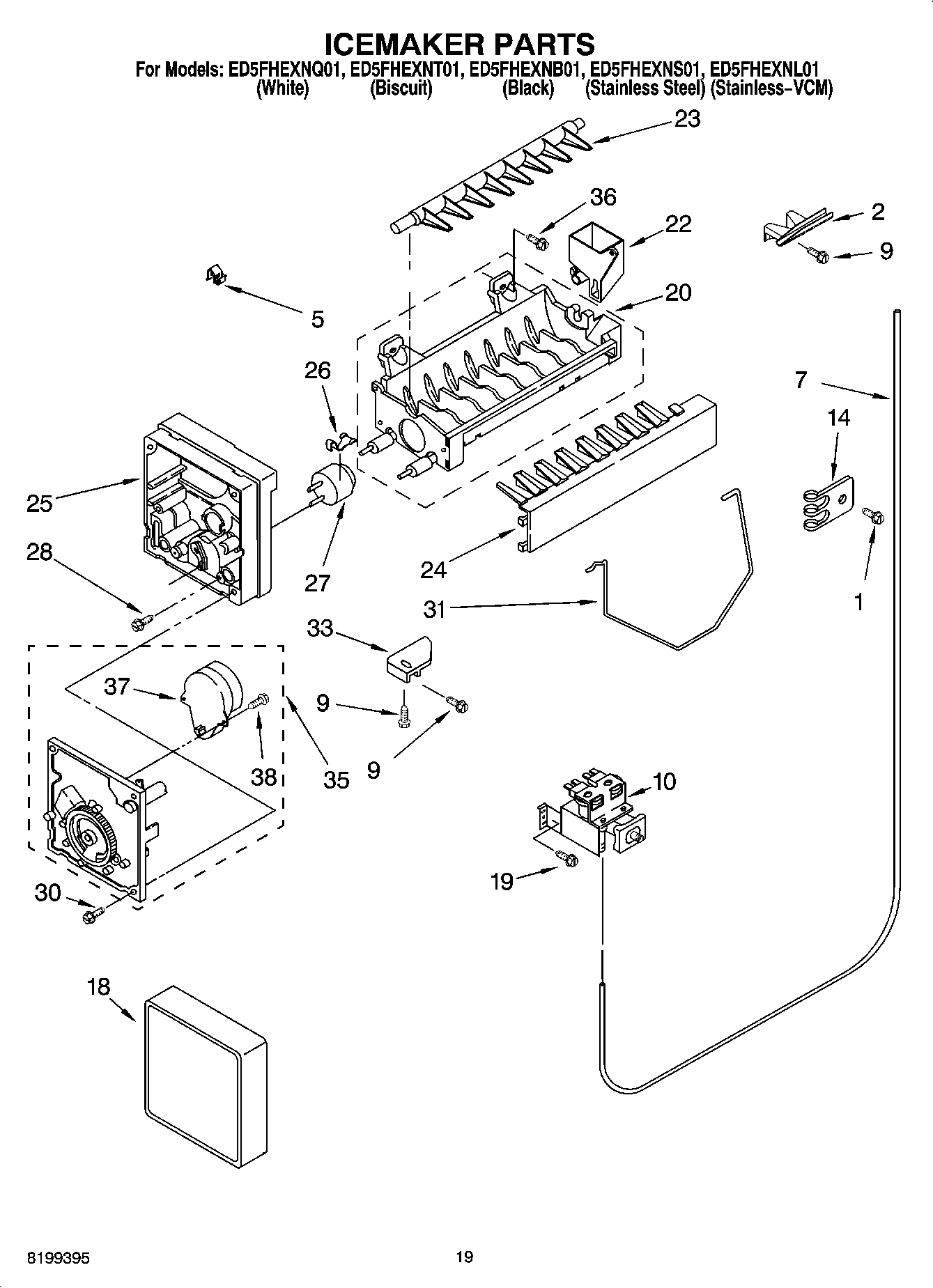

ED5FHEXNS01 12 – ICEMAKER PARTS, OPTIONAL PARTS

ED5FHEXNS01 12 – ICEMAKER PARTS, OPTIONAL PARTS

Written by

in

ED5FHEXNS01 12 – ICEMAKER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI33692A2
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	833938 Whirlpool Refrigerator Terminal
	606755 Whirlpool Refrigerator Bag
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	WPL ARI33691A9
	WPL ARI33690A5
	WPL ARI33689A8
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	WPL ARI33693A3
	WPL 876029
	WPL 799833
	Enamel, Black (1 Qt. Uncut)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	350942 Whirlpool Spray Paint
	WPW10312300 Whirlpool Refrigerator Ice Container
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	212643 Whirlpool Refrigerator Permagum Sealer
	350930 Whirlpool White Spray Paint
2	W11505385 Whirlpool Refrigerator Chute
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
14	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
33	W11500948 Whirlpool Refrigerator Bracket
35	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
36	WP488163 Whirlpool Refrigerator Screw
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
