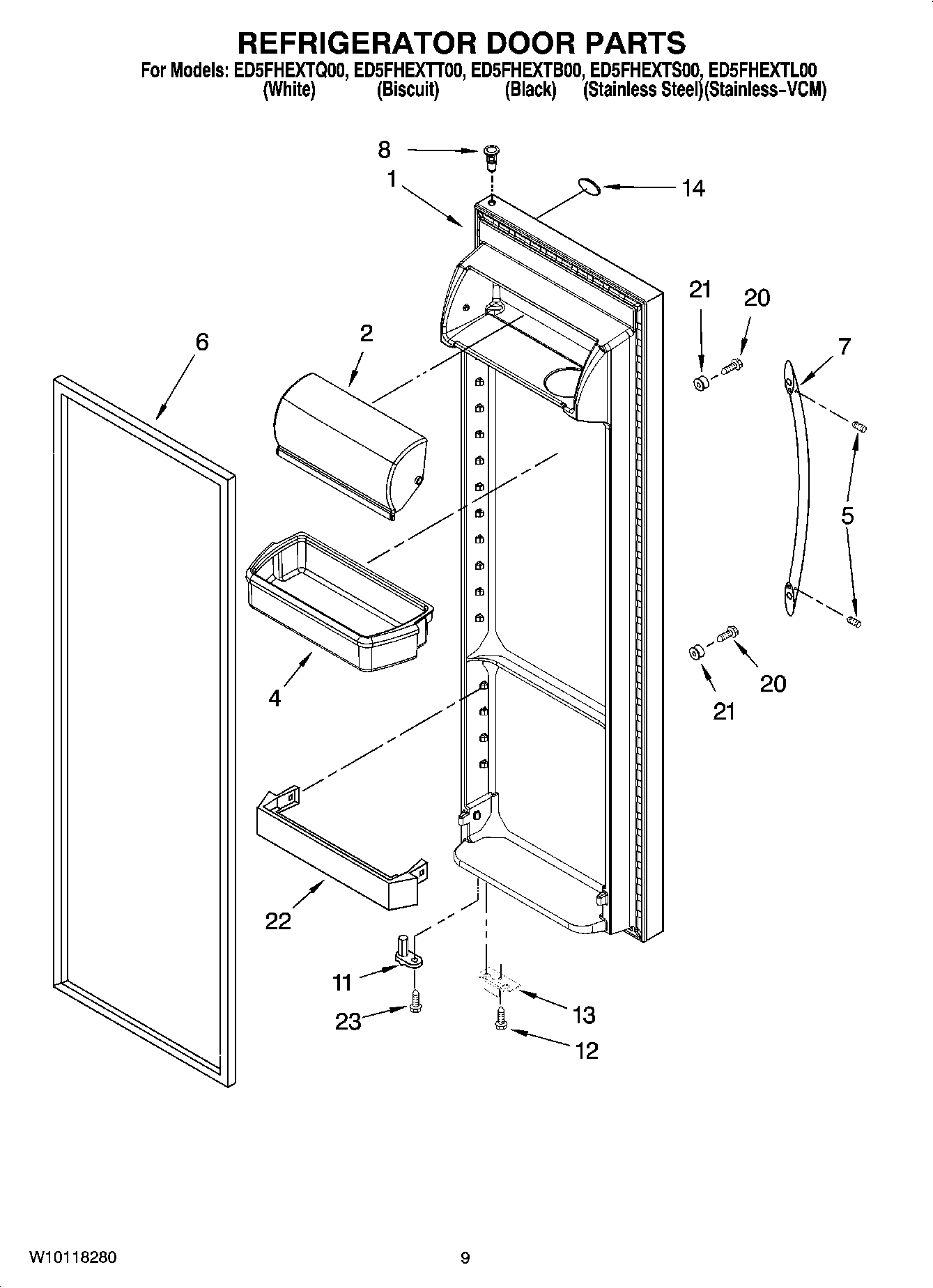

ED5FHEXTQ00 06 – REFRIGERATOR DOOR PARTS

ED5FHEXTQ00 06 – REFRIGERATOR DOOR PARTS

Written by

in

ED5FHEXTQ00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Stainless Steel)
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Biscuit)
1Refrigerator Door (Includes Item 6) (Black)
1Refrigerator Door (Includes Item 6) (Stainless-VCM)
2WP2256101 Whirlpool Dairy Door
4WPW10321304 Whirlpool Refrigerator Door Shelf Bin
5SCREW
62159075 Whirlpool Door Gasket Seal
62159083 Whirlpool Gasket Door
7Handle (Biscuit)
7WP2254600W Whirlpool Refrigerator Handle
7WP2254600B Whirlpool Refrigerator Handle
7Handle (Stainless)
8WP2182181 Whirlpool Refrigerator Thimble
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14WP2213265 Whirlpool Refrigerator Nameplate
20WP488163 Whirlpool Refrigerator Screw
21WPW10170540 Whirlpool Screw
22WP2156022 Whirlpool Refrigerator Door Trim
23WP3400012 Whirlpool Refrigerator Screw
