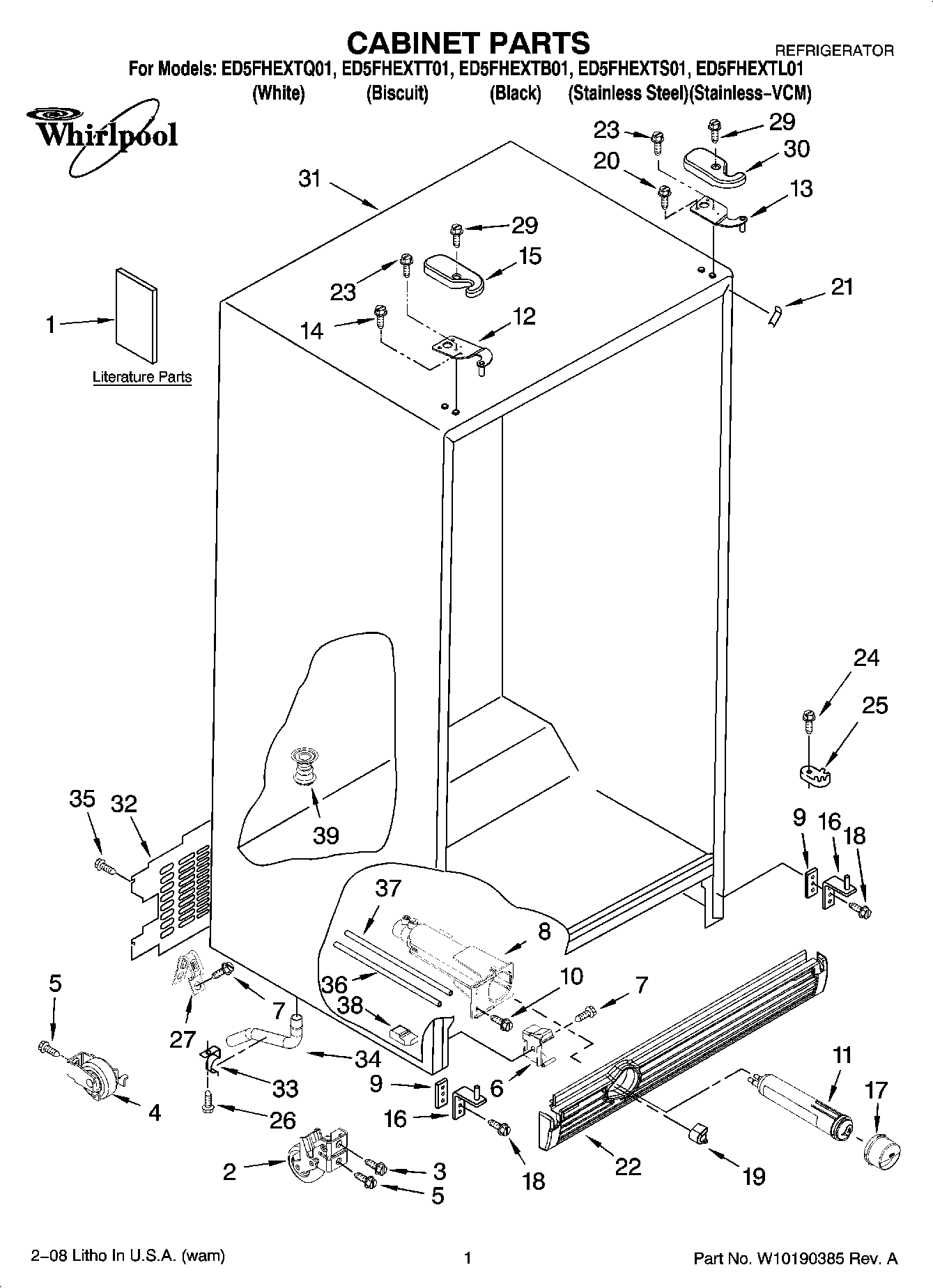

ED5FHEXTS01 01 – CABINET PARTS

ED5FHEXTS01 01 – CABINET PARTS

Written by

in

ED5FHEXTS01 01 – CABINET PARTS

Products

PositionProduct
1INSTRUCTION SHEET (DOOR REMOVAL)
1Energy Label
1Service & Wiring Sheet
1Modular Icemaker Service Sheet
1Use & Care Guide
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WPW10121138 Whirlpool Refrigerator Water Filter Housing
9WP2181911 Whirlpool Refrigerator Shim
10WP489500 Whirlpool Refrigerator Screw
11FILTER 3-SINGLE TEAL
12WP2203770 Whirlpool Refrigerator Door Hinge
13WP2203771 Whirlpool Refrigerator Door Hinge
14WP489128 Whirlpool Refrigerator Screw
15WP2203407B Whirlpool Refrigerator Cover
15WP2203407W Whirlpool Refrigerator Cover
152203407T Whirlpool Refrigerator Cover
168201707 Whirlpool Door Hinge
17WP2260518W Whirlpool Refrigerator Filter Cap
17Cap, Water Filter (Biscuit)
17WP2260518B Whirlpool Water Filter Cap
18WP489497 Whirlpool Screw
192260503W Whirlpool Refrigerator Button
19WP2260503B Whirlpool Refrigerator Button
20W10853301 Whirlpool Refrigerator Screw
21Filler, Wrapper (White)
21Filler, Wrapper (Black)
21Filler, Wrapper (Biscuit)
22WPW10311032 Whirlpool Refrigerator Grille
22Grille (Biscuit)
22WPW10311033 Whirlpool Refrigerator Grille
24WP489483 Whirlpool Screw
25WPW10329686 Whirlpool Door Cam Black
27549193 Whirlpool Refrigerator Power Clamp
29WP8281227 Whirlpool Screw
30Hinge Cover (Biscuit)
30WP2203408W Whirlpool Refrigerator Cover
30WP2203408B Whirlpool Refrigerator Cover
31Cabinet, (Not A Serviceable Part)
32WP2188755 Whirlpool Rear Panel
33WP1108439 Whirlpool Refrigerator Clip
34WP1108438 Whirlpool Refrigerator Extension
35WP489464 Whirlpool Refrigerator Screw
36WPW10350006 Whirlpool Refrigerator Water Tube
378201597 Whirlpool Inlet Water Fill Tube Kit Filter
38Block, Housing Support
39W11566763 Whirlpool Fitting
