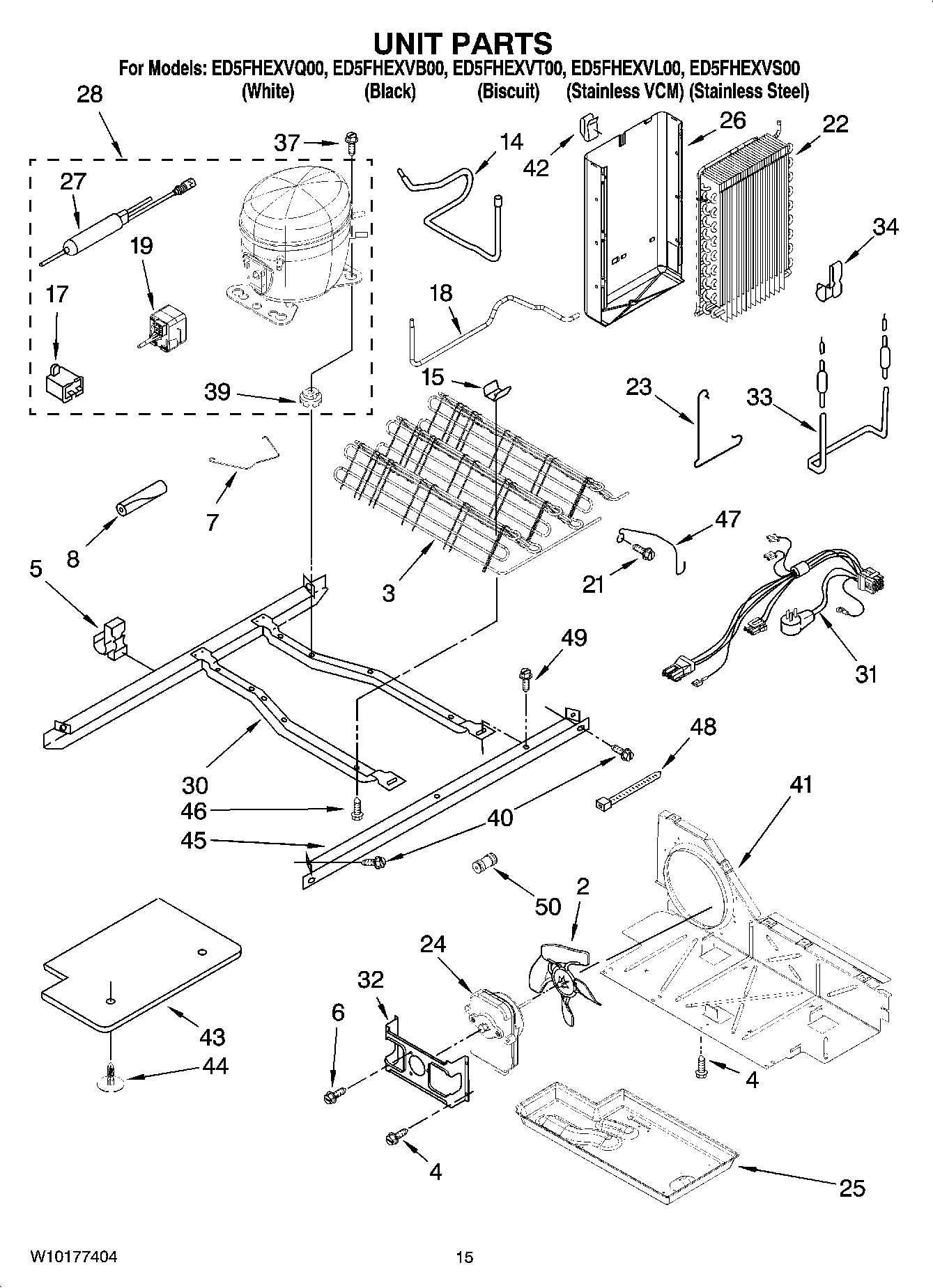

ED5FHEXVL00 09 – UNIT PARTS

ED5FHEXVL00 09 – UNIT PARTS

Written by

in

ED5FHEXVL00 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	Clip, Retaining
8	SLEEVE
14	WP2205765 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	2261599 Whirlpool Refrigerator Tube
19	WPW10189190 Whirlpool Start Device
19	W10896198 Whirlpool Refrigerator Start Device
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	W10139462 Whirlpool Refrigerator Compressor
30	2304904 Whirlpool Frame Assembly
31	2311733 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	Clamp
39	876811 Whirlpool Grommet
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
45	2305374 Whirlpool Refrigerator Unit Rail
46	W11544659 Whirlpool Refrigerator Screw
47	2260517 Whirlpool Fan Guard
48	WPW10339879 Whirlpool Wire Tie
49	WP489427 Whirlpool Refrigerator Screw
50	WP4373559 Whirlpool Fitting
