ED5FHEXVL01 02 – REFRIGERATOR LINER PARTS

ED5FHEXVL01 02 – REFRIGERATOR LINER PARTS

Written by

in

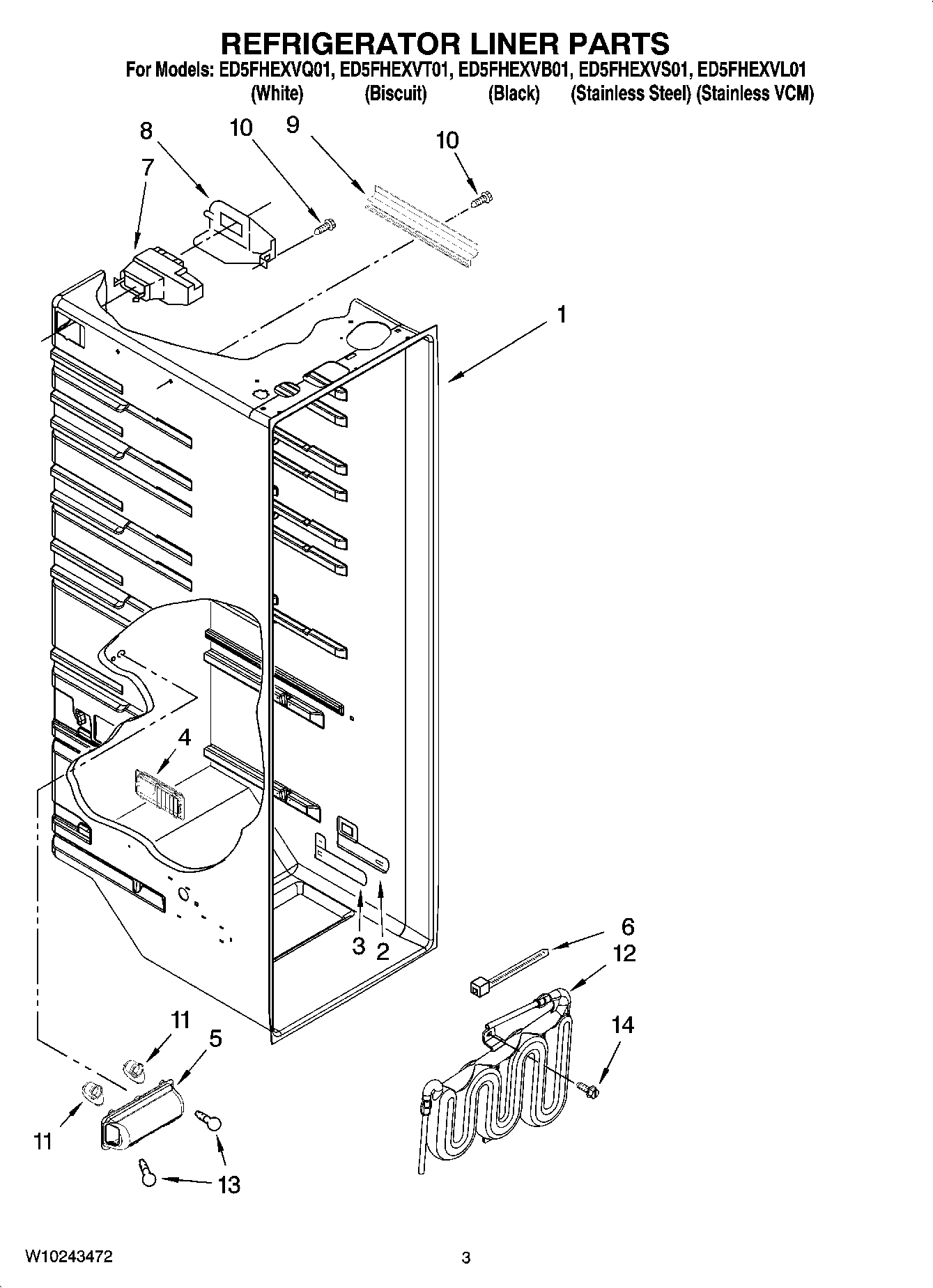

ED5FHEXVL01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6WPW10339879 Whirlpool Wire Tie
7WPW10151374 Whirlpool Refrigerator Diffuser
82152019 Whirlpool Refrigerator Cover
92150331 Whirlpool Refrigerator Wire Cover
10W10759522 Whirlpool Screw
114387478 Whirlpool Refrigerator Light Socket
12RESERVOIR
13RANGE ONLY 40W 120V APPL BULB
14Screw (2)
