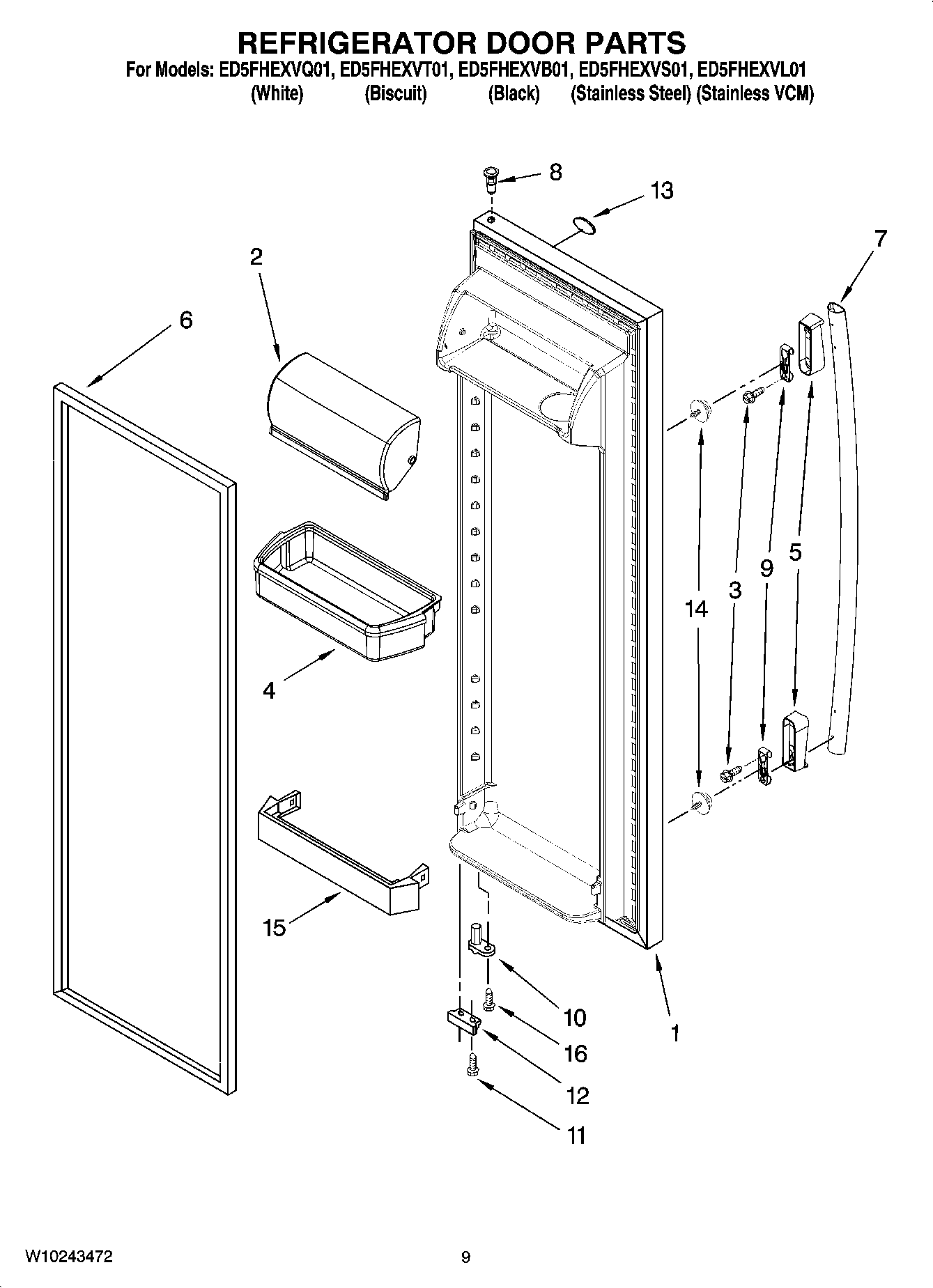

ED5FHEXVL01 06 – REFRIGERATOR DOOR PARTS

ED5FHEXVL01 06 – REFRIGERATOR DOOR PARTS

Written by

in

ED5FHEXVL01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Biscuit)
1Refrigerator Door (Includes Item 6) (Stainless)
1Refrigerator Door (Includes Item 6) (Stainless-VCM)
1Refrigerator Door (Includes Item 6) (Black)
2WP2256101 Whirlpool Dairy Door
3W10267047 Whirlpool Screw
4WPW10321304 Whirlpool Refrigerator Door Shelf Bin
5Handle, Endcap (Stainless, All)
5Handle, Endcap (Black)
5W10127813 Whirlpool Refrigerator Handle Endcap
62159075 Whirlpool Door Gasket Seal
62159083 Whirlpool Gasket Door
7W10210943A Whirlpool Refrigerator Handle
7W10273556 Whirlpool Refrigerator Handle
7W10210944A Whirlpool Refrigerator Handle M
7W10210942A Whirlpool Refrigerator Handle
8WP2182181 Whirlpool Refrigerator Thimble
9WP2255411 Whirlpool Refrigerator Clip
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12WP2206629B Whirlpool Refrigerator Bracket
13WP2213265 Whirlpool Refrigerator Nameplate
14WPW10288153 Whirlpool Refrigerator Screw
15WP2309941 Whirlpool Refrigerator Door Bar Trim
16WP3400012 Whirlpool Refrigerator Screw
