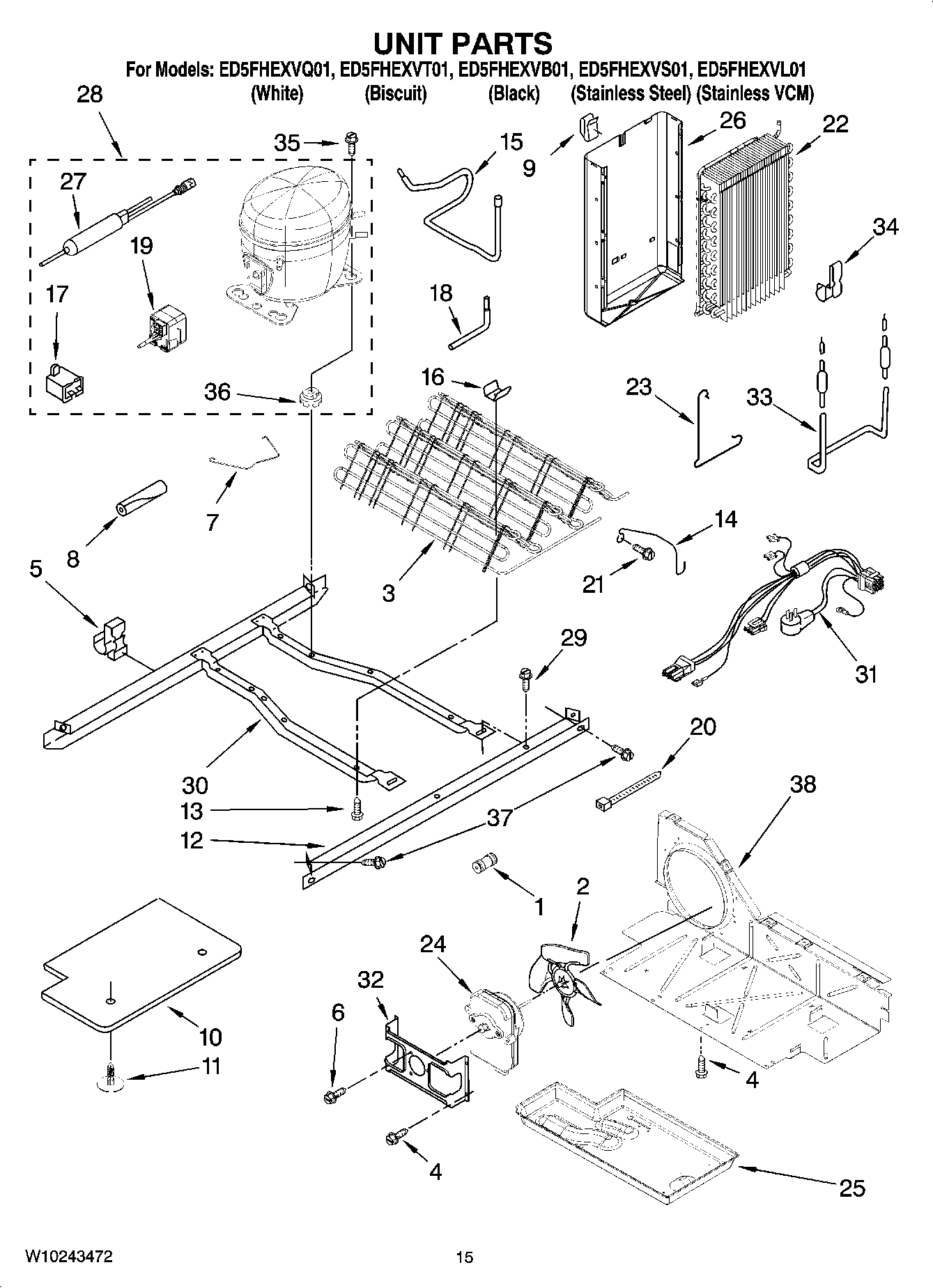

ED5FHEXVL01 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
	WP978025 Whirlpool Refrigerator Valve
1	WPW10334458 Whirlpool Refrigerator Connector
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	W10204187 Whirlpool Refrigerator Retainer
8	SLEEVE
9	Clip, Heat Shield
10	Unit Cover, Bottom
11	489396 Whirlpool Refrigerator Clip
12	WPW10196323 Whirlpool Refrigerator Rail Assembly
13	W11544659 Whirlpool Refrigerator Screw
14	2260517 Whirlpool Fan Guard
15	WP2205765 Whirlpool Refrigerator Tube
16	W10683556 Whirlpool Refrigerator Clip
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	W10858105 Whirlpool Refrigerator Tube
19	WPW10189190 Whirlpool Start Device
19	W10896198 Whirlpool Refrigerator Start Device
20	WPW10339879 Whirlpool Wire Tie
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	W10194475 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10139462 Whirlpool Refrigerator Compressor
29	WP489427 Whirlpool Refrigerator Screw
30	W10196321 Whirlpool Refrigerator Frame
31	2311733 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	Clamp
36	876811 Whirlpool Grommet
36	WP4387558 Whirlpool Refrigerator Compressor Grommet
37	489340 Whirlpool Refrigerator Screw
38	Air Baffle
