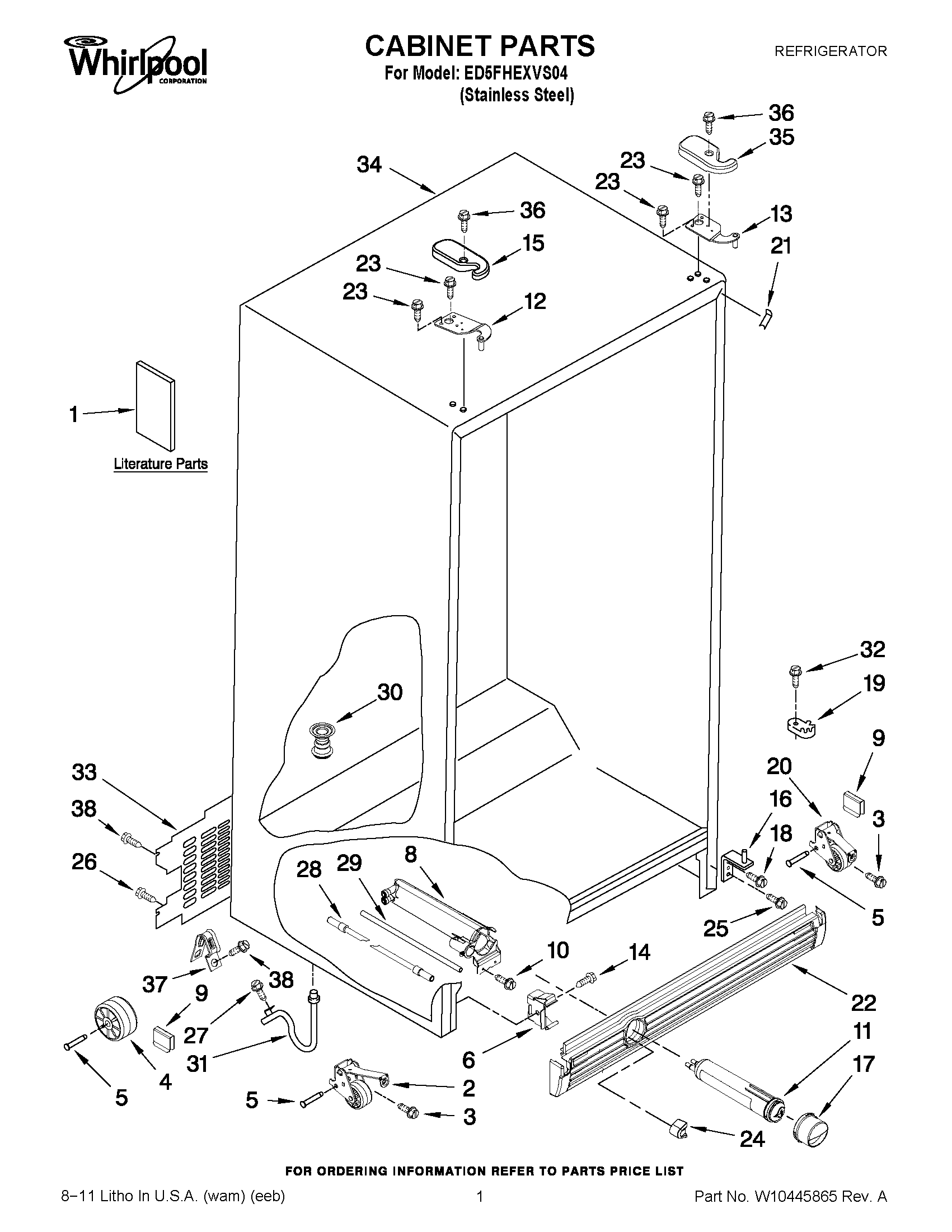

ED5FHEXVS04 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Service & Wiring Sheet
1	USE & CARE GUIDE
1	Modular Icemaker Service Sheet
1	INSTRUCTION SHEET (DOOR REMOVAL)
2	WPW10304660 Whirlpool Wheel Assembly
3	WP489427 Whirlpool Refrigerator Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2174706 Whirlpool Refrigerator Pin Hitch
10	WP489500 Whirlpool Refrigerator Screw
11	FILTER 3-SINGLE TEAL
12	HINGE TOP (FC)
13	HINGE TOP (RC)
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407B Whirlpool Refrigerator Cover
16	HINGE BOTTOM
17	WP2260518B Whirlpool Water Filter Cap
18	WP489497 Whirlpool Screw
19	WPW10329686 Whirlpool Door Cam Black
20	WPW10304659 Whirlpool Wheel Assembly
21	W11252732 Whirlpool Refrigerator Filler
22	WPW10311033 Whirlpool Refrigerator Grille
24	WP2260503B Whirlpool Refrigerator Button
25	W10856122 Whirlpool Refrigerator Screw
26	WP488488 Whirlpool Refrigerator Screw
27	WP489464 Whirlpool Refrigerator Screw
28	TUBE, FILTER INLET
29	WPW10350006 Whirlpool Refrigerator Water Tube
30	W11566763 Whirlpool Fitting
31	W11512417 Whirlpool Drain Connector
32	WP489483 Whirlpool Screw
33	WP2188755 Whirlpool Rear Panel
34	CABINET (NOT A SERVICEABLE PART)
35	WP2203408B Whirlpool Refrigerator Cover
36	WP8281227 Whirlpool Screw
37	549193 Whirlpool Refrigerator Power Clamp
