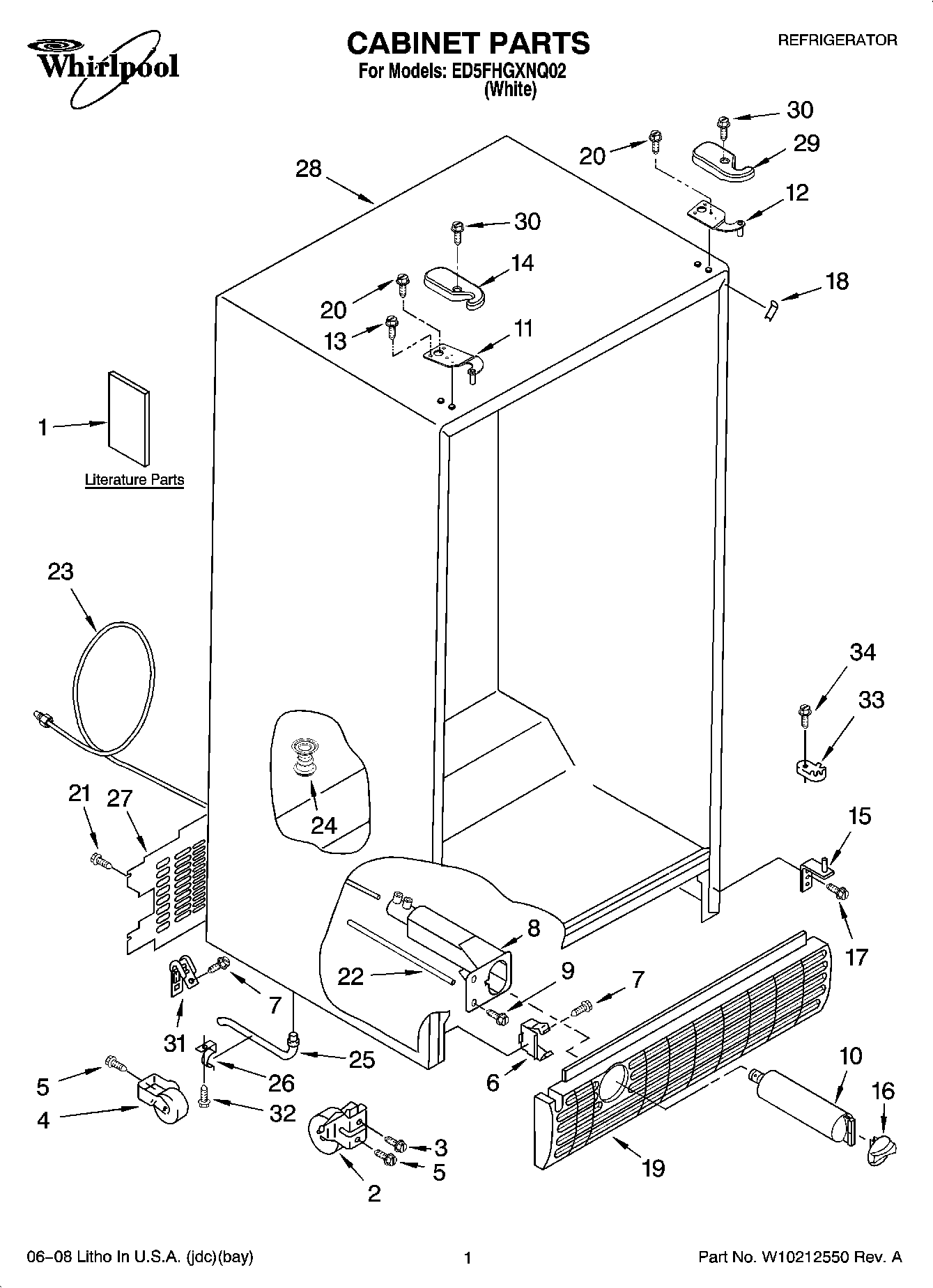

ED5FHGXNQ02 01 – CABINET PARTS

Products

PositionProduct
1INSTRUCTION SHEET, DOOR REMOVAL
1Energy Guide
1Service & Wiring Sheet
1Modular Icemaker Service Sheet
1Use & Care Guide
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2186443 Whirlpool Water Filter Housing
9WP489500 Whirlpool Refrigerator Screw
10EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
11WP2203770 Whirlpool Refrigerator Door Hinge
12WP2203771 Whirlpool Refrigerator Door Hinge
13WP489128 Whirlpool Refrigerator Screw
14WP2203407W Whirlpool Refrigerator Cover
15W10138965 Whirlpool Refrigerator Door Hinge
16WP2186494W Whirlpool Water Filter Cap
17WP489497 Whirlpool Screw
18Filler, Wrapper (White)
19W10803964 Whirlpool Grille Assembly
21WP489464 Whirlpool Refrigerator Screw
22WPW10350006 Whirlpool Refrigerator Water Tube
238201597 Whirlpool Inlet Water Fill Tube Kit Filter
24W11566763 Whirlpool Fitting
25WP1108438 Whirlpool Refrigerator Extension
26WP1108439 Whirlpool Refrigerator Clip
27WP2188755 Whirlpool Rear Panel
28Cabinet, (Not A Serviceable Part)
29WP2203408W Whirlpool Refrigerator Cover
30WP8281227 Whirlpool Screw
31549193 Whirlpool Refrigerator Power Clamp
33WPW10329686 Whirlpool Door Cam Black
34WP489483 Whirlpool Screw
