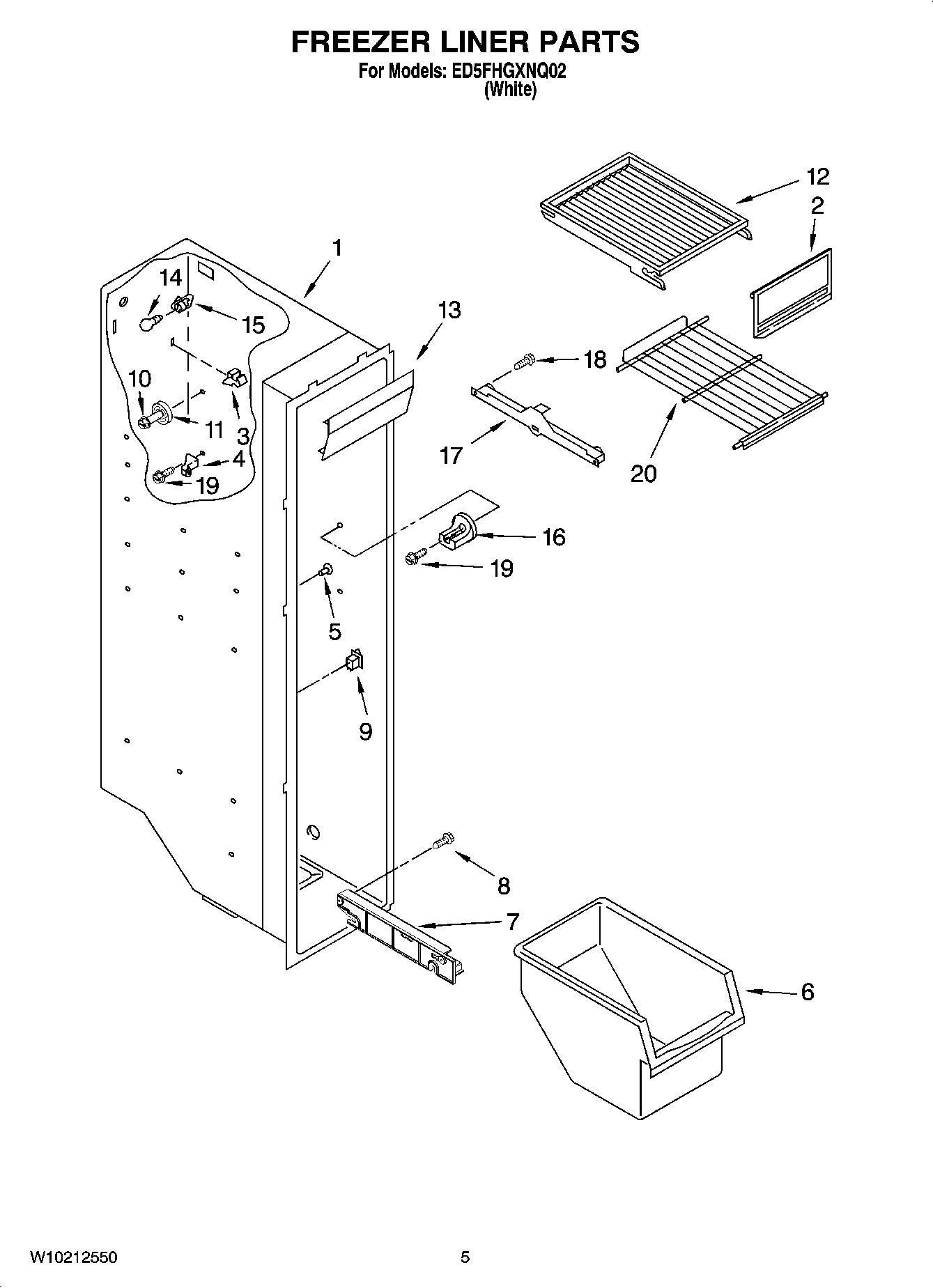

ED5FHGXNQ02 04 – FREEZER LINER PARTS

ED5FHGXNQ02 04 – FREEZER LINER PARTS

Written by

in

ED5FHGXNQ02 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2WP2171713 Whirlpool Refrigerator Ice Door
32215823 Whirlpool Refrigerator Clip
44388405 Whirlpool Refrigerator Shelf Stud
5Grommet
6WP2182971 Whirlpool Refrigerator Freezer Bin
7Slide, Basket (Left Side)
7WP2261449 Whirlpool Refrigerator Track
8W10759522 Whirlpool Screw
9W11457217 Whirlpool Refrigerator Rocker Switch Combination
10WP3400806 Whirlpool Screw
11WP2196483 Whirlpool Refrigerator Shelf Stud
12Shelf, Top Compartment
132171705 Whirlpool Refrigerator Light Lens
14RANGE ONLY 40W 120V APPL BULB
154387478 Whirlpool Refrigerator Light Socket
16Stud, Rear
17W10845585 Whirlpool Refrigerator Track
17W10845583 Whirlpool Refrigerator Track
18718257 Whirlpool Dishwasher Screw
19W10142289 Whirlpool Air Conditioner Screw
20WP2174267 Whirlpool Refrigerator Wire Shelf
20Shelf (2)
