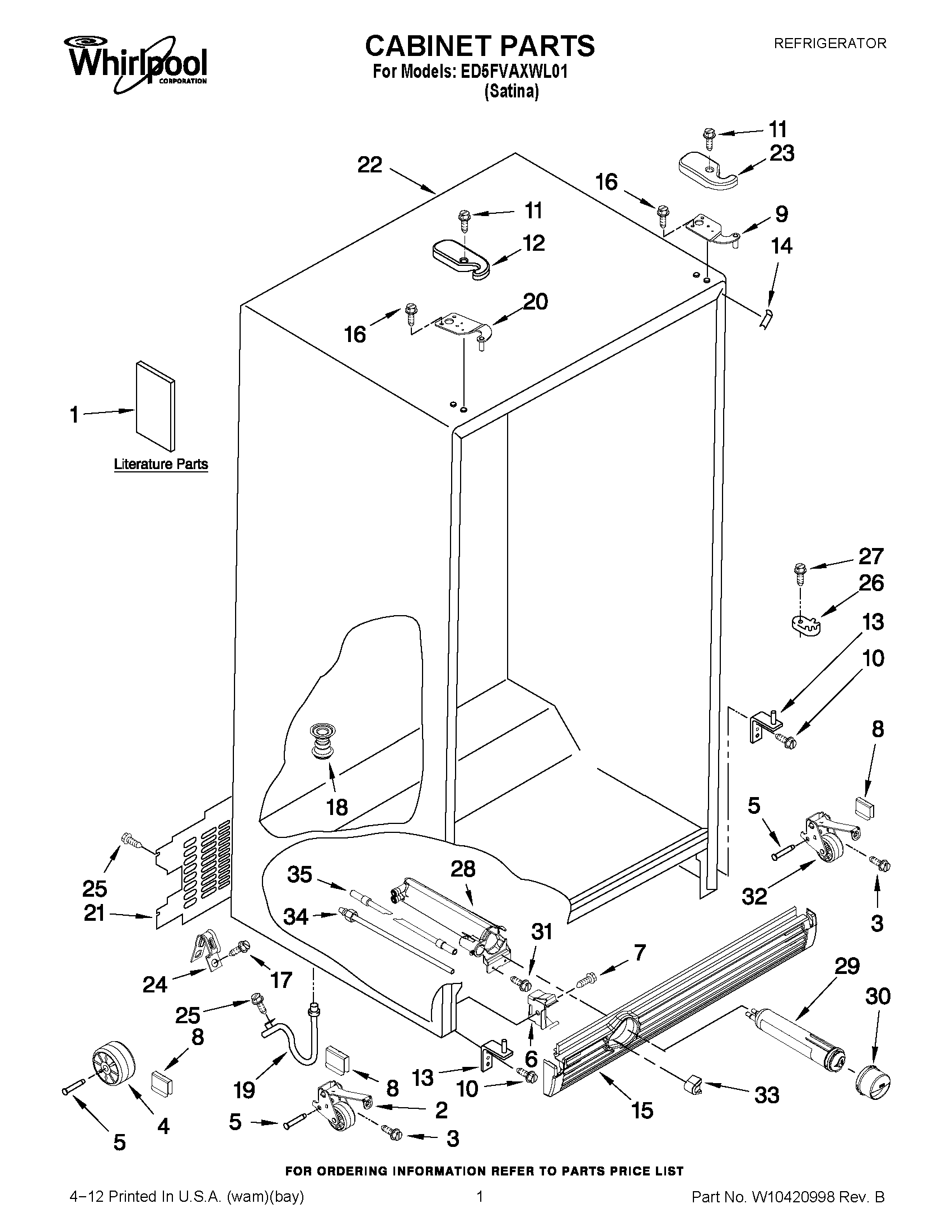

ED5FVAXWL01 01 – CABINET PARTS

ED5FVAXWL01 01 – CABINET PARTS

Written by

in

ED5FVAXWL01 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Service & Wiring Sheet
1USE & CARE GUIDE
1Modular Icemaker Service Sheet
1INSTRUCTION SHEET (DOOR REMOVAL)
2WPW10304660 Whirlpool Wheel Assembly
3WP489427 Whirlpool Refrigerator Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2174706 Whirlpool Refrigerator Pin Hitch
9HINGE TOP (RC)
10WP489497 Whirlpool Screw
11WP8281227 Whirlpool Screw
12WP2203407B Whirlpool Refrigerator Cover
13HINGE BOTTOM
14W11252732 Whirlpool Refrigerator Filler
15WPW10311033 Whirlpool Refrigerator Grille
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19W11512417 Whirlpool Drain Connector
20HINGE TOP (FC)
21WP2188755 Whirlpool Rear Panel
22CABINET (NOT A SERVICEABLE PART)
23WP2203408B Whirlpool Refrigerator Cover
24549193 Whirlpool Refrigerator Power Clamp
26WPW10329686 Whirlpool Door Cam Black
27WP489483 Whirlpool Screw
28WPW10121138 Whirlpool Refrigerator Water Filter Housing
29FILTER 3-SINGLE TEAL
30WP2260518B Whirlpool Water Filter Cap
31WP489500 Whirlpool Refrigerator Screw
32WPW10304659 Whirlpool Wheel Assembly
33WP2260503B Whirlpool Refrigerator Button
34WPW10350006 Whirlpool Refrigerator Water Tube
35TUBE, FILTER INLET
