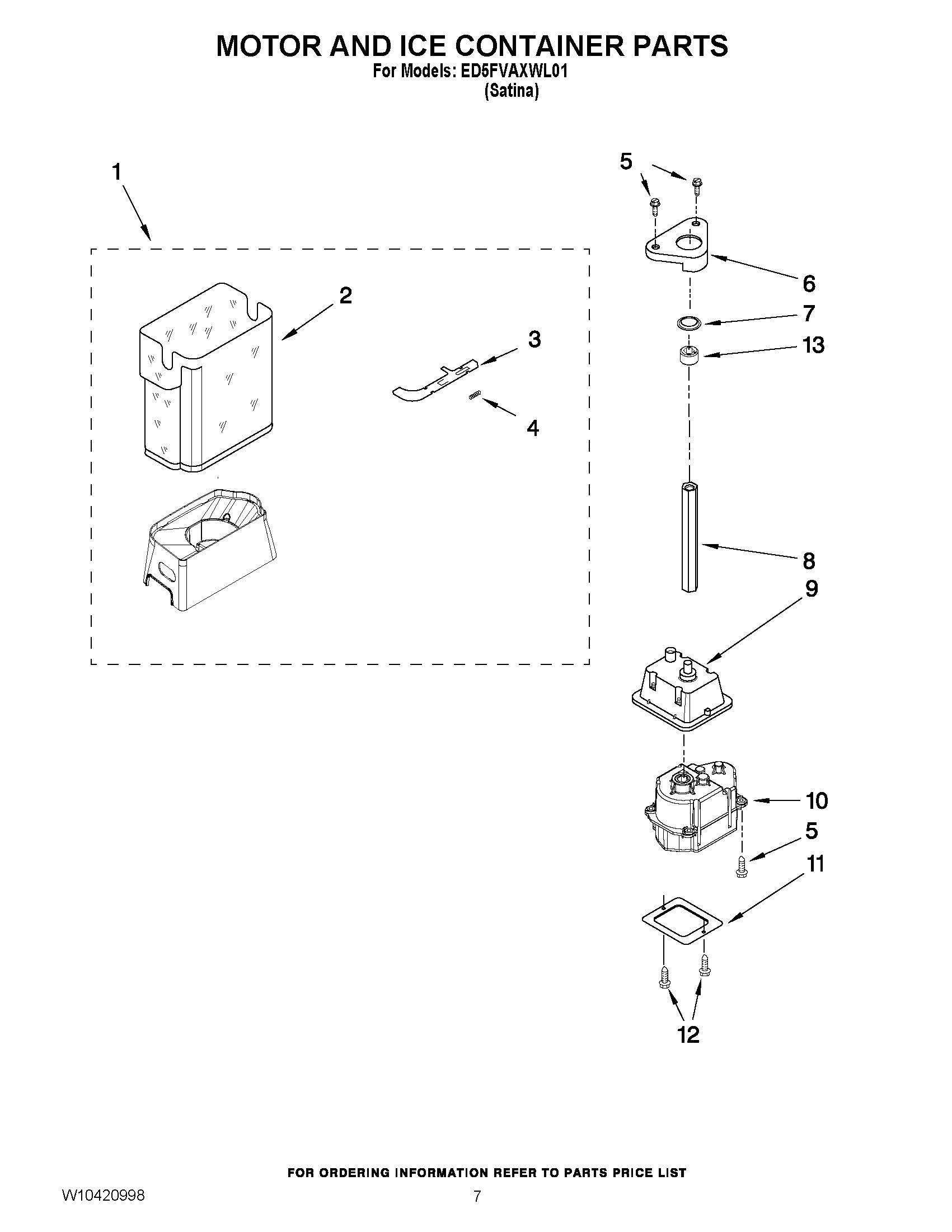

ED5FVAXWL01 05 – MOTOR AND ICE CONTAINER PARTS

ED5FVAXWL01 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

ED5FVAXWL01 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
2WP2198573 Whirlpool Refrigerator Ice Bin
3Latch, Bin
4WP2198608 Whirlpool Refrigerator Spring
5WP8281163 Whirlpool Refrigerator Screw
6WP2188919 Whirlpool Refrigerator Holder
7WP2198628 Whirlpool Door Seal
8WP2188917 Whirlpool Drive Shaft
9Enclosure, Motor
10W10822635 Whirlpool Refrigerator Ice Maker Dispenser Auger Drive Motor
11Cover
12WP489478 Whirlpool Refrigerator Screw
13WP2315559 Whirlpool Motor Coupling
100Ice Container (Complete)
←ED5GTQXKT01 01 – CABINET, LITERATURE
FFBD2404NW8C 04 – TUB→
