ED5FVAXWL01 07 – FREEZER DOOR PARTS

ED5FVAXWL01 07 – FREEZER DOOR PARTS

Written by

in

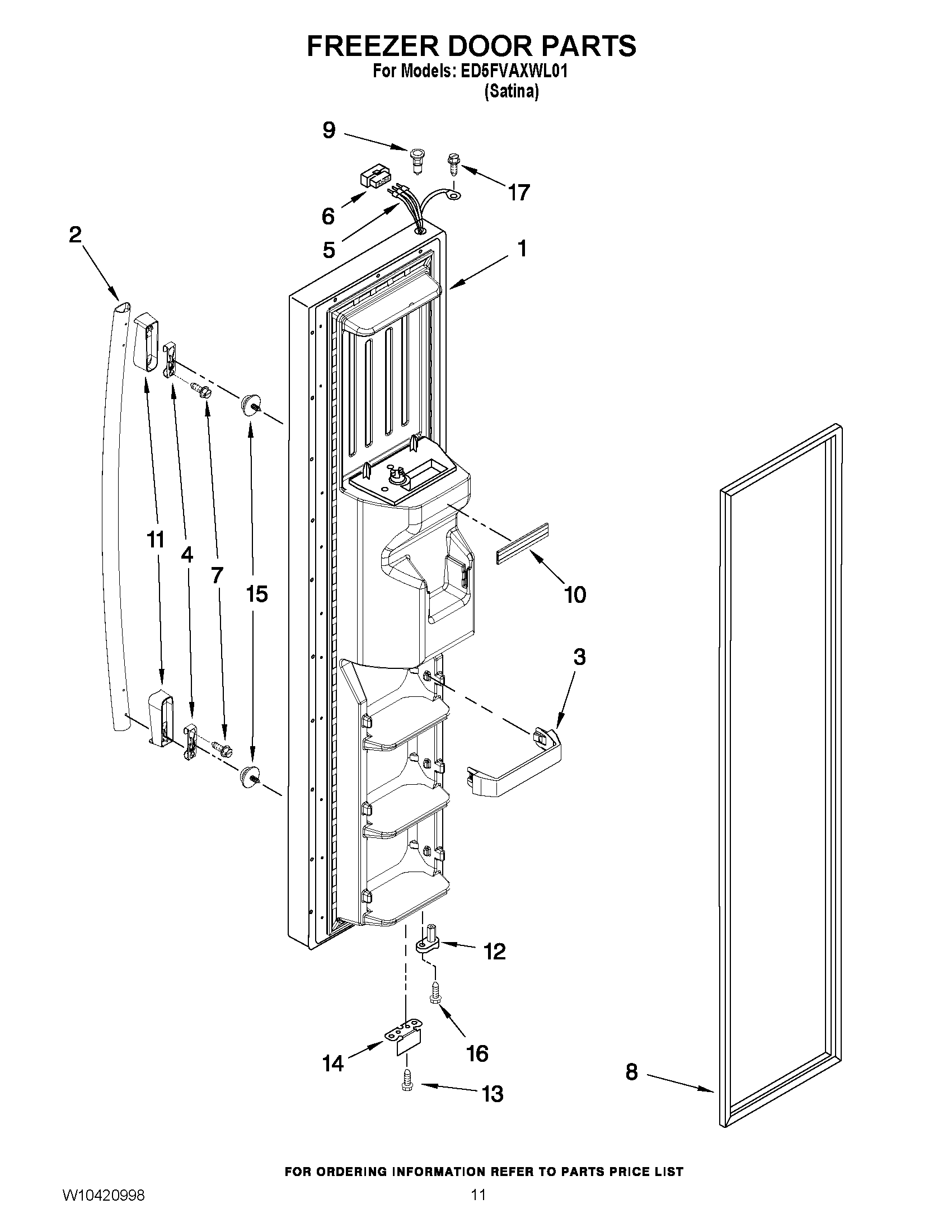

ED5FVAXWL01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Satina)
2WPW10257118K Whirlpool Refrigerator Handle
3WP2309718 Whirlpool Refrigerator Door Trim
4WP2255411 Whirlpool Refrigerator Clip
52198619 Whirlpool Refrigerator Wire Harness
6WP2154473 Whirlpool Refrigerator Connector
7W10267047 Whirlpool Screw
82159082 Whirlpool Freezer Door Gasket Black
9WP2182181 Whirlpool Refrigerator Thimble
10WPW10307490 Whirlpool Door Trim Assembly
11End Cap (Apollo Grey)
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Black)
15WPW10288153 Whirlpool Refrigerator Screw
16WP3400012 Whirlpool Refrigerator Screw
17WP489128 Whirlpool Refrigerator Screw
