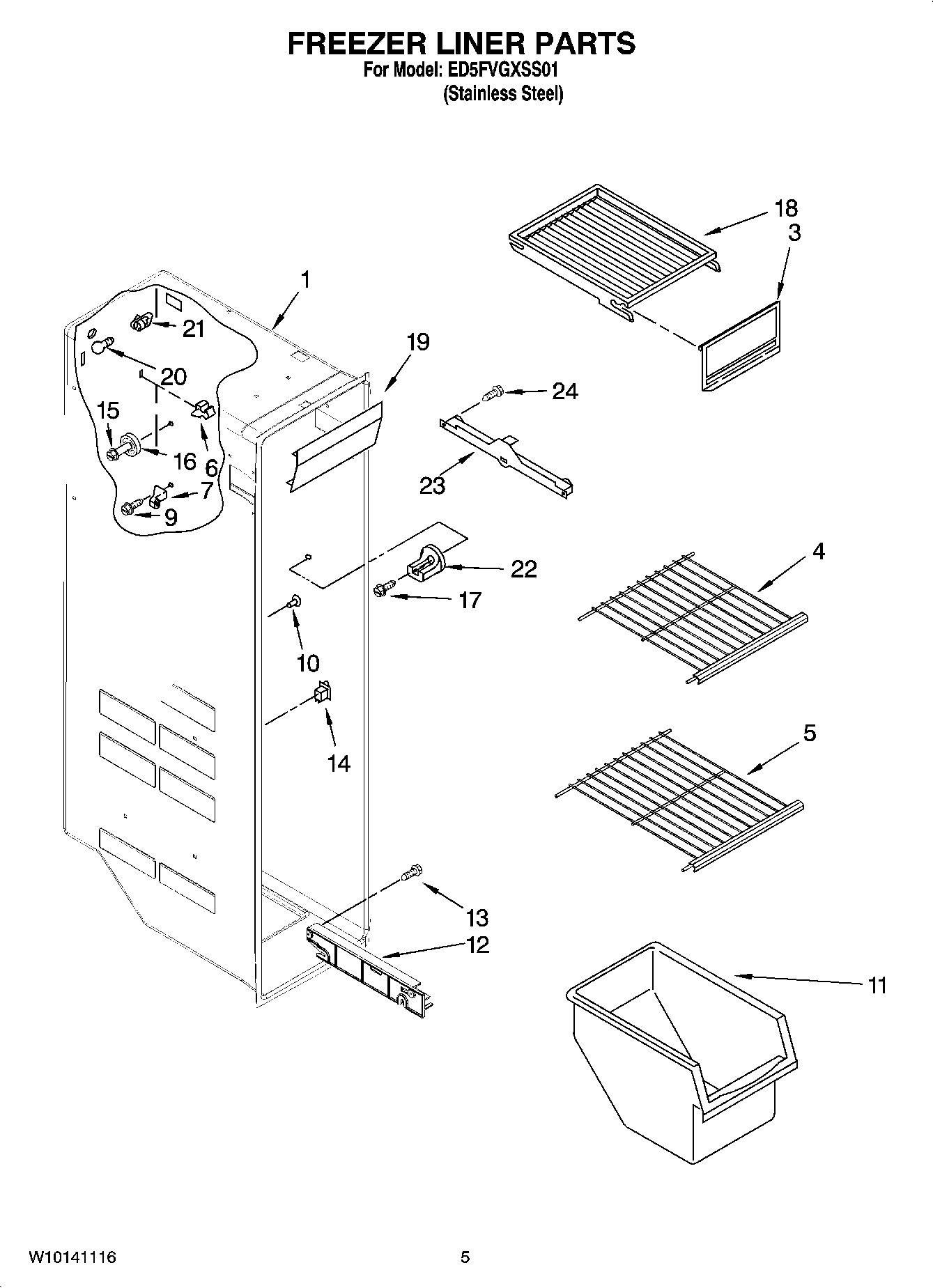

ED5FVGXSS01 04 – FREEZER LINER PARTS

ED5FVGXSS01 04 – FREEZER LINER PARTS

Written by

in

ED5FVGXSS01 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
3WP2171713 Whirlpool Refrigerator Ice Door
4WP2174267 Whirlpool Refrigerator Wire Shelf
5Shelf (2)
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
10Grommet
11WP2182971 Whirlpool Refrigerator Freezer Bin
12WP2261449 Whirlpool Refrigerator Track
12Slide, Basket (Left Side)
13W10759522 Whirlpool Screw
14W11457217 Whirlpool Refrigerator Rocker Switch Combination
15WP3400806 Whirlpool Screw
16WP2196483 Whirlpool Refrigerator Shelf Stud
17W10142289 Whirlpool Air Conditioner Screw
18Shelf, Top Compartment
192171705 Whirlpool Refrigerator Light Lens
20RANGE ONLY 40W 120V APPL BULB
214387478 Whirlpool Refrigerator Light Socket
22Stud, Rear
23W10845585 Whirlpool Refrigerator Track
23W10845583 Whirlpool Refrigerator Track
24718257 Whirlpool Dishwasher Screw
