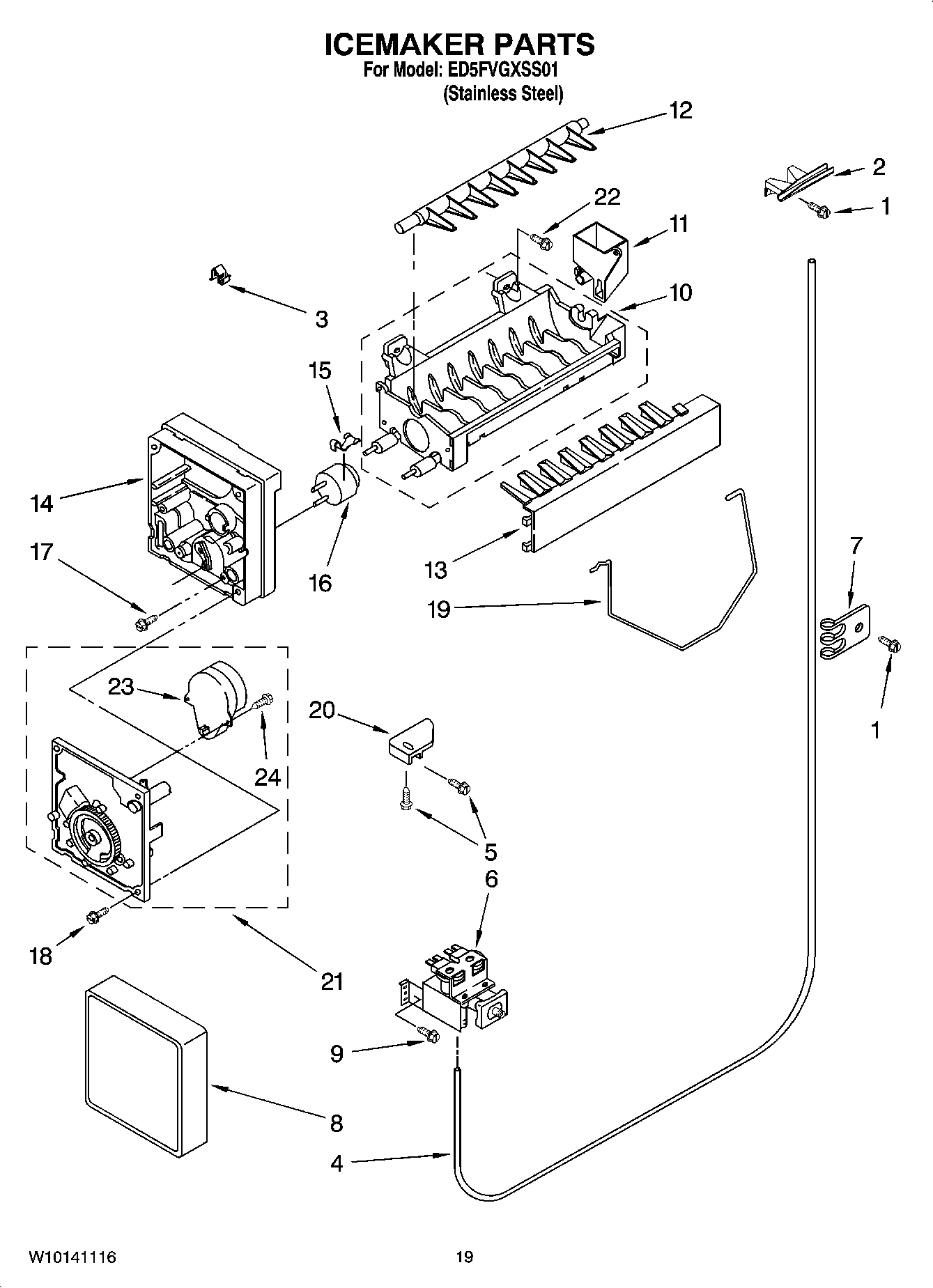

ED5FVGXSS01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ED5FVGXSS01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ED5FVGXSS01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
TORX SCREW WRENCH
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
350942 Whirlpool Spray Paint
WP542638 Whirlpool Refrigerator Grease
212643 Whirlpool Refrigerator Permagum Sealer
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799833
8171357 Whirlpool Spray Nozzle
Miscellaneous
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
WP505587 Whirlpool Refrigerator Sealer
4210463RW Whirlpool Refrigerator Coil Brush
PAINT, BULK (1 QT. GRAPHITE)
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP489478 Whirlpool Refrigerator Screw
6W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
7WP488366 Whirlpool Refrigerator Clamp
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11W10122561 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13WP2182124 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19W11342242 Whirlpool Refrigerator Ice Level Arm
20W11500948 Whirlpool Refrigerator Bracket
218201515 Whirlpool Refrigerator Motor and Gear Module Kit
22WP488163 Whirlpool Refrigerator Screw
23W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
24489136 Whirlpool Refrigerator Screw
100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
