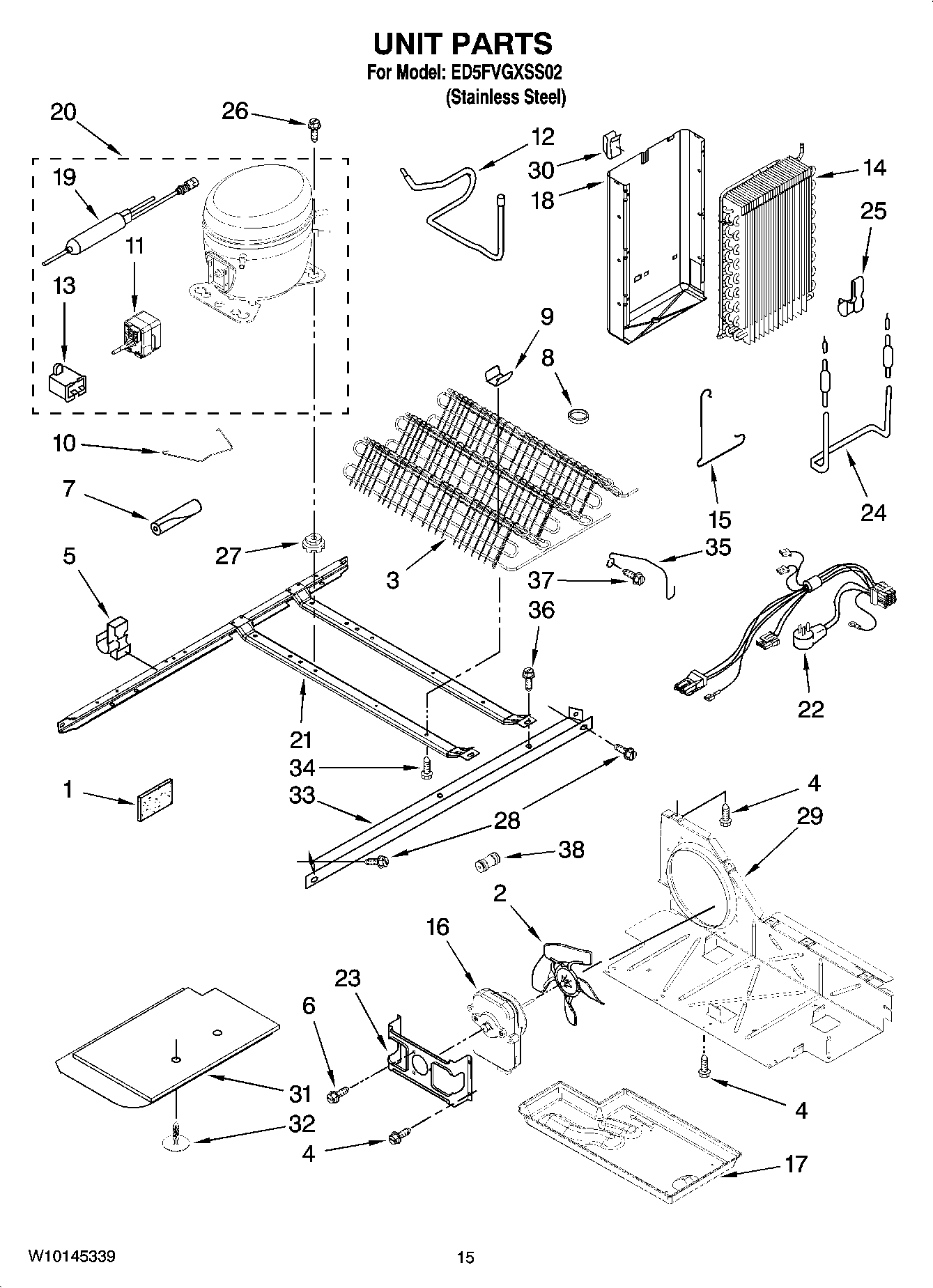

ED5FVGXSS02 09 – UNIT PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	Bushing, Compressor
9	W10683556 Whirlpool Refrigerator Clip
10	2212996 Whirlpool Refrigerator Retainer
11	WP2313162 Whirlpool Refrigerator Start Device
12	2313230 Whirlpool Tube
13	WP65889-4 Whirlpool Refrigerator Capacitor
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	WP2188823 Whirlpool Refrigerator Evaporator
15	Clamp
16	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
17	WPW10614158 Whirlpool Refrigerator Evaporator Tray
18	Heat Shield
19	WPW10143759 Whirlpool Dryer Filter
19	W10843121 Whirlpool Refrigerator Tube
20	Compressor (Includes Items 11,12,13,14,15, 29 & 32) (Also Order 482801 Installation Kit & 876765 Tube Kit)
21	2304904 Whirlpool Frame Assembly
22	Unit, Harness
23	WP2181929 Whirlpool Refrigerator Bracket
24	WP2323198 Whirlpool Refrigerator Heater
25	W11623163 Whirlpool Refrigerator Clip
26	876811 Whirlpool Grommet
27	WP4387558 Whirlpool Refrigerator Compressor Grommet
28	489340 Whirlpool Refrigerator Screw
29	W10896764 Whirlpool Refrigerator Air Baffle
30	Clip, Heat Shield
31	Unit Cover, Bottom
32	489396 Whirlpool Refrigerator Clip
33	2305374 Whirlpool Refrigerator Unit Rail
34	W11544659 Whirlpool Refrigerator Screw
35	2260517 Whirlpool Fan Guard
36	WP489427 Whirlpool Refrigerator Screw
37	WPW10141625 Whirlpool Refrigerator Screw Assembly
38	Following Parts Not Illustrated and Optional Parts Not Included
38	VALVE, ACCESS (5/8“)
38	WPW10334458 Whirlpool Refrigerator Connector
38	876764 Whirlpool Refrigerator Primary Valve
38	978027 Whirlpool Refrigerator Primary Valve
38	978030 Whirlpool Refrigerator Valve
38	WP978025 Whirlpool Refrigerator Valve
38	VALVE, ACCESS (1/2“)
38	978026 Whirlpool Refrigerator Primary Valve
38	REFRIGERANT CHARGE 5.0 oz. (R-134A)
