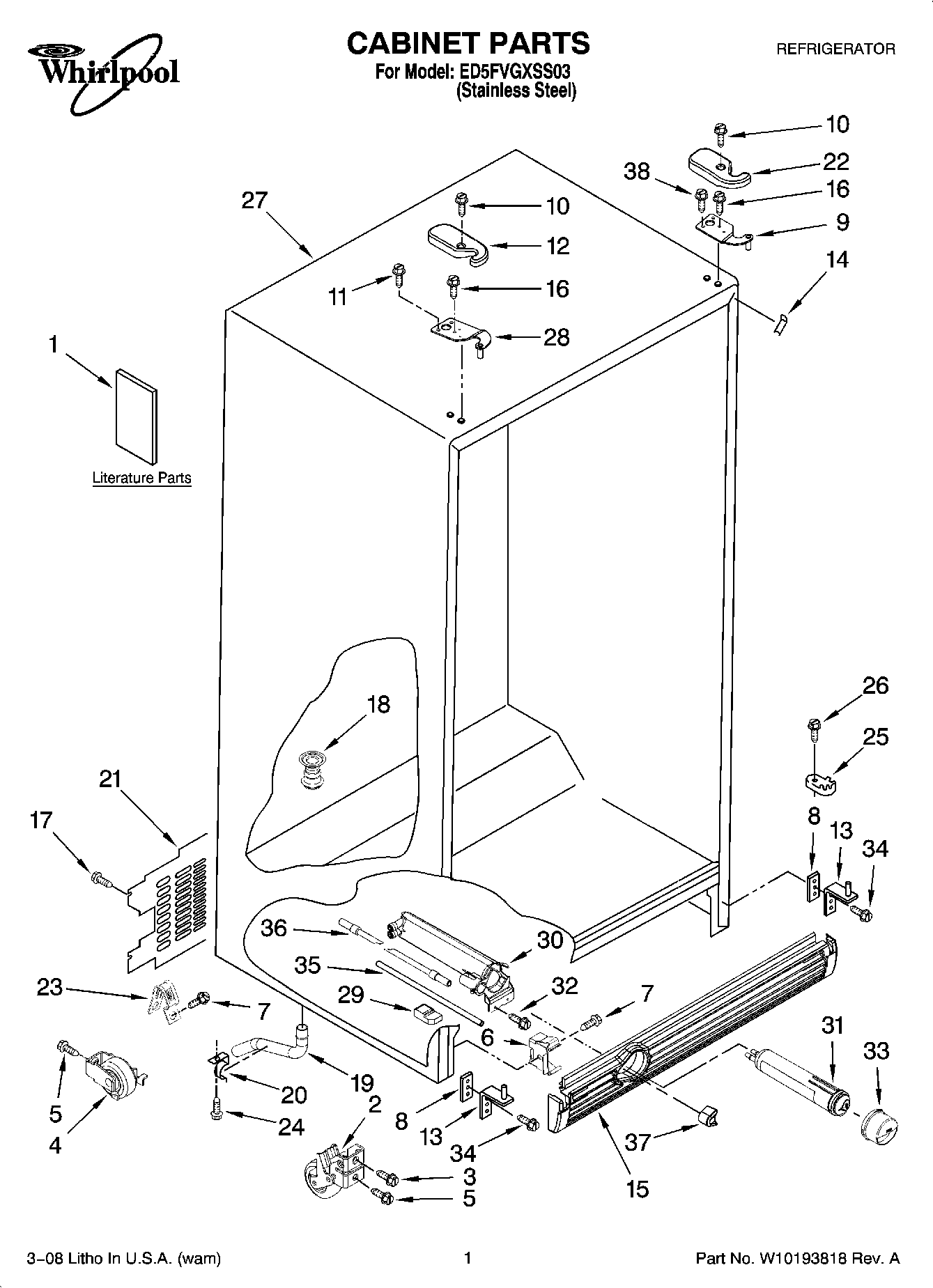

ED5FVGXSS03 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
12	WP2203407B Whirlpool Refrigerator Cover
13	W10138965 Whirlpool Refrigerator Door Hinge
14	Filler, Wrapper (Black)
15	WPW10311033 Whirlpool Refrigerator Grille
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188755 Whirlpool Rear Panel
22	WP2203408B Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	Cabinet, (Not A Serviceable Part)
28	WP2203770 Whirlpool Refrigerator Door Hinge
29	Block, Housing Support
30	WPW10121138 Whirlpool Refrigerator Water Filter Housing
31	FILTER 3-SINGLE TEAL
32	WP489500 Whirlpool Refrigerator Screw
33	WP2260518B Whirlpool Water Filter Cap
34	WP489497 Whirlpool Screw
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
37	WP2260503B Whirlpool Refrigerator Button
38	W10853301 Whirlpool Refrigerator Screw
