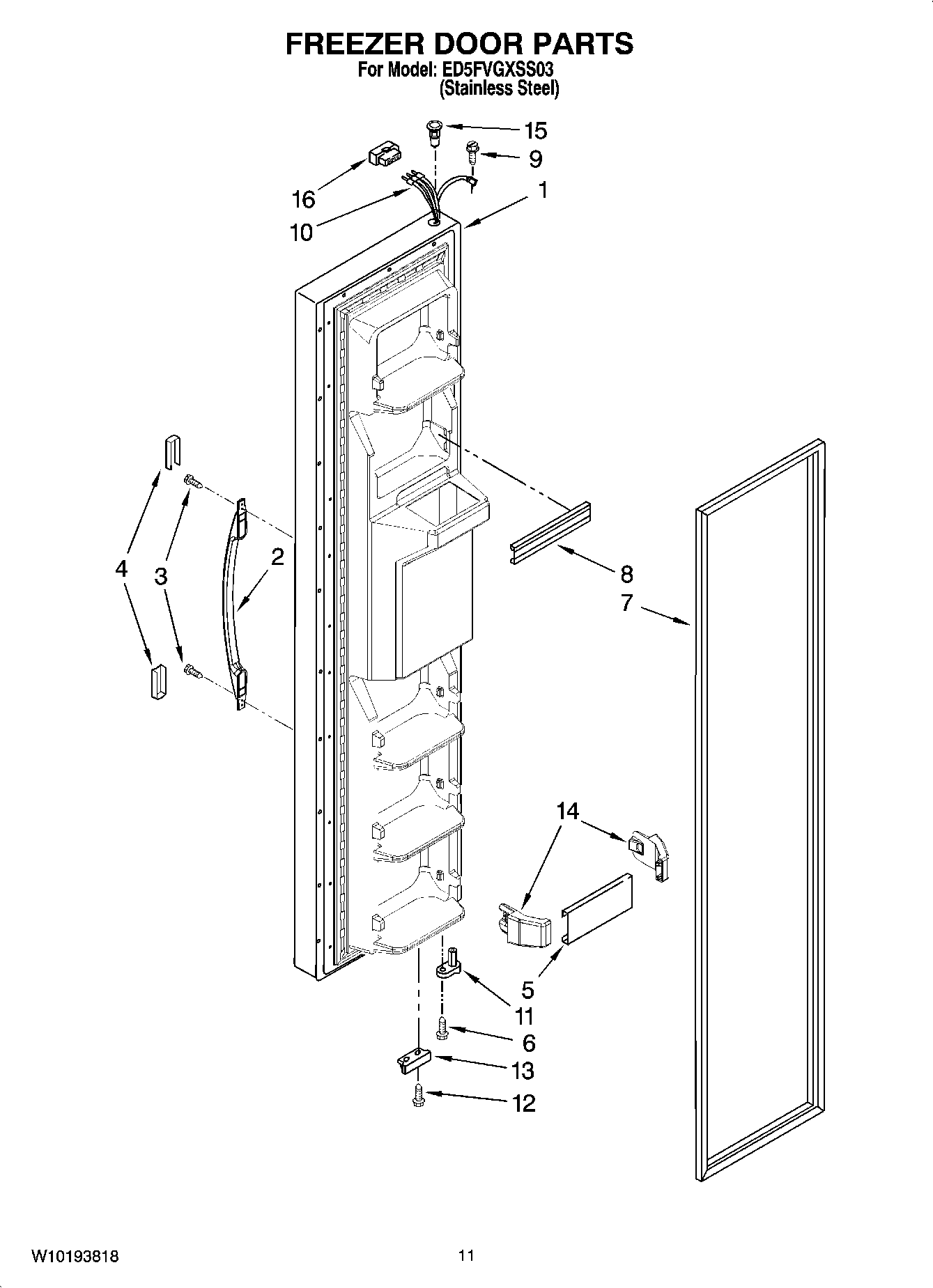

ED5FVGXSS03 07 – FREEZER DOOR PARTS

ED5FVGXSS03 07 – FREEZER DOOR PARTS

Written by

in

ED5FVGXSS03 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2WP2186649B Whirlpool Refrigerator Handle
3WP489491 Whirlpool Refrigerator Screw
4Cover, Trim (Black)
52313199 Whirlpool Refrigerator Door Trim
6WP3400012 Whirlpool Refrigerator Screw
72159082 Whirlpool Freezer Door Gasket Black
8WPW10307490 Whirlpool Door Trim Assembly
9WP489128 Whirlpool Refrigerator Screw
102311641 Whirlpool Refrigerator Wire Harness
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14WP2195917K Whirlpool Refrigerator Endcap
15WP2182181 Whirlpool Refrigerator Thimble
16Connector
