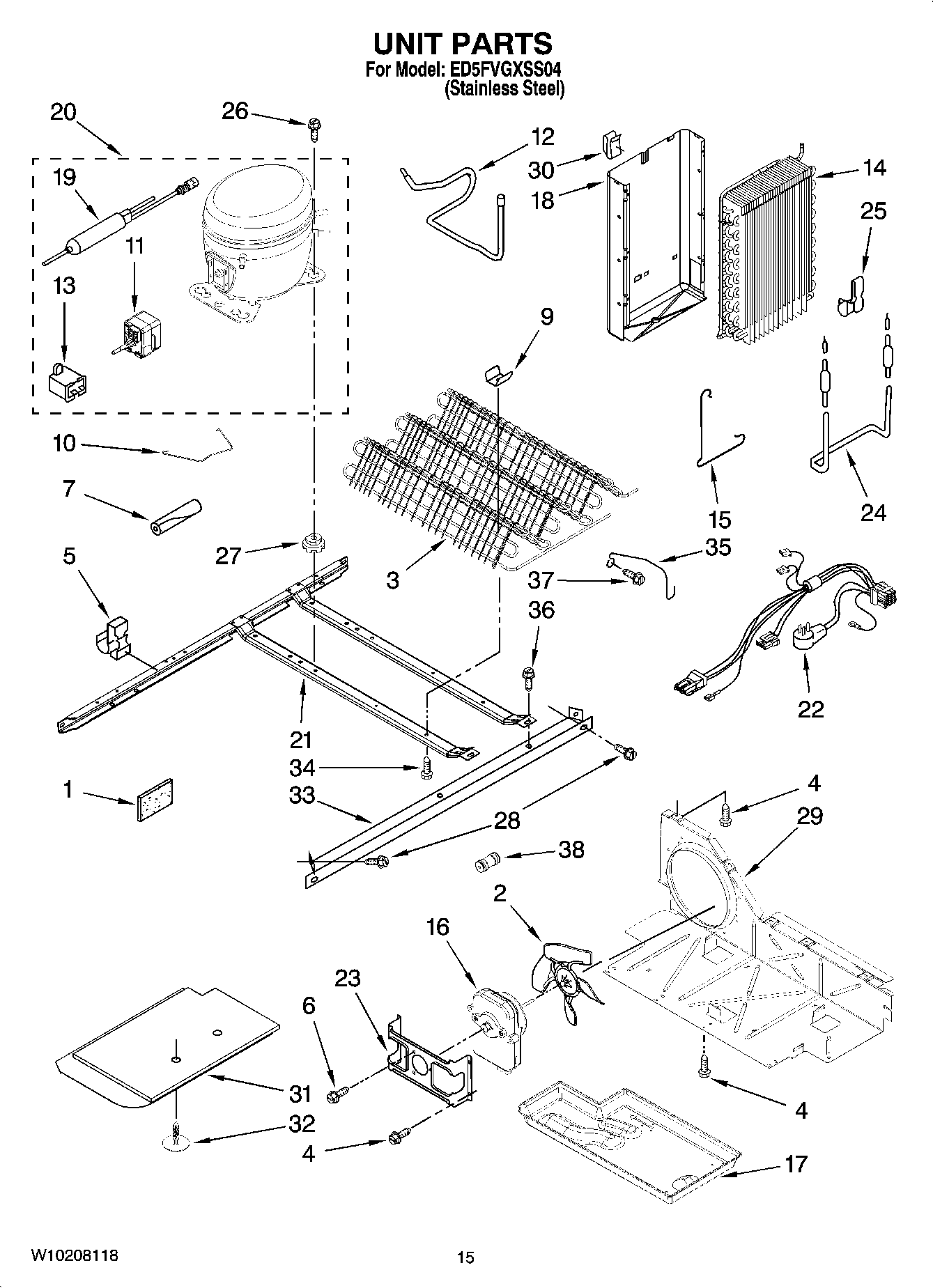

ED5FVGXSS04 09 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
9	W10683556 Whirlpool Refrigerator Clip
10	2223313 Whirlpool Clip
11	WP2304885 Whirlpool Refrigerator Start Device
12	WP2205765 Whirlpool Refrigerator Tube
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	WP2188823 Whirlpool Refrigerator Evaporator
15	Clamp
16	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
17	WPW10614158 Whirlpool Refrigerator Evaporator Tray
18	Heat Shield
19	WPW10143759 Whirlpool Dryer Filter
20	W10139460 Whirlpool Refrigerator Compressor
21	2304904 Whirlpool Frame Assembly
22	Unit, Harness
23	WP2181929 Whirlpool Refrigerator Bracket
24	WP2323198 Whirlpool Refrigerator Heater
25	W11623163 Whirlpool Refrigerator Clip
26	876811 Whirlpool Grommet
27	WP4387558 Whirlpool Refrigerator Compressor Grommet
28	489340 Whirlpool Refrigerator Screw
29	W10896764 Whirlpool Refrigerator Air Baffle
30	Clip, Heat Shield
31	Unit Cover, Bottom
32	489396 Whirlpool Refrigerator Clip
33	2305374 Whirlpool Refrigerator Unit Rail
34	W11544659 Whirlpool Refrigerator Screw
35	2260517 Whirlpool Fan Guard
36	WP489427 Whirlpool Refrigerator Screw
37	WPW10141625 Whirlpool Refrigerator Screw Assembly
38	WPW10334458 Whirlpool Refrigerator Connector
