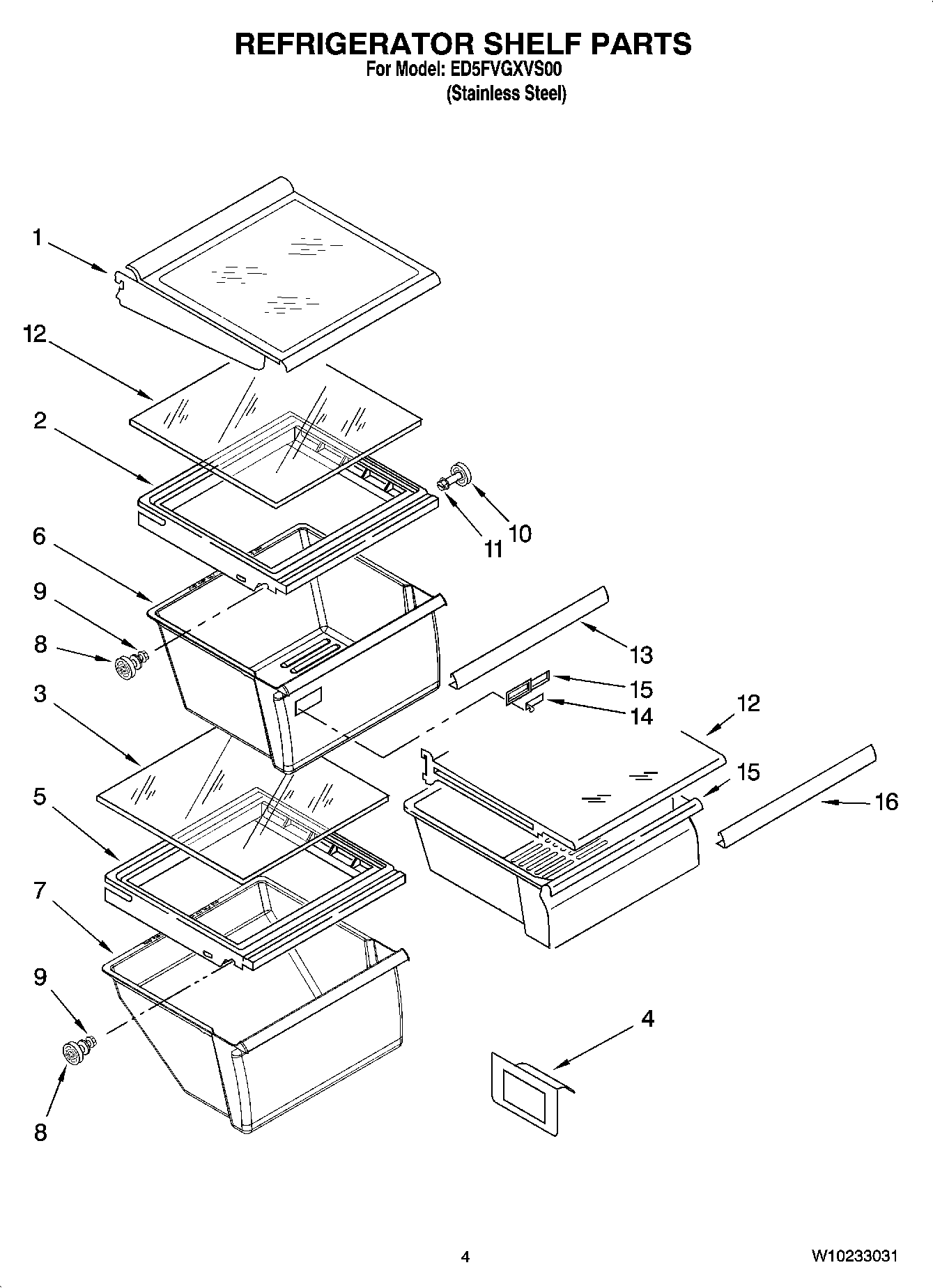

ED5FVGXVS00 03 – REFRIGERATOR SHELF PARTS

ED5FVGXVS00 03 – REFRIGERATOR SHELF PARTS

Written by

in

ED5FVGXVS00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf Assembly, Spillguard (2)
2W10508993 Whirlpool Refrigerator Cover Pan
3W10864399 Whirlpool Glass Shelf
42179350 Whirlpool Refrigerator Deflector
6PAN-CRISPR
7WP2188664 Whirlpool Dishwasher Meat Crisper Pan
8W11223328 Whirlpool Refrigerator Shelf Stud
9WP3-24004-109 Whirlpool Refrigerator Screw
10WP2196483 Whirlpool Refrigerator Shelf Stud
11WP3400806 Whirlpool Screw
12Shelf, Snack Bin
13WP2179234 Whirlpool Refrigerator Pan Trim
14WP2179342 Whirlpool Refrigerator Slide
15W11497323 Whirlpool Snack Pan
16WP2179243 Whirlpool Refrigerator Pan Trim
17WP2179343 Whirlpool Refrigerator Control Body
