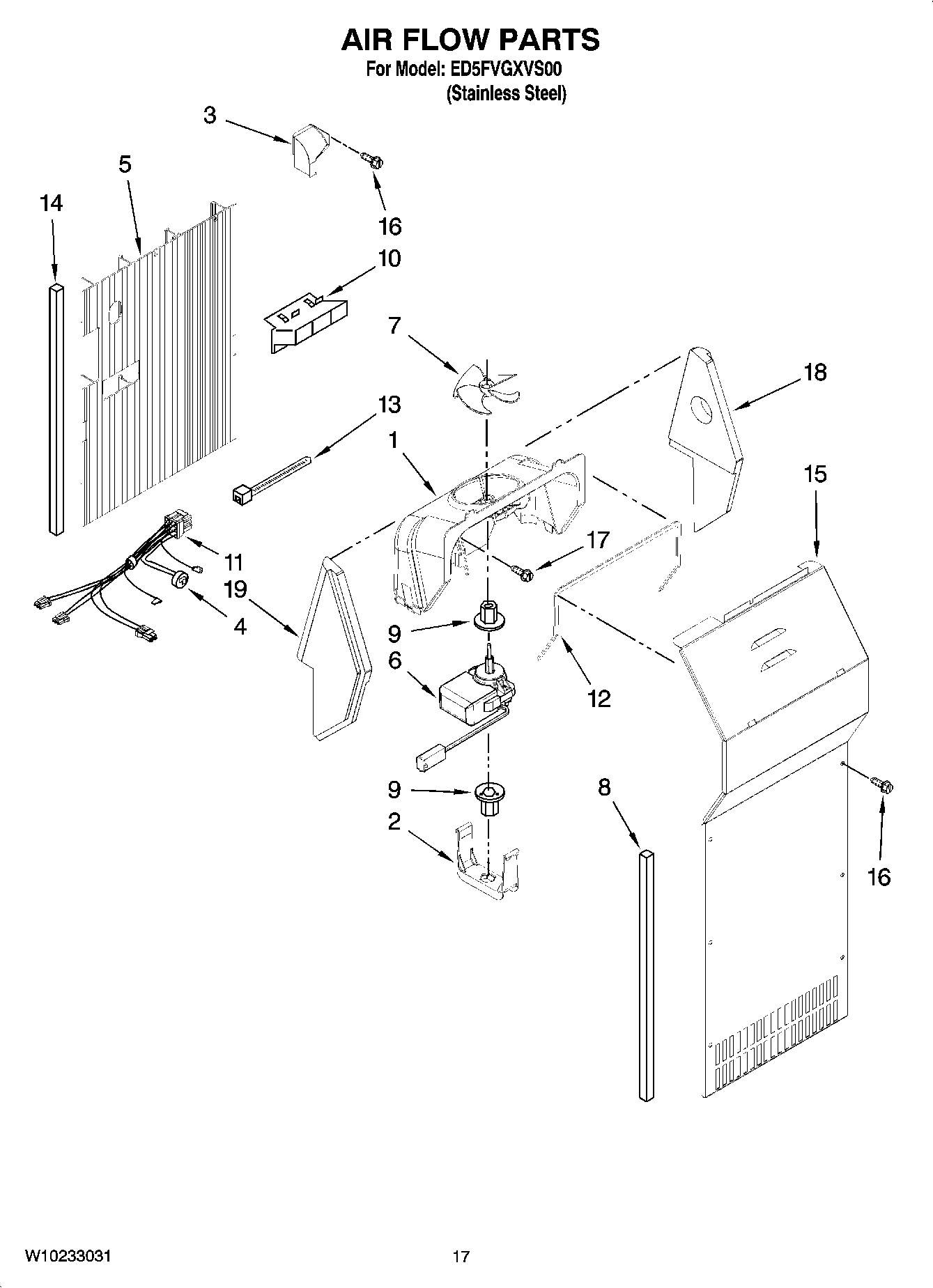

ED5FVGXVS00 10 – AIR FLOW PARTS

ED5FVGXVS00 10 – AIR FLOW PARTS

Written by

in

ED5FVGXVS00 10 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3W10803597 Whirlpool Refrigerator Air Scoop
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5Air Duct Freezer
6MOTOR-EVAP
7WP2169142 Whirlpool Fan Blade
8WP2304241 Whirlpool Refrigerator Gasket
9WP2176759 Whirlpool Refrigerator Grommet
102182146 Whirlpool Refrigerator Duct
11W11225843 Whirlpool Refrigerator Wire Harness
12WP2155789 Whirlpool Refrigerator Gasket
13WPW10339879 Whirlpool Wire Tie
144388500 Whirlpool Refrigerator Gasket
15Cover, Evaporator
164389654 Whirlpool Screw
17WP489478 Whirlpool Refrigerator Screw
184388358 Whirlpool Refrigerator Support Bracket
