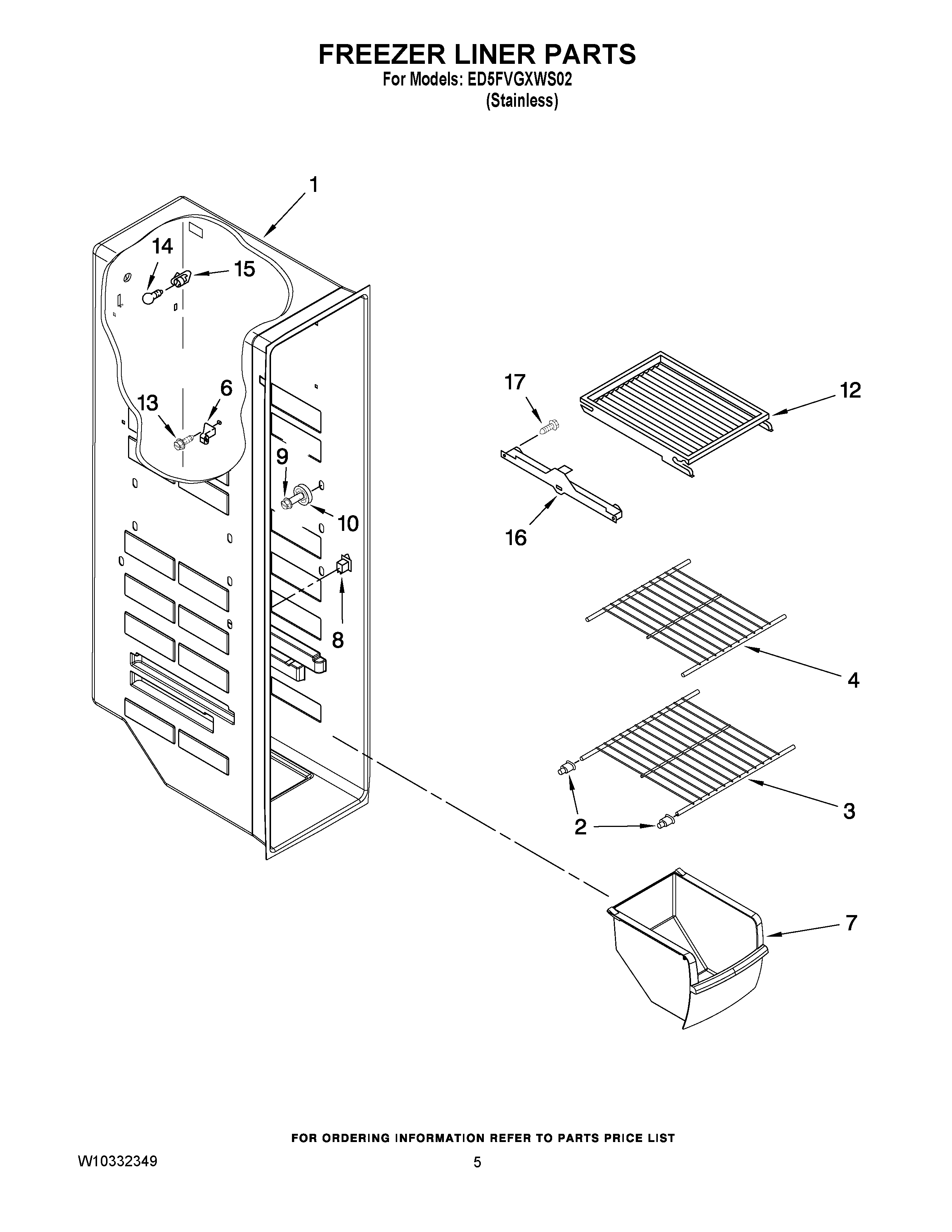

ED5FVGXWS02 04 – FREEZER LINER PARTS

ED5FVGXWS02 04 – FREEZER LINER PARTS

Written by

in

ED5FVGXWS02 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11527119 Whirlpool Refrigerator Shelf Stud
3WP2174267 Whirlpool Refrigerator Wire Shelf
4Shelf (2)
64388405 Whirlpool Refrigerator Shelf Stud
7WP2182971 Whirlpool Refrigerator Freezer Bin
8W11457217 Whirlpool Refrigerator Rocker Switch Combination
9WP3400806 Whirlpool Screw
10Stud, Rear
12Shelf, Top Compartment
13W10142289 Whirlpool Air Conditioner Screw
14RANGE ONLY 40W 120V APPL BULB
154387478 Whirlpool Refrigerator Light Socket
16W10845583 Whirlpool Refrigerator Track
16W10845585 Whirlpool Refrigerator Track
17718257 Whirlpool Dishwasher Screw
